dji M300 - Route PPK-to-Hotshoe Cable

Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3
3

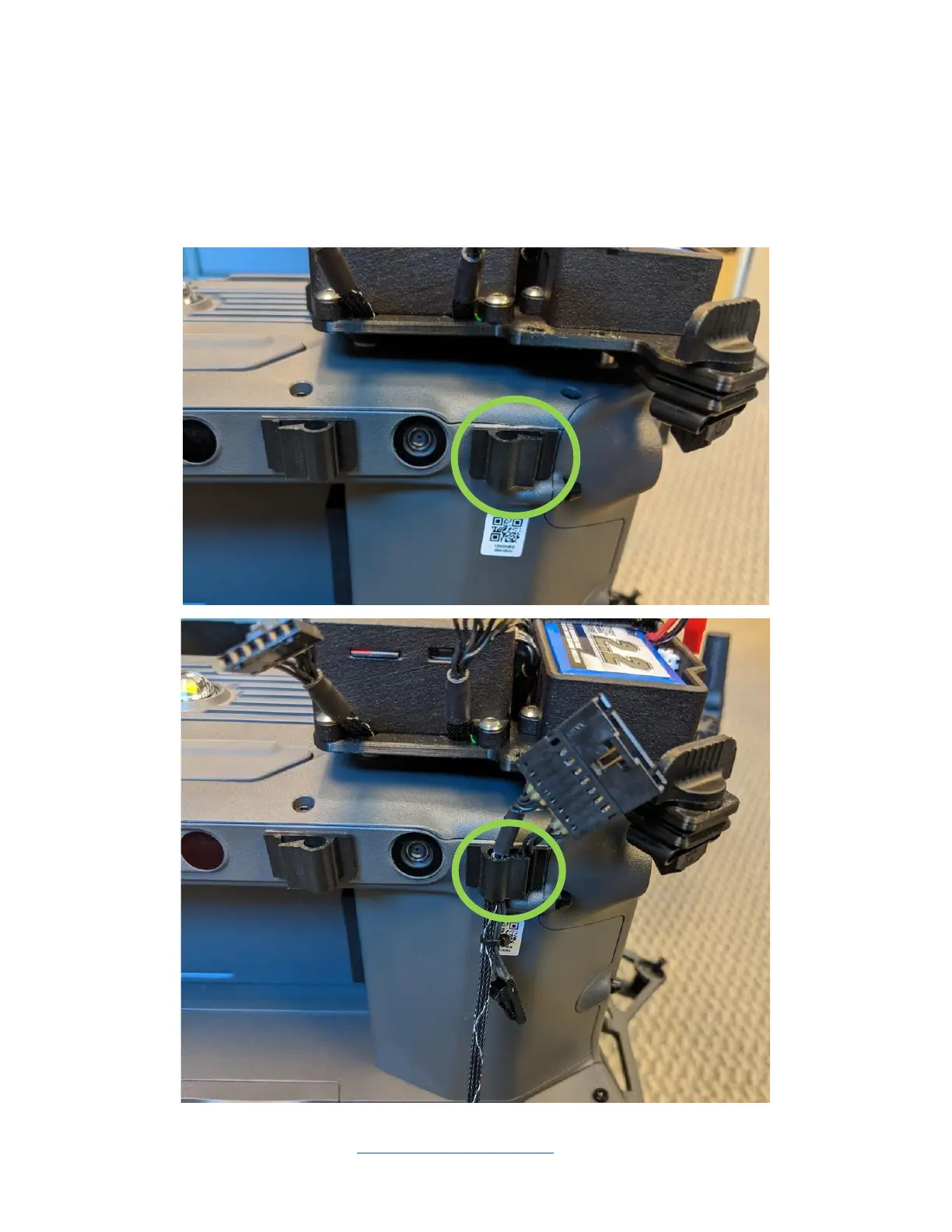

3. Attach the cable routing clip in the location shown and route the GeoSnap PPK-to-
hotshoe module cable through the clip.
(The left cable routing clip pictured but not circled is only used when interfacing with
the Auxiliary 6-pin connector for specialized integrations or when using MicaSense
cameras.)
