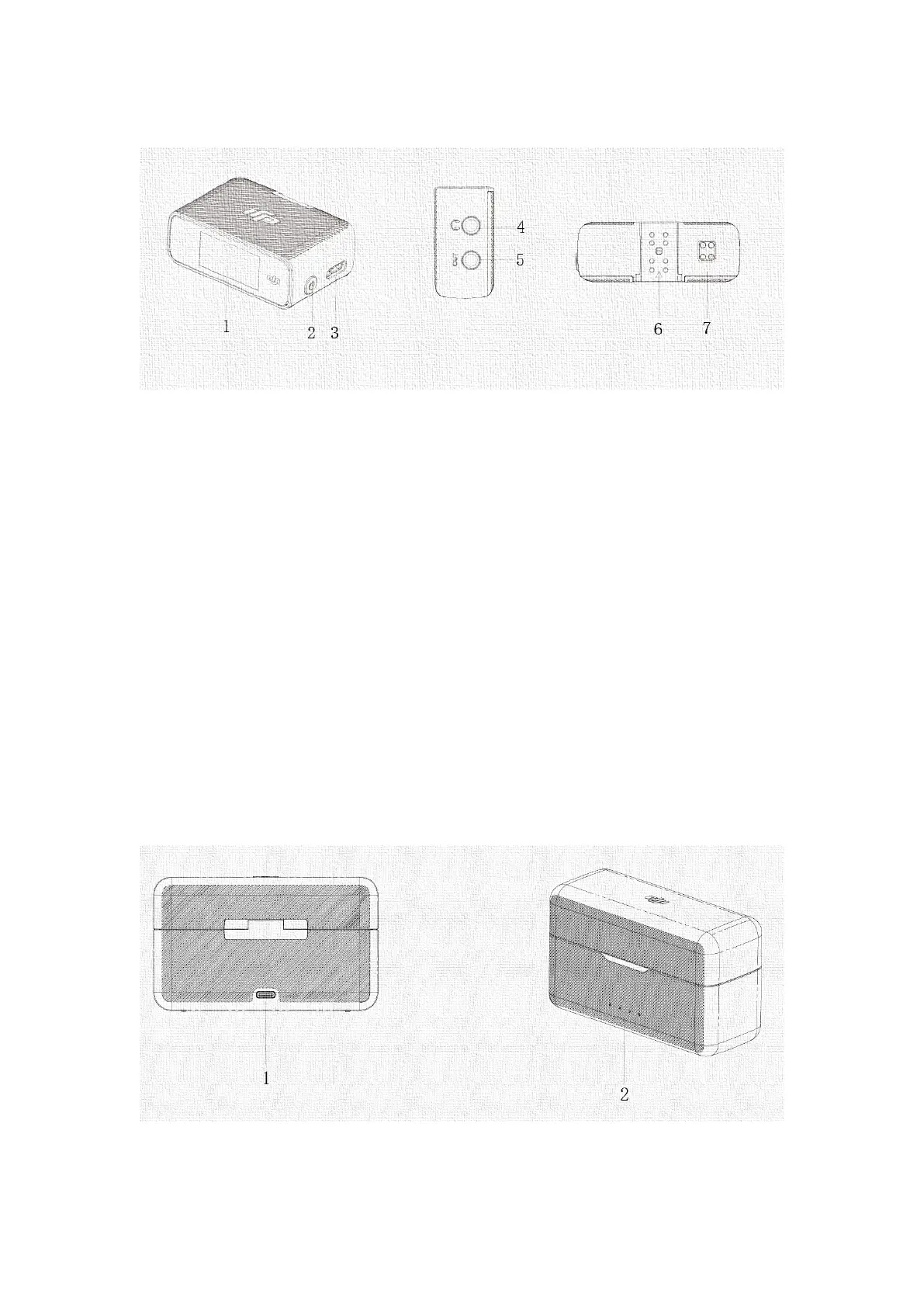

DJI MIC Receiver
1. Touchscreen
Display the gain, wireless signal, battery level, record status, channel, and etc. Swipe down
or up from the touchscreen to access settings.
2. Power Button
Press and hold to power on/off.
3. Charging and Data Port (USB-C)
For charging and firmware updating.
4. Headphone Port
Monitor the sound input of transmitter using a headphone.
5. 3.5 mm TRS Output
6. Expansion Port
Attach the receiver to the mobile phone via the expansion port using a phone connector,
and attach the receiver to a camera using a L adapter via the expansion port and the TRS
cable.
10. Charging Dot
Connecting with the charging dot in the charging case to begin charging.
Charging Case
1. USB-C Port
Charge the charging case via the USB-C port.

Other manuals for dji MIC

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the dji MIC and is the answer not in the manual?

dji MIC Specifications

General IconGeneral
Battery Life5.5 hours
Dimensions47.3 × 30.4 × 20.0 mm
Weight30 g
ConnectionsUSB-C, 3.5mm TRS
Battery Capacity320 mAh
Operating Frequency2.4 GHz
Frequency Response20 Hz to 20 kHz
Operating Range250 m (open area)
CompatibilityCameras, Smartphones
Frequency Range2400 to 2483.5 MHz
Operating Distance250 m (open area)
Power SupplyBuilt-in Battery
Audio Input3.5mm TRS
