Remote Controller
The remote controller allows you to control your Phantom 3 SE at distances up to 2.5 mi (4 km)*. Built into the remote
controller is a rechargeable LiPo battery and Wi-Fi video downlink, which when paired with a compatible mobile
device gives you a live HD view from the Phantom’s camera.

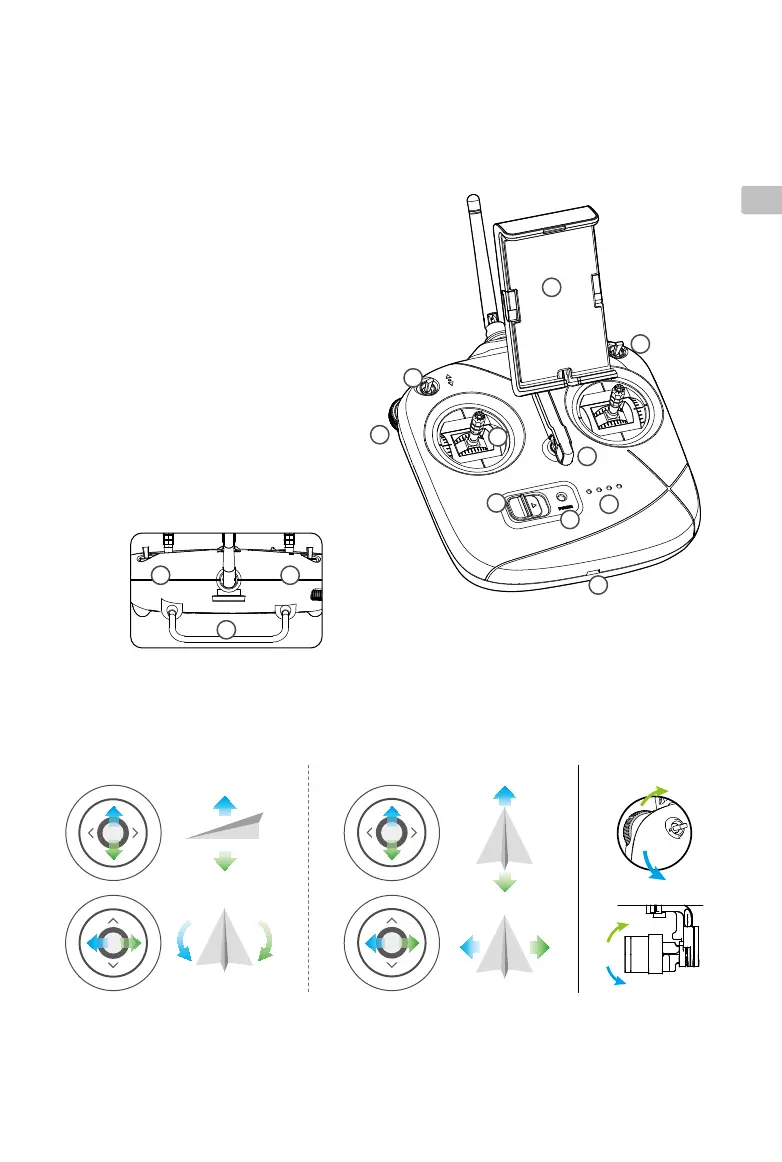

1. Power Switch
2. Status LED
3. Battery Level LEDs
4. Lanyard Loop
5. Control Sticks
6. Switch S1
7. Mobile Device Holder
8. Switch S2
9. Gimbal Dial
10. Micro USB Port
11. Built-in Antennas
12. Handle Bar
Here are the default ight controls (Mode 2). The left stick controls the aircraft’s altitude and heading, while the right stick
controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt.
Left Stick Right Stick
U
P
D
o
w
n
T
u
r
n
R
i
g
h
t
T
u
r
n
L
e
f
t
F
o
r
w
a
r
d
B
a
c
k
w
a
r
d
R
i
g
h
t
L
e
f
t
Gimbal Dial
* The remote controller can reach its maximum transmission distance of 2.5 mi (4 km) in wide open areas with minimal magnetic
interference and at an altitude of about 400 feet (120 meters) while FCC compliant.
