Remote Controller
The powerful remote controller of the Phantom 4 Advanced+ has a transmission range extending up to 4.3 mi (7
km)*. It features physical buttons and dials to control exposure, camera tilt, photo capture and video recording.
Built into the remote controller is DJI LIGHTBRIDGE
TM
, providing a live HD view from the Phantom camera directly on
the display. An internal battery ensures a long battery life and ease of use.

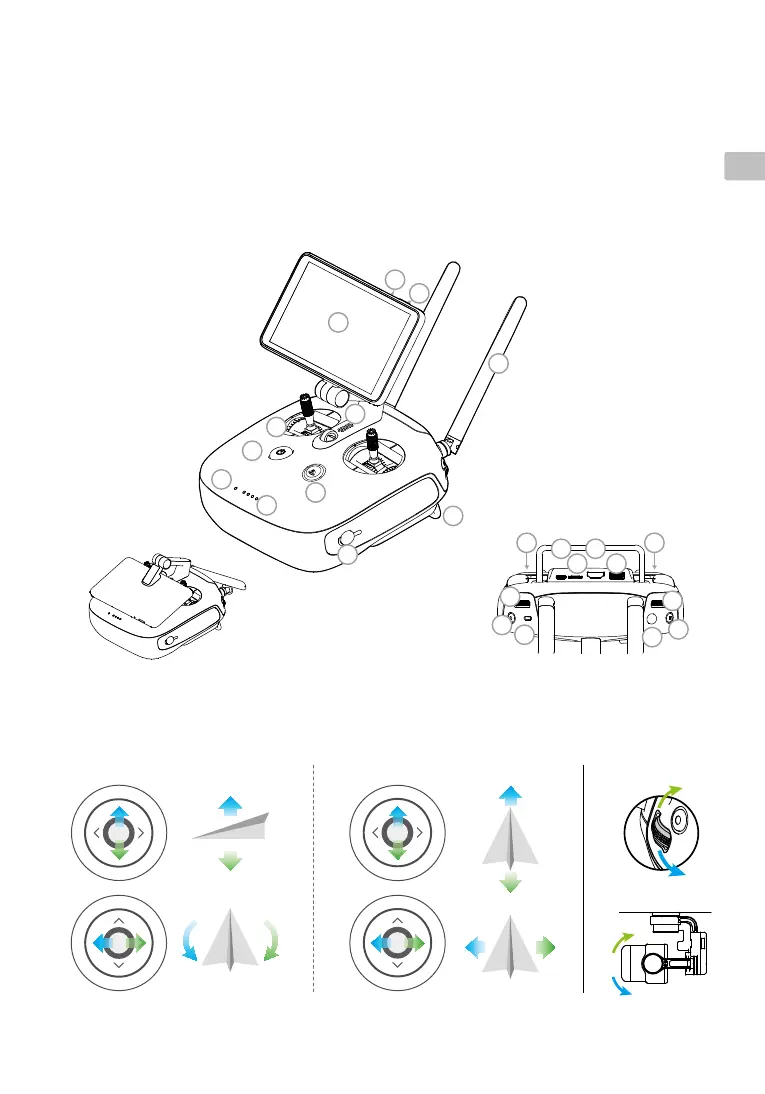

1. Power Button
2. Return-to-Home
(RTH) Button
3. Control Sticks
4. Speaker
5. Status LED
6. Battery Level LEDs
7. Power Port
8. Display Screen
9. Sleep/Wake Button
10. Microphone
11. Antennas
12. Handle Bar
Folded
The default ight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right
stick controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt.
13. Gimbal Dial
14. Camera Settings Dial
15. Record Button
16. Flight Mode Switch
17. Shutter Button
18. Intelligent Flight Pause
Button
19. C1 and C2 Buttons
(customizable)
20. Micro USB Port
21. HDMI Port
22. Micro SD Card Slot
23. USB Port
Left Stick Right Stick
U
P
D
o
w
n
T
u
r
n
R
i
g
h
t
T
u
r
n
L
e
f
t
F
o
r
w
a
r
d
B
a
c
k
w
a
r
d
R
i
g
h
t
L
e
f
t
Gimbal Dial
* The remote controller is able to reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic
Interference, and at an altitude of about 400 feet (120 meters).

dji Phantom 4 Advanced + Specifications

General

Camera Sensor	1-inch CMOS
Effective Pixels	20 MP
Max Flight Time	Approx. 30 minutes
Max Descent Speed	4 m/s
Operating Temperature Range	0°C to 40°C
GPS Mode	GPS/GLONASS
Camera Max Video Bitrate	100 Mbps
Remote Controller Battery	6000 mAh LiPo 2S
Gimbal	3-axis (pitch, roll, yaw)
Battery Capacity	5870 mAh
Max Video Resolution	4K at 60fps
Max Speed	72 kph (Sport mode)
Transmission Range	7 km (FCC), 3.5 km (CE)
Obstacle Sensing System	Forward
Max Ascent Speed	6 m/s (Sport mode)
Camera Lens	FOV 84°, 8.8 mm (24 mm equivalent)
Camera ISO Range	100-3200 (video), 100-12800 (photo)
Camera Still Photography Modes	Single, Burst, Auto Exposure Bracketing, Interval
Camera Video Recording Modes	H.264
Gimbal Controllable Range	Pitch: -90° to +30°
Remote Controller Operating Frequency	2.400 - 2.483 GHz and 5.725 - 5.850 GHz
Remote Controller Max Transmission Distance	7 km (FCC), 3.5 km (CE)
Mobile Device Holder	Tablets and smartphones
Internal Storage	None (requires microSD card)
Remote Controller	Included (GL300E)
