dji Phantom 4 Pro V2.0 User Manual

1. 1. Power Button
2. Return-to-Home (RTH) Button
3. Control Sticks
4. Speaker
5. Status LED
6. Battery Level LEDs
7. Power Port
8. Display Screen
9. Sleep/Wake Button
10. Microphone
11. Antennas
12. Handle Bar
13. Gimbal Dial
14. Camera Settings Dial
15. Record Button
16. Flight Mode Switch
17. Shutter Button
18. Intelligent Flight Pause
19. C1 and C2 Buttons (customizable)
20. Micro USB Port
21. HDMI Port
22. Micro SD Card Slot
23. USB Port

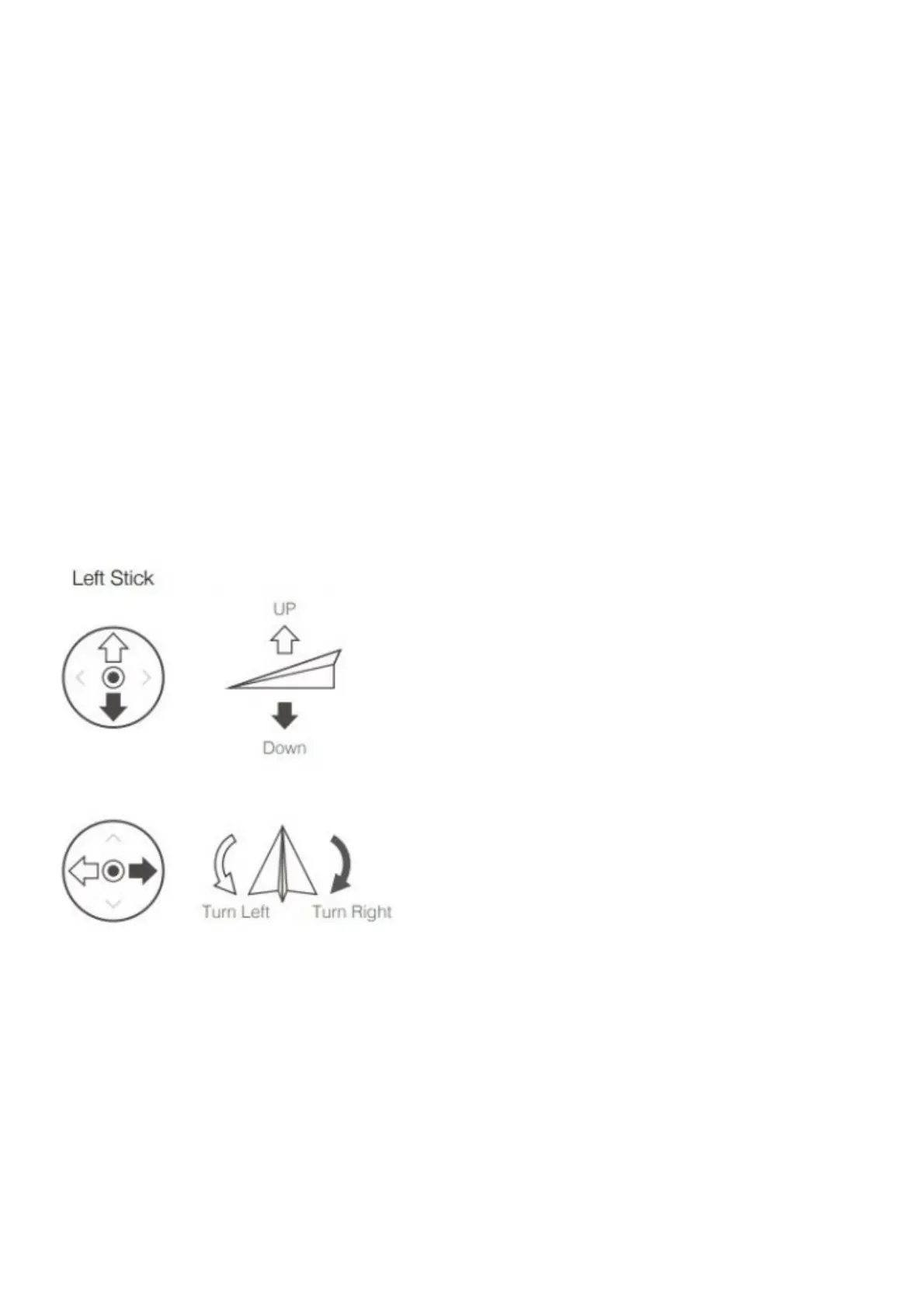

The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right stick
controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt.

dji Phantom 4 Pro V2.0 Specifications

General

Type	Quadcopter
Product color	White
Maximum speed	72 m/s
Frequency band	2.400 - 2.483/5.725 - 5.850 GHz
GPS (satellite)	Yes
Number of rotors	4 rotors
Integrated sensors	Infrared (IR) sensor
Maximum tilt angle	42 °
Maximum flight time	30 min
Maximum ascent speed	6 m/s
Maximum descent speed	4 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.1 m
Horizontal hover accuracy	0.3 m
Maximum operating distance	7000 m
Built-in processor	-
Operating temperature (T-T)	0 - 40 °C
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1280 x 720, 1920 x 1080, 2720 x 1530, 3840 x 2160, 4096 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1 \
Camera shutter speed	8 - 1/8000 s
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum video resolution	4096 x 2160 pixels
Field of view (FOV) angle	84 °
Bitrate at maximum video resolution	100 Mbit/s
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
AC adapter power	100 W
AC adapter input voltage	17.4 V
Battery voltage	15.2 V
Battery capacity	5870 mAh

Weight and Dimensions

Battery weight	468 g
Weight (including battery)	1375 g
