©2013 DJI Innovations. All Rights Reserved. 5 |

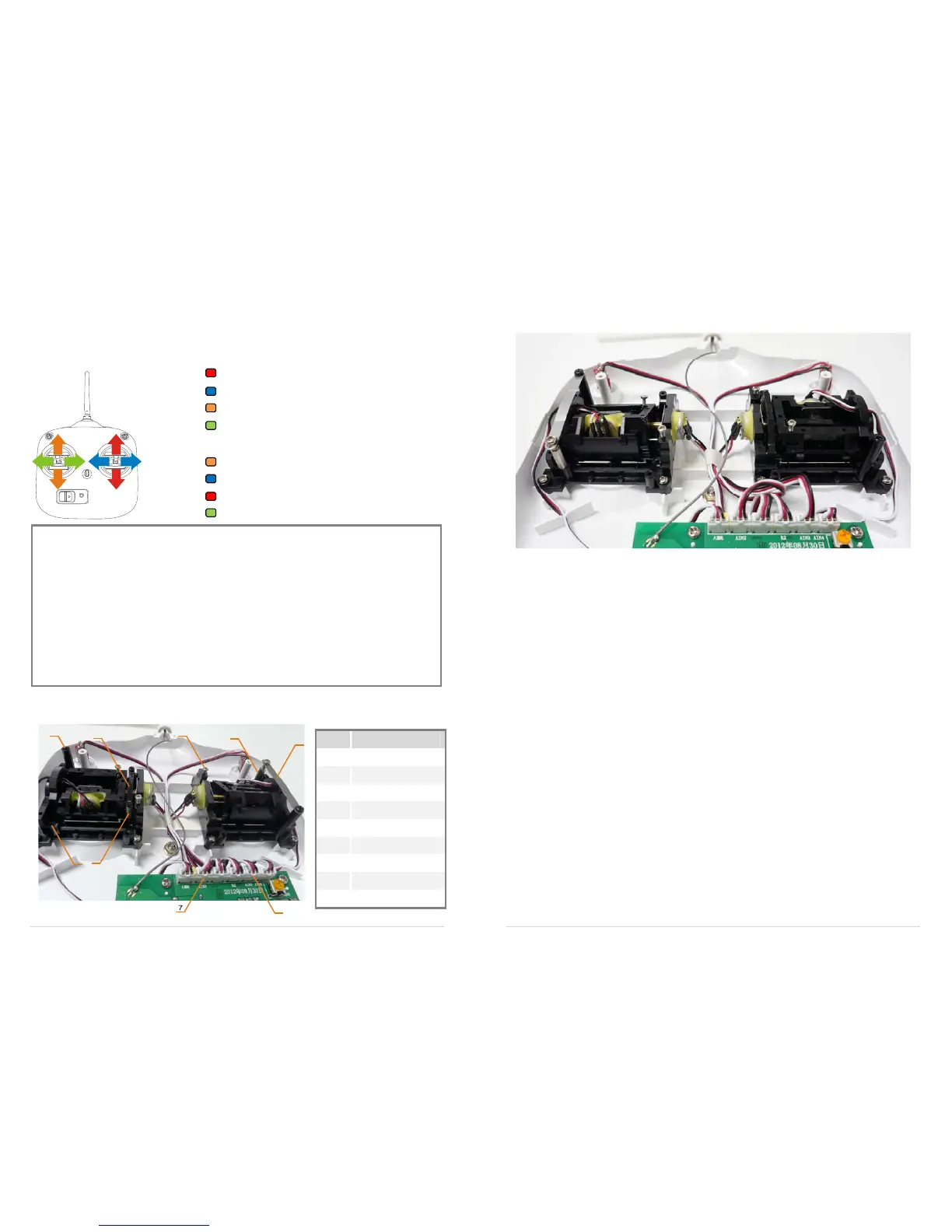

A4 Changing the Control Mode of the Transmitter
You can change the operation mode of the transmitter according to the following procedures if necessary.（The
operation mode of Mode1 and Mode2 are shown as below.）
1. Remove the right Throttle Ratchet plate and the Ratchet Nut. Assemble the Ratchet Nut to the Nut Hole
Location，and fix the Throttle Ratchet onto the Ratchet Nut and the Screw Hole Location. Adjust the
screw height of the Throttle Support to change the tension, so as to give you the required operating feel.
2. Remove the left Centering Unit and the Centering Spring. Assemble them to the corresponding position
of the Right part (Close to the middle location of the transmitter). Then adjust the height of the Adjusting
Screw, so as to give you the required operating feel. (Note: Be careful not to excessively tension the
spring when moving and fixing, to avoid damage.)
3. Exchange the connectors of Channel 2（AIN2）and Channel 3 (AIN3). (Note: Take care about the
connector direction.）
Mode2
1
2
3
4
5
6
8
9
NO. Name
1 Screw Hole Location
2 Centering Unit
3 Adjusting Screw
4 Ratchet Nut
5 Throttle Ratchet
6 3rd Channel
7 2nd Channel
8 Centering Spring
9 Nut Hole Location
Mode1: Throttle, it cannot hold the central position when released.
Roll, it can return to the central position when released.
Pitch, it can return to the central position when released.
Yaw, it can return to the central position when released.
Model2: Throttle, it cannot hold the central position when released.
Roll, it can return to the central position when released.
Pitch, it can return to the central position when released.
Yaw, it can return to the central position when released.
©2013 DJI Innovations. All Rights Reserved. 6 |
The following figure shows the successful change of transmitter mode to Mode 1.
Mode1
