A8 Maintenance

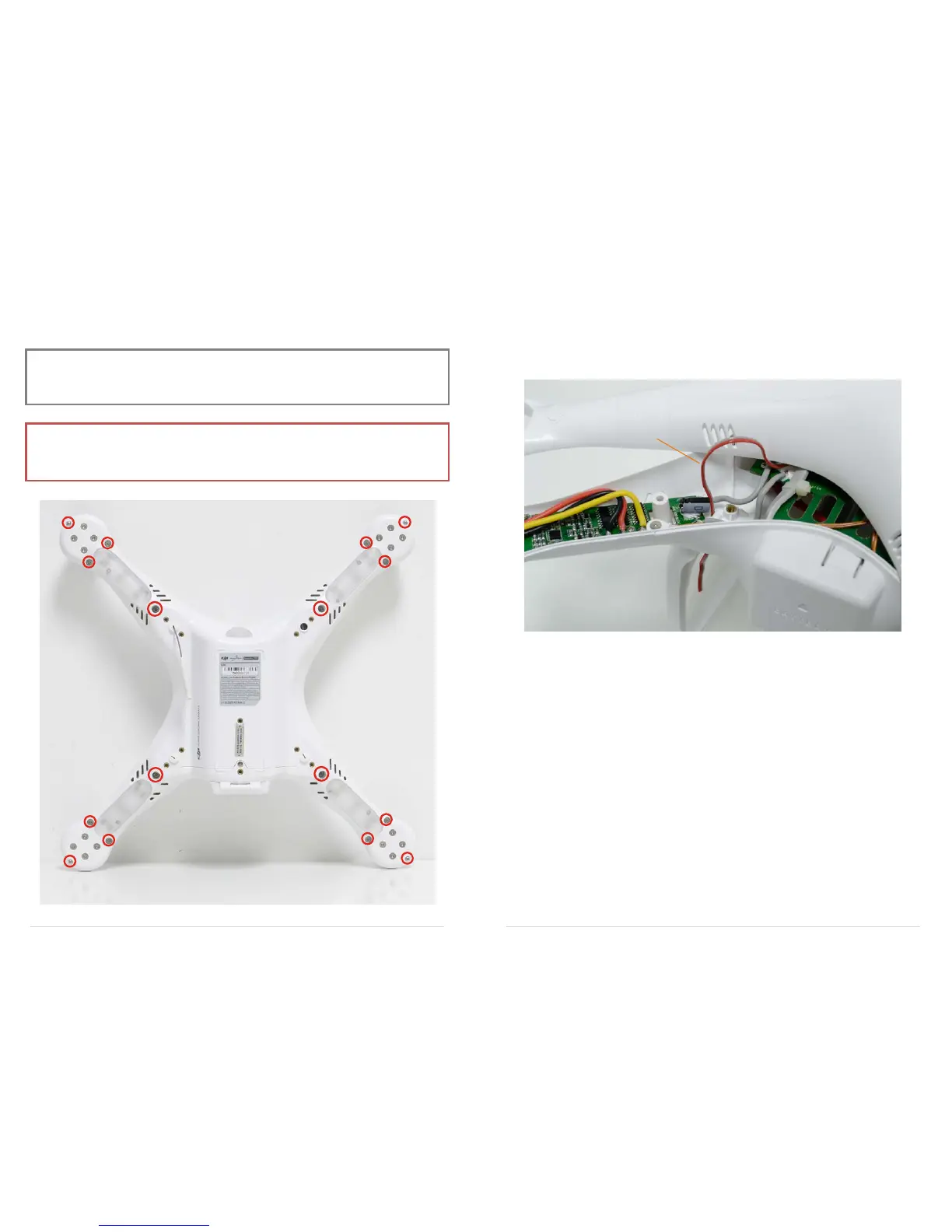

1. Remove the Housing
1. Remove all the nuts and propellers by using the assistant wrench.
2. Remove the screws marked in the figure below using a Phillips Screwdriver and a Hexagon
Screwdriver, and then remove the housing.
Note:
 Please take good care of the removed parts, for example, screws. Make sure to keep them safe and
away from children.
©2013 DJI Innovations. All Rights Reserved. 12 |
2. Extension Power
There is an extension power cable in the Phantom for DIY use. The voltage from the Extension Power Cable is
the same voltage as the power battery. The red cable is for positive and the grey cable is for negative. Make
sure to keep the red cable and the grey cable separated, to avoid short circuit.
ExtensionPowerCable

dji PHANTOM Specifications

General

Megapixel	14 MP
Supported video modes	1080i, 1080p, 720p
Battery capacity	5200 mAh
Product color	Red, White
Frequency band	5.728－5.85 GHz
Maximum operating distance	400 m

Weight and Dimensions

Weight	1284 g
