dji PHANTOM User Manual

Tx signal lost
Tx signal lost
Tx signal lost
Tx signal lost

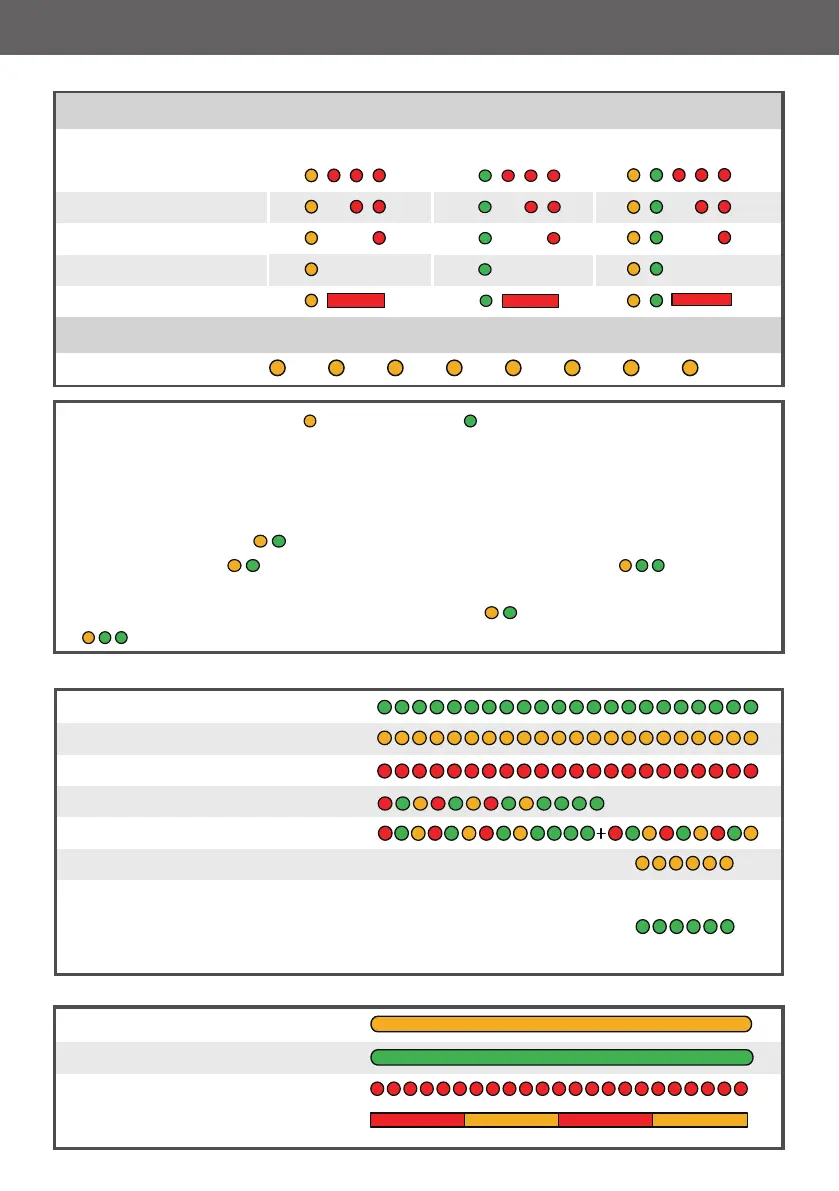

LED Indicator Description
Flashing indications of ATTI. Mode and GPS ATTI. Mode are:
 Before motors start: Single blink, all sticks (except throttle stick) at center; Double blinks, stick(s) (except
throttle stick) not at center.
 Aer motors start and throttle stick is over 10% within 3 seconds: Single blink, all sticks at center; Double
blinks, stick(s) not at center.
Blinking indications of IOC are:
 Before motors start: blink, all sticks (except throttle stick) return to center; blink, stick(s)
(except throttle stick) not at center.
 Aer motors start and throttle stick is over 10% in 3 seconds: blink, all sticks return to center;
blink, stick(s) not at center.
Control Mode and GPS Satellite Number Indicator
Control Mode ( with GPS module )
ATTI. Mode GPS ATTI. Mode IOC
GPS Satellite number < 5
GPS Satellite number = 5
GPS Satellite number = 6
GPS Satellite number > 6
Flight Attitude is bad
Control Mode (without GPS module)
ATTI. Mode
Others
Compass Calibration
Record forward direction or home point
Transmitter signal lost
Low voltage / Other errors
System start and self-check
IMU abnormal data
PHANTOM warm up aer power on
IMU Basic Calibration is needed/
Or PHANTOM is moved aer power on and
before the motors start-up
Begin horizontal calibration
Compass error too big
Control Mode + GPS Satellite Number +
Control Mode + GPS Satellite Number +
Begin vertical calibration
Calibration or others error

dji PHANTOM Specifications

General

Megapixel	14 MP
Supported video modes	1080i, 1080p, 720p
Battery capacity	5200 mAh
Product color	Red, White
Frequency band	5.728－5.85 GHz
Maximum operating distance	400 m

Weight and Dimensions

Weight	1284 g
