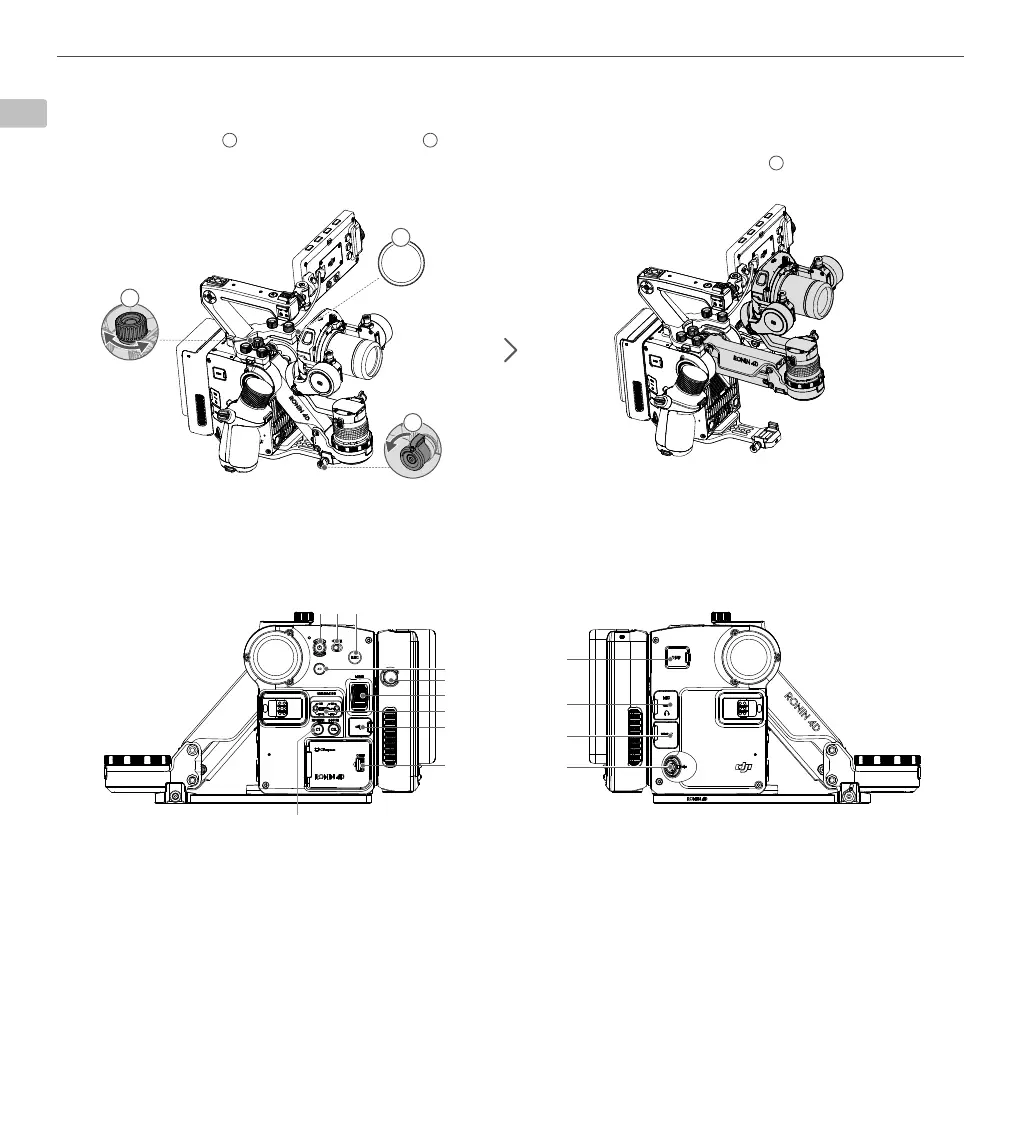

Balancing the Z Axis
Power on Ronin 4D and enable the Z axis before balancing the Z axis.
1. Loosen the Z axis lock
1
and press the Z Axis switch
2
to enable Z axis.
2. Follow the prompts on the high-bright main monitor to balance the Z axis by turning the adjustment knob
3
. The Z axis is balanced if it
remains horizontal.
Operation
Ronin 4D can be used once it has been activated, auto-tuned, and the Z axis has been balanced.
Main Body
1. Power Button
Press and hold for 1 second to power on. Press and hold for 3
seconds to power off.
2. Lock Button
Toggle the lock button to the left to disable Ronin 4D.
3. Record Button
Press once to start or stop recording.
4. Z Axis Switch
Press once to enable or disable the Z axis.
5. Battery Release Button
Press once and then remove the battery.
3
1
4D
2
1 2 3
4
5
7
8
9
11
12
13
14
10
6
6. Dial
Turn to adjust focus.
7. Gimbal Mode
OFF
:
Sleep mode.
FOLLOW: Follow mode (PF means the pan axis will follow the
handle movements. PT means the pan and tilt axes will follow
the handle movements. FPV means the three axes all follow the
handle movements).
LOCK: Lock mode (the gimbal will not follow the handle
movements).
Z Axis Switch

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
