DK-1100A Ink Roll Coder Operation Manual
2.1 Working System
Hot Ink Roll
Rubber Wheel
Hot Ink Roll
Rubber Wheel
Pressure RollerPressure Roller
RollerRoller
Packaging FilmPackaging Film

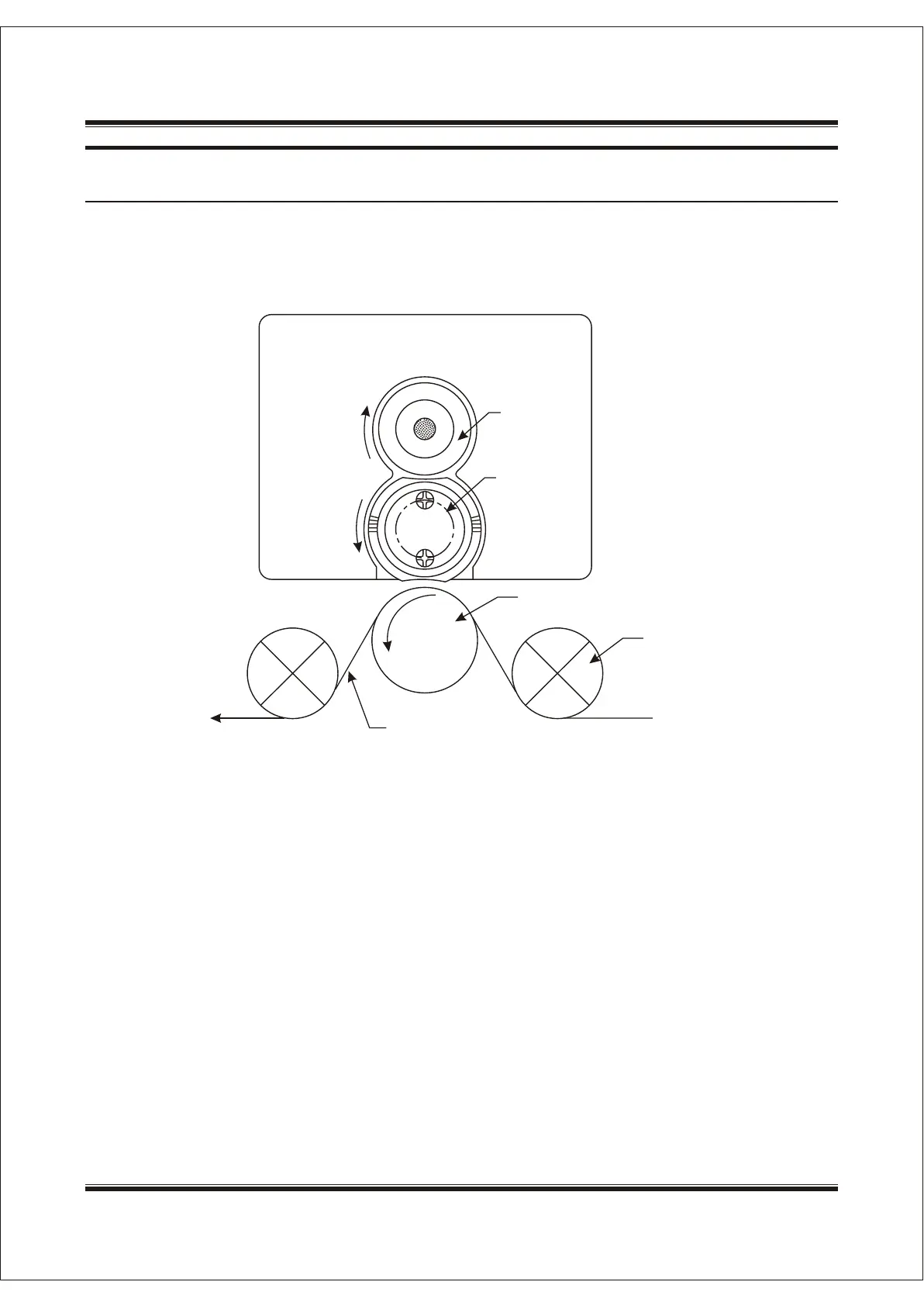

Diagram 1
1. The Types contact the Hot Ink Roll and get the ink;
2. The Types are driven by the Rubber Wheel and Pressure Roller to continue moving, then touch the
packing film to produce imprint.
3. The Rubber Wheel and Rubber Roller must keep in good contact to ensure the clarity and
consistency of the printing.
SHANGHAI DIKAI SEPARATE MACHINERY CO., LTD.SHANGHAI DIKAI SEPARATE MACHINERY CO., LTD. 2-82-8
