IGNITION SWITCH:
An Ignition “Kill” Switch (IKS) is required for all DLA Engine / Ignition Installations. Refer to
the installation procedures and diagrams in the “Ignition Installation and Wiring” Section.

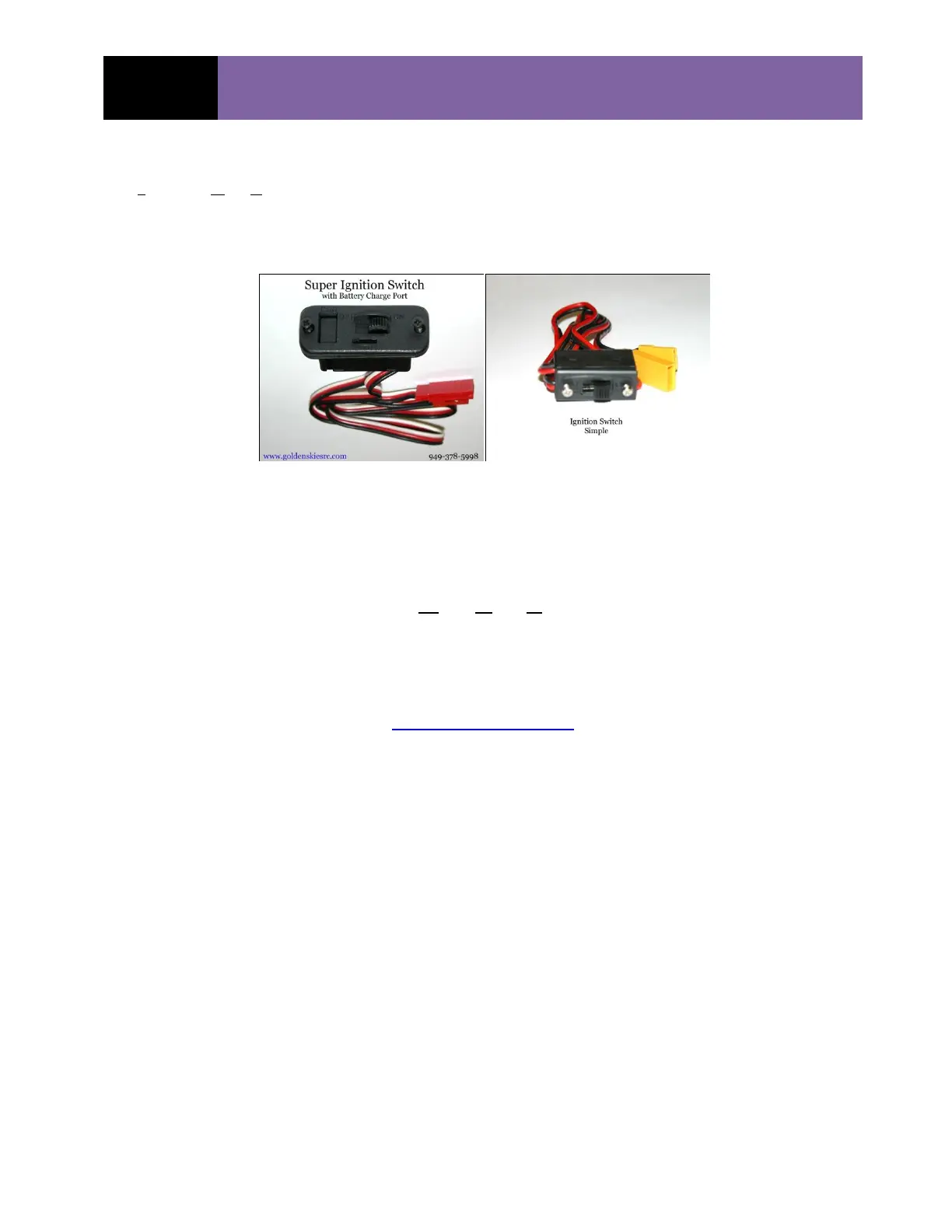

GOLDEN SKIES R/C AIRCRAFT, INC. offers the switches that are most commonly used for the
IKS:
IGNITION BATTERY:
All DLA Engine Ignitions operate within a 6.6 V DC to 8.4 V DC range. A-123-Series, LiPo are
commonly used. However, good quality Nickel-Metal-Hydride (NiMH) battery, in a six- (6)
series configuration, is also adequate. An 1,200 mAh battery is sufficient. However, a 2,100 mAh
battery is recommended for the Dual Ignition engines. Check the Golden Skies R/C Aircraft
website for battery selections. The CDI will not operate under 6.3 VDC and damage to the CDI
may occur if the CDI supply voltage is less than 6.0 VDC.
www.goldenskiesrc.com
BOLT SET (Engine):
Complete DLA Engine bolt sets are available for each DLA engine. The Engine bolt set includes
Mounting bolts, prop-bolts, muffler bolts, and appropriate flat-washers and lock-washers.
DLA 32cc PN: 01380-00103
DLA 58cc PN: 01380-00203
DLA 64cc PN: 01380-00303
DLA 64-I2 PN: 03180-03146
DLA 116cc PN: 01380-00403
DLA 116-I2cc PN: 03180-01412
DLA 128cc PN: 03180-01624
DLA 180cc PN: 03180-00948
DLA 232cc PN: 03180-02034
----------------------------------END OF ACCESSORIES------------------------------------
