DLA ENGINE OPERATING-INSTRUCTION
MANUAL
06
/2
9/2016
Copyrighted Material
Owner’s Manual
All Rights Reser
ved
03180-10000
Page -
32
DLA 32, 58, 64, 64-I2, 116, 1
16-I2 & 128cc, 180c,
232cc
R
ev. A.05.
11

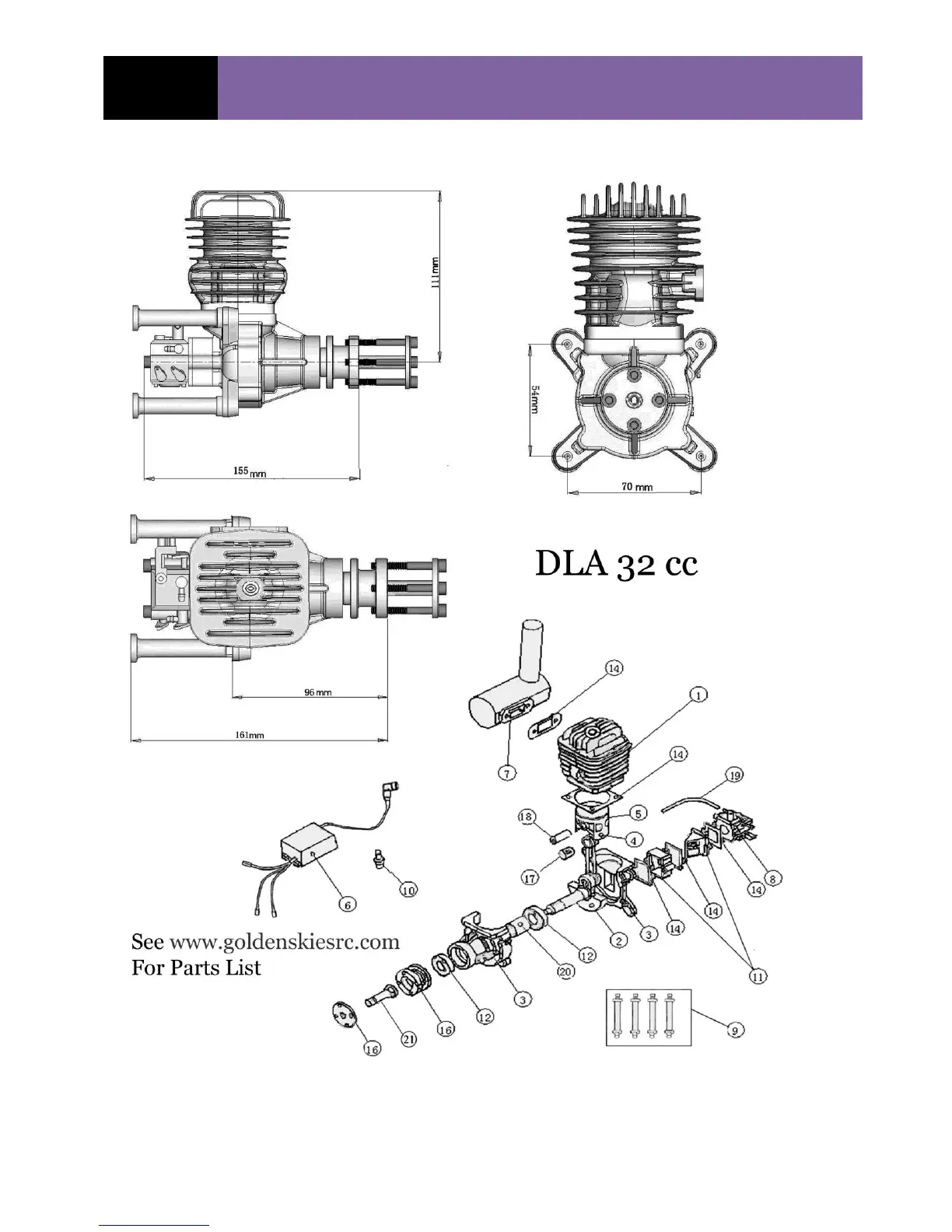

DIMENSIONS an
d PARTS DIAGRA
M (Typical):
31
33
Table of Contents
Main Page
Table of Contents
2
Welcome
3
Legal Disclaimer / Assumption of Liability
4
Accessories and Support Items
7
About DLA Engines
13
Intended Engine Use
15
Safety Instructions
15
Installation in Model Aircraft
18
Spark Plug
20
Muffler
20
Ignition Installation and Wiring
20
Cowl Ducting and Air Flow
24
Temperature Limits
24
Fuel - GAS
26
Tank Installation
26
Fuel Point
28
Propeller Selection
28
Engine Starting
29
Break-In
31
Normal Flight Operation
31
Engine Maintenance
31
Parts List
35
Carburetor Tuning and Care
40
Trouble Shooting
42
Warranty
45
Warranty Extension
45
