DLS CAD11 User Manual

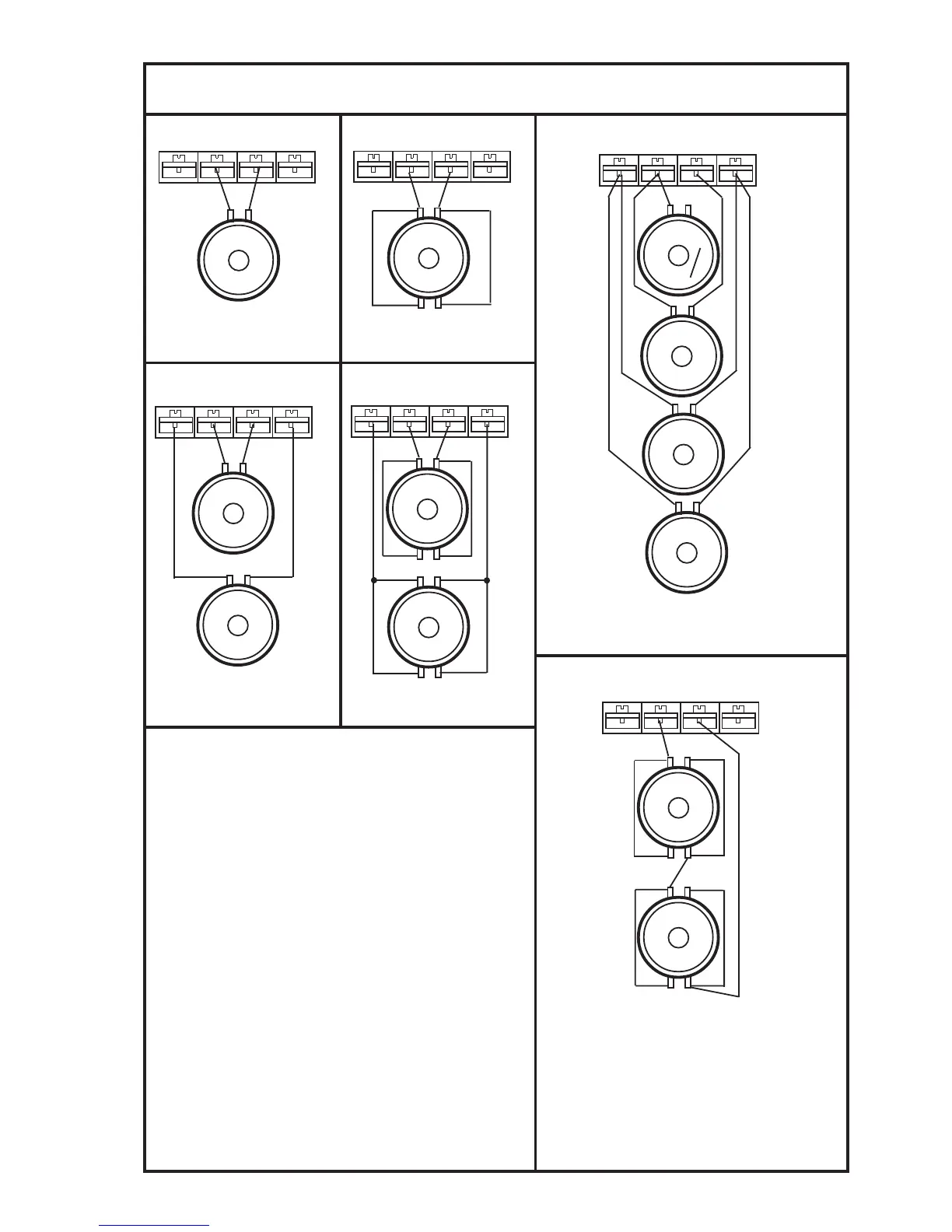

CONNECTION OF SUBWOOFERS TO DLS MONO AMPS
Connection of a subwoofer
with 4 ohm single voice coil
Impedance = 4 ohm
Amplifier speaker terminal
- - + +
Amplifier speaker terminal
- - + +
Connection of a subwoofer
with 4 ohm dual voice coils
Impedance = 2 ohm
Amplifier speaker terminal
- - + +
Connection of two subwoofers
with 4 ohm single voice coil
Impedance = 2 ohm
+
+
4Ω
4Ω
-
-
Connection of four subwoofers
with 4 ohm single voice coil
Impedance = 1 ohm
+-
+
+
-
-
4Ω
4Ω
+
+
-
-
4Ω
4Ω
+
+
-
-
4Ω
4Ω
Amplifier speaker terminal
- - + +
Connection of two subwoofers
with 4 ohm dual voice coils
Impedance = 1 ohm
+-
4Ω
On DLS mono amplifiers, with dual speaker connectors,
both the + and - terminals are internally connected in
parallel.
CAD11 and CAD15 has a speaker terminal different
from this illustration, but we hope you understand what
we mean.
9
Amplifier speaker terminal
- - + +
+
+
-
-
4Ω
4Ω
+
+
-
-
4Ω
4Ω
4Ω
+
-
+
-
+
-
Amplifier speaker terminal
- - + +
4Ω
4Ω
4Ω
Connection of two subwoofers
with 4 ohm dual voice coils in
parallel and then in series to the
amplifier with a resulting
impedance of 4 ohms.
If you connect two subwoofers with
2 ohm voice coils in this way the
resulting impedance is 2 ohms.

DLS CAD11 Specifications

General

Brand	DLS
Model	CAD11
Category	Amplifier
Language	English
