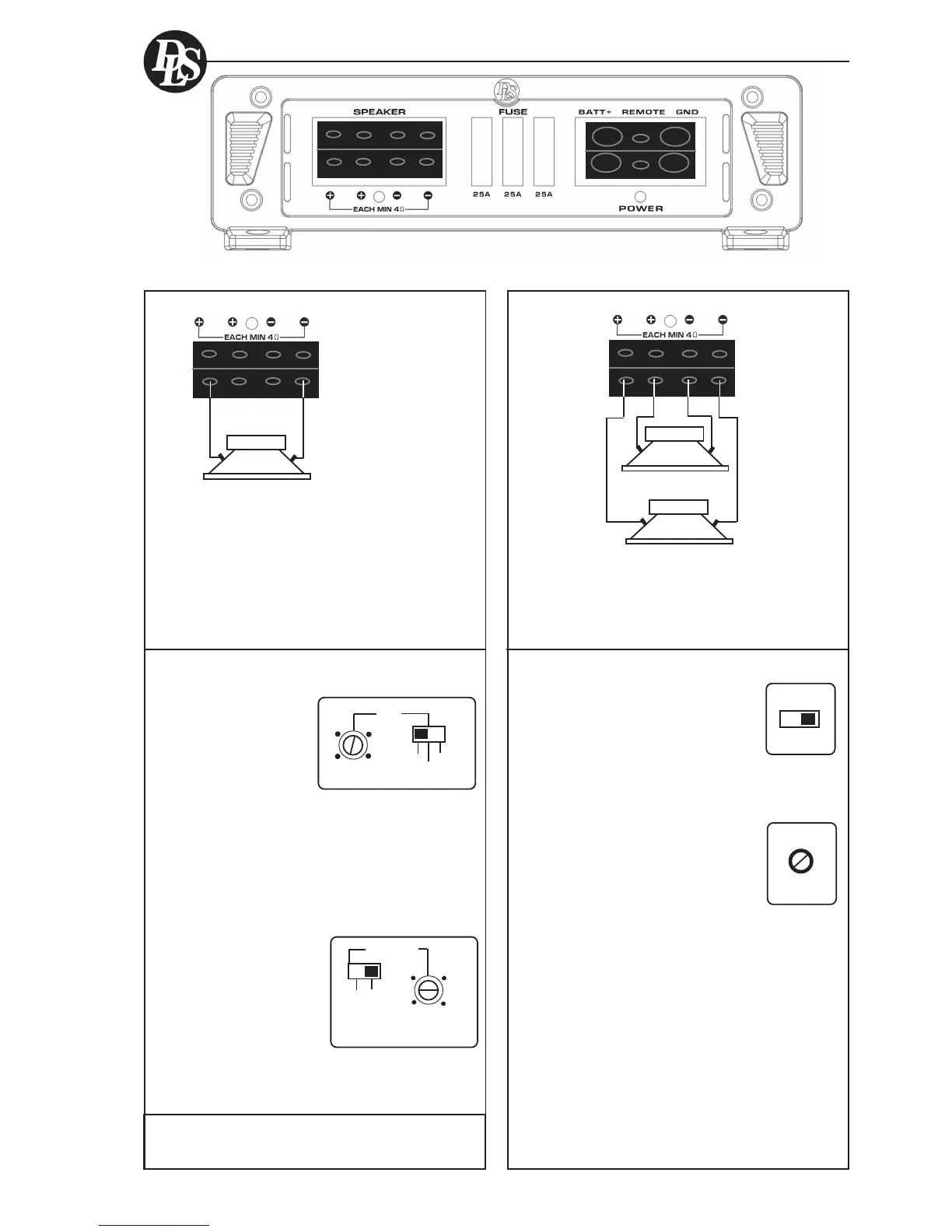

Page #9 background image
SUB EQ
0
+ 6
dB
One 4 ohm or 2 ohm subwoofer
PHASE switch:
The phase can be adjusted in either
0 or 180 degrees. This is used to get
the best possible ”front stage” from
the subwoofer.
SUB EQ is used to increase the bass
volume at a low frequency.You can
select the amplification between 0 dB
( no amplification ) and +6 dB ( full
amplification ) at 40 Hz center
frequency
This function is used to compensate
for the bass box function and to adjust
for your own taste of bass. Set level
control at 0 dB if you want it to be
inoperative.
Two 4 ohm subwoofers
NOTE!
Minimum amplifier load is 2 ohm, lower
impedances may damage the amplifier. This
connection gives a 2 ohm load with two 4 ohm
subwoofers.
Filter settings LPF low pass filter
Speaker connection to RM15
RM15
NOTE!
Minimum amplifier load is two (2) ohm. You can
connect two 4 ohm subwoofers or a single 2 ohm
subwoofer to the amplifier.
For power wiring, see page 4
For high or low level input wiring, see page 5
The low pass filter is
mostly used for
subwoofers. It will allow
low frequencies only and
blocks higher frequencies.
A typical setting is 50 –
70 Hz.
You can also choose fil-
ter slope, 12 dB or 24 dB.
Choose the setting that
sounds best in your car.
NOTE!
The speaker terminal
has dual + and - for
easier connection if you
have more than one
subwoofer. They are
internally connected in
parallel and can not be
bridged.
4 ohm
4/2
ohm
PHASE
0
180
o
The Subsonic filter
blocks the very deepest
frequencies from reaching
the subwoofers. It can be
set from 15 to 150 Hz and
can be switched on / off.
A typical setting for
subwoofer use is 25-30
Hz
4 ohm
LPF
FULL 24 dB
12 dB
50
500
200
80
SUBSONIC
Off On
40 Hz
150 Hz
100 Hz
15 Hz
9
