DMG RAFFAELLO Installation Manual

D I S P L A Y
15
4,3" / 5"4,3" / 5"4,3" / 5"
Liaison Gray / Binaire • Gray / Binär Protokoll • Protocolo Gray / Binario

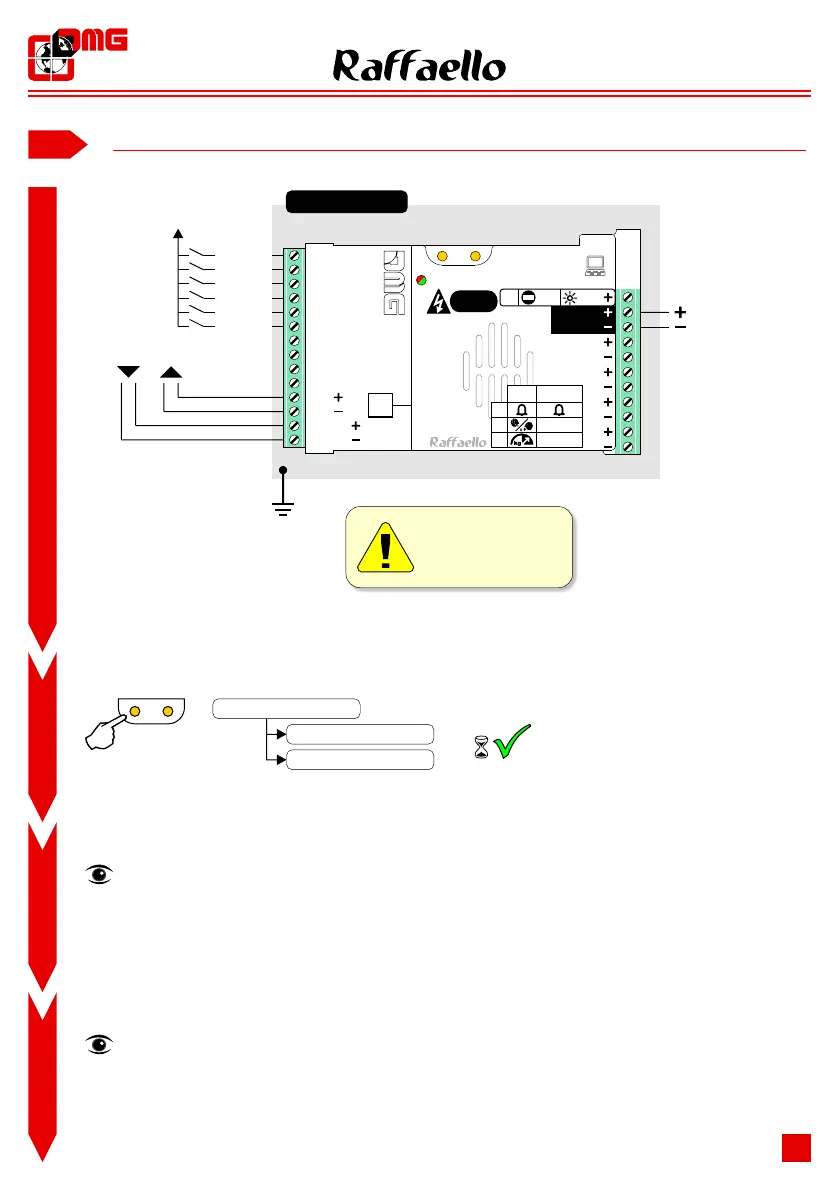

Collegamento in parallelo (GRAY / BINARIO) • Parallel wiring (GRAY / BINARY)
3.4
GRAY 0
Piani
Floors
Frecce / Arrows
12/24V DC
GRAY 1
GRAY 2
GRAY 3
GRAY 4
GRAY 5
max 72 piani (-9, 0, 62)
max 72 floors (-9, 0, 62)
maxi 72 niveaux (-9, 0, 62)
max. 72 Etagen (-9, 0, 62)
máx 72 pisos (-9, 0, 62)
A
B
Impostazione protocollo • Protocol setting
C
Impostazione display di cabina (COP) o di piano (LIP/LOP) • Car (COP) or floor (LIP/LOP) position indicator setting
PRG
Input
Gray
PRG ADV
Programming MENU
D
Impostazione comune ingressi • Inputs common setting
§ 3.2
§ 3.2
Binary
X01
PARALLEL INPUT
X02
X03
X04
X05
X06
X07
X08
X09
X10
UP
UP
DOWN
DOWN
1
PRG ADV
S2
S1
S3
TRIGGER
FAIL/RUN
POWER
SUPPLY
S4
LOP COP
12/24 Vdc
COP LIP/LOP
S1
S2
S3
CAR HERE
CUSTOM
DK_RS_00M
DK__S100M
