(6) Removed MG encoding unit.

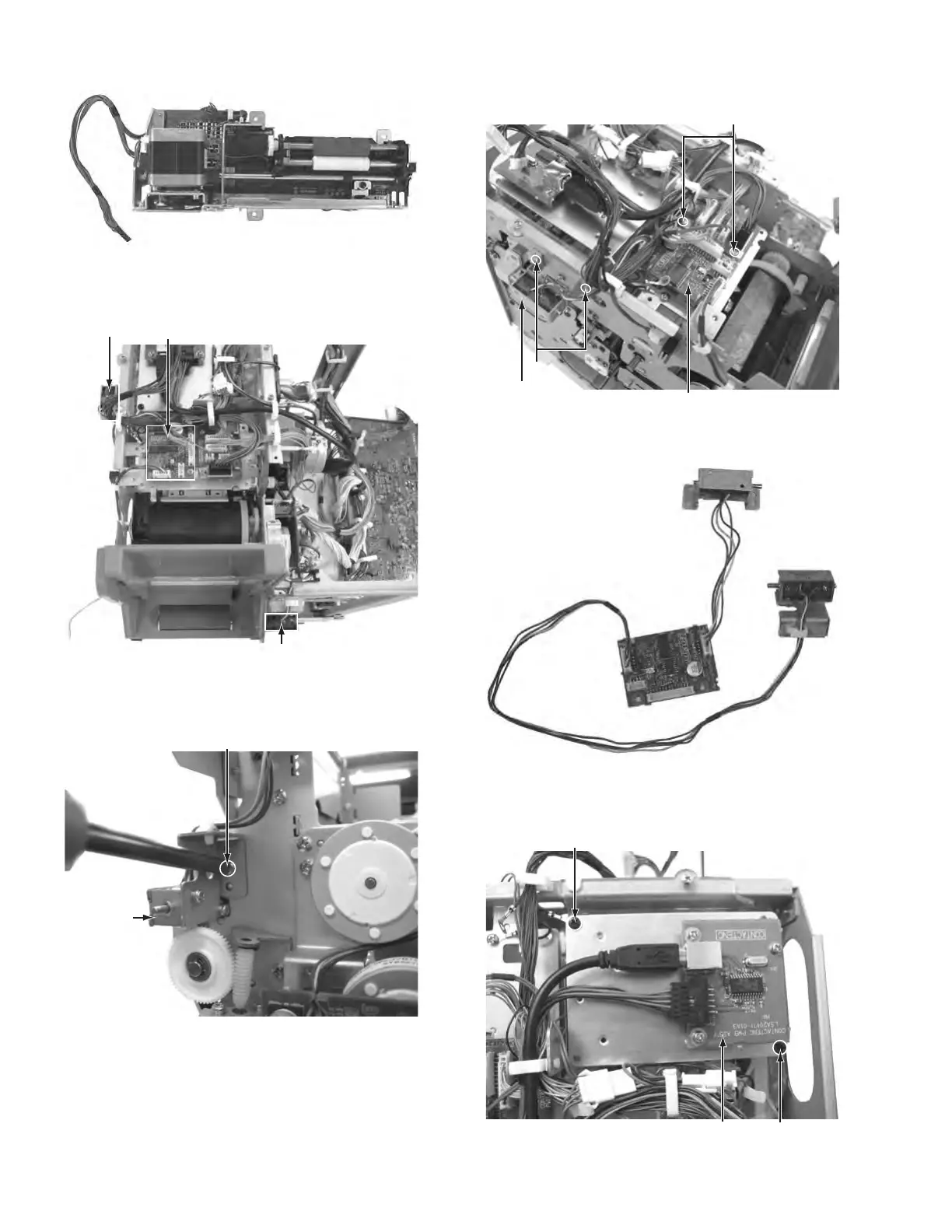

Fig.18
(7) The KEY LOCK UNIT consists of a SECURITY PWB ASSY
and two solenoids.
Fig.19
(8) Remove the one screw J to release the solenoid on the
card stocker side.
Fig.20
(9) Remove the four screws K to release the SECURITY PWB
ASSY and the solenoid on the front side.
Fig.21
(10) Removed KEY LOCK UNIT SET.(LS31237-201A)
Fig.22
(11) Remove the two screws L , then remove the bracket with
IC R/W UNIT.
Fig.23
SECURITY PWB ASSYSolenoid
Solenoid
Solenoid
J
K
K
Solenoid
SECURITY PWB ASSY
L
L
IC R/W UNIT
(CF-7CRW)
