FUSES — INTEGRATED POWER MODULE
An Integrated Power Module (IPM) located in the engine
compartment near the battery. This center contains car-
tridge fuses and mini fuses. A label that identifies each
component may be printed on the inside of the cover.
Refer to the graphic below for FUSES/IPM location.
Cavity Cartridge
Fuse
Description
F4 30 Amp
Pink
Front Wipers
F9 40 Amp
Green
Anti-Lock Brake System
(ABS) Pump
F10 40 Amp
Green
Front Blower
F13 40 Amp
Green
Electronic Back Light (EBL)
F19 40 Amp
Green
Body Control Module
(BCM) Feed 1
F20 30 Amp
Pink
Central Amplifier
F22 30 Amp
Pink
Seats
F27 40 Amp
Green
Radiator Fan

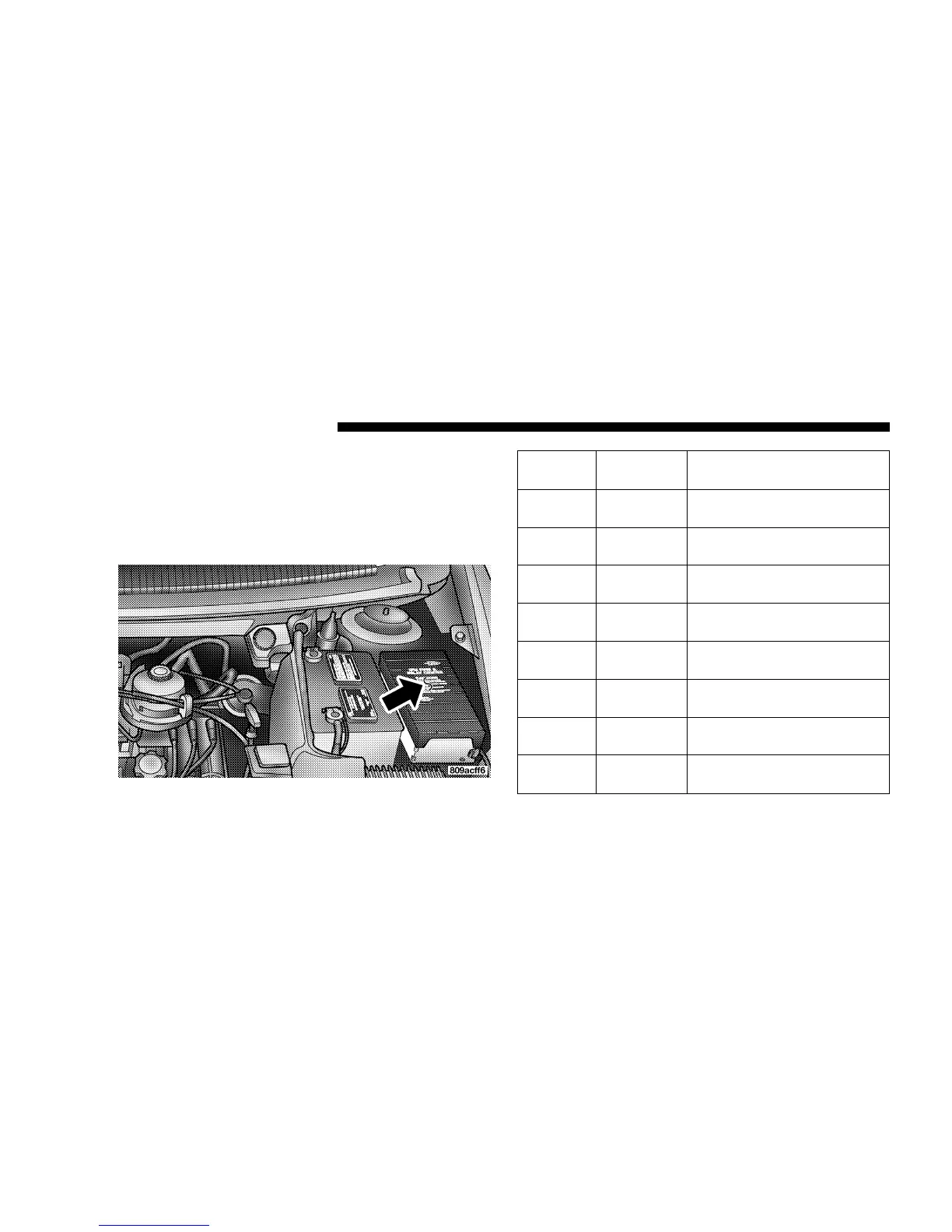

Integrated Power module (IPM)
452 MAINTAINING YOUR VEHICLE
