Underhood Fuses

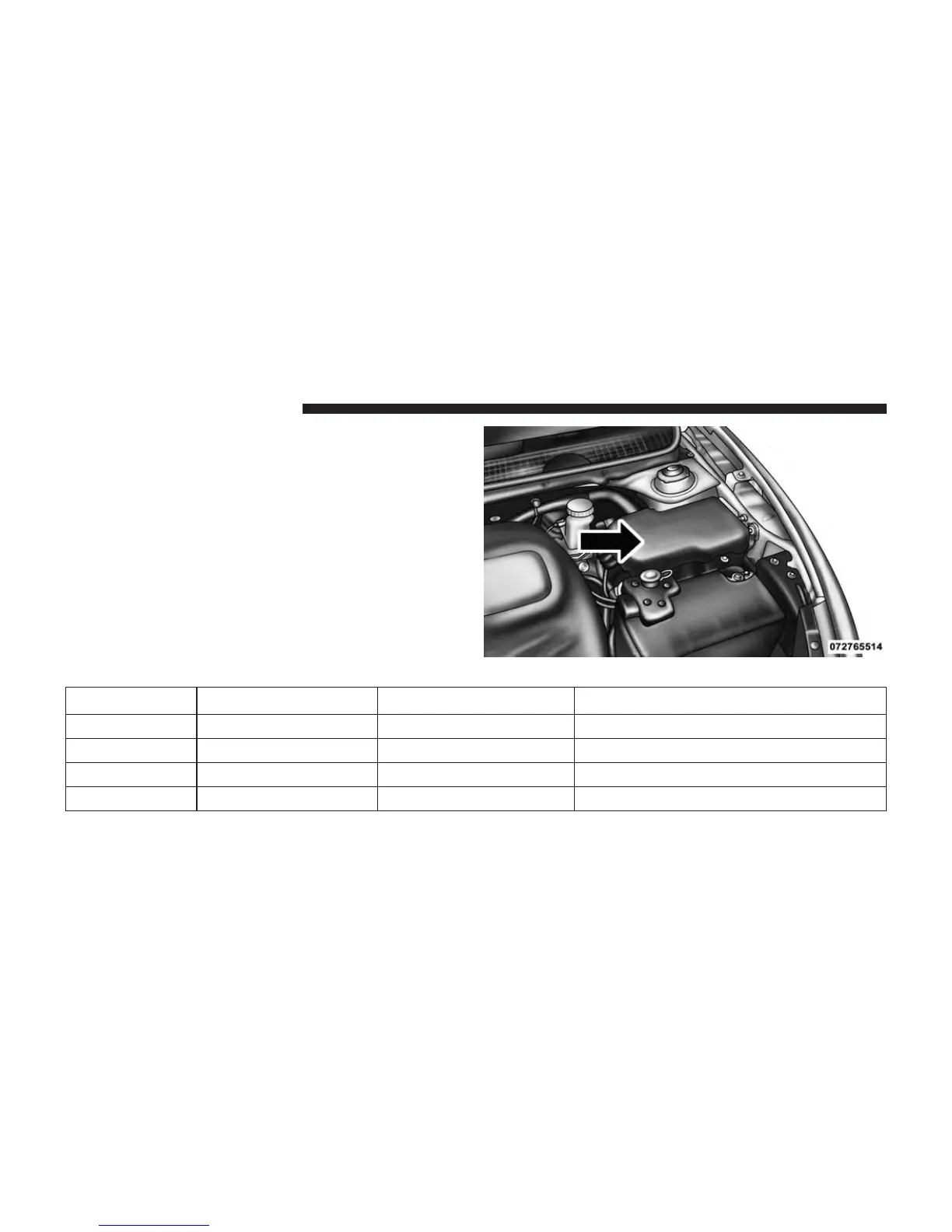

The Power Distribution Center is located on the right side
of the engine compartment, behind the battery.
Cavity Maxi Fuse Mini Fuse Description
F01 70 Amp Tan – Body Control Module #1
F02 60 Amp Blue – Body Control Module #2
F03 30 Amp Green – Output For Starter Relay #1
F04 40 Amp Orange – ESC Pump Motor
Power Distribution Center
