Underhood Fuses

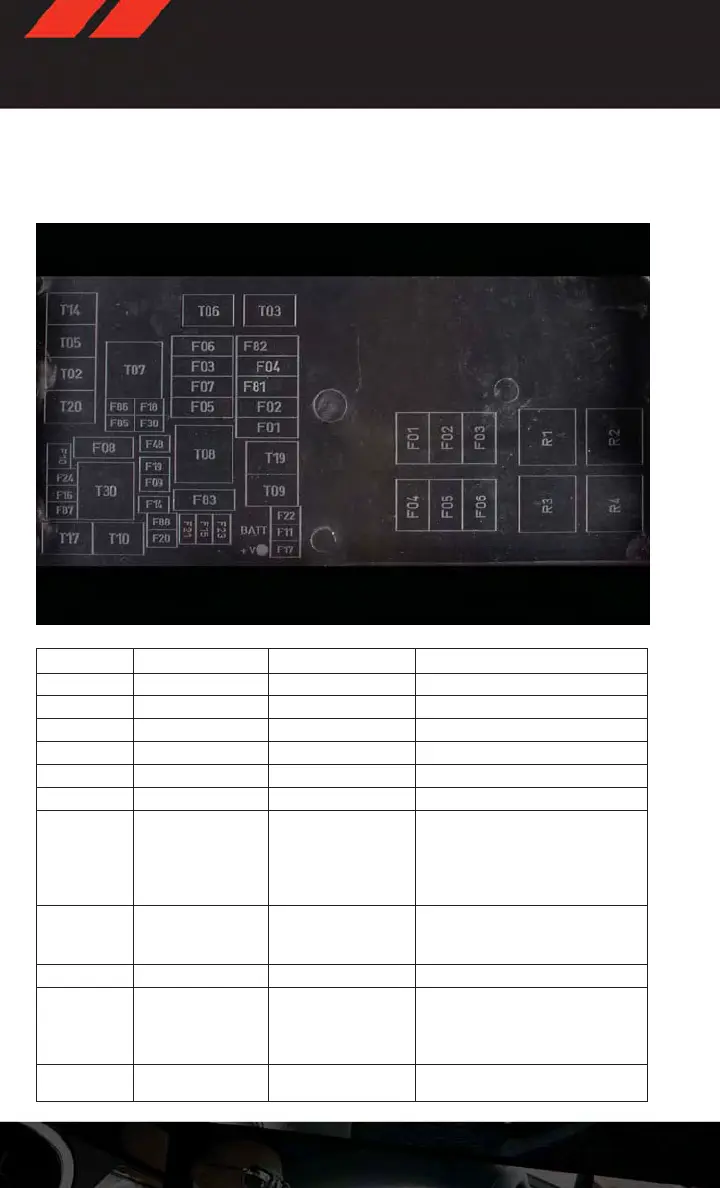

• The Power Distribution Center is located on the right side of the engine compartment,
behind the battery.
Cavity Maxi Fuse Mini Fuse Description
F01 70 Amp Tan — Direct Battery Feed #1 To BCM
F02 60 Amp Blue — Direct Battery Feed #2 To BCM
F03 30 Amp Green — Output For Starter Relay #1
F04 40 Amp Orange — ESP Pump Motor
F05 40 Amp Orange — DDCT Feed #1 (SDU)
F06 30 Amp Green — Direct Battery Feed #3 To BCM
F07 40 Amp Orange — Run RLY Output (For EBL RLY
Coil), Run RLY Output (For ORC),
Run RLY Output (For Blower Motor
RLY Coil), Run RLY Output (For
iPDC)
F09 — 5 Amp Tan Radiator Fan Enable RLY Output,
Radiator Fan Enable RLY Coil Out-
put
F10 — 10 Amp Red ORC
F11 — 20 Amp Yellow ECM, EPS, Backup Lamp Switch,
Run/Start RLY Output (For A/C
Clutch RLY Coil, Fuel Pump RLY
Coil, Starter RLY #1)
F14 — 15 Amp Blue DDCT Feed #2
