254 SAFETY
Locating The LATCH Anchorages
The lower anchorages are round bars
that are found at the rear of the seat
cushion where it meets the seatback.
They are just visible when you lean
into the rear seat to install the child restraint.
You will easily feel them if you run your finger
along the gap between the seatback and seat
cushion.

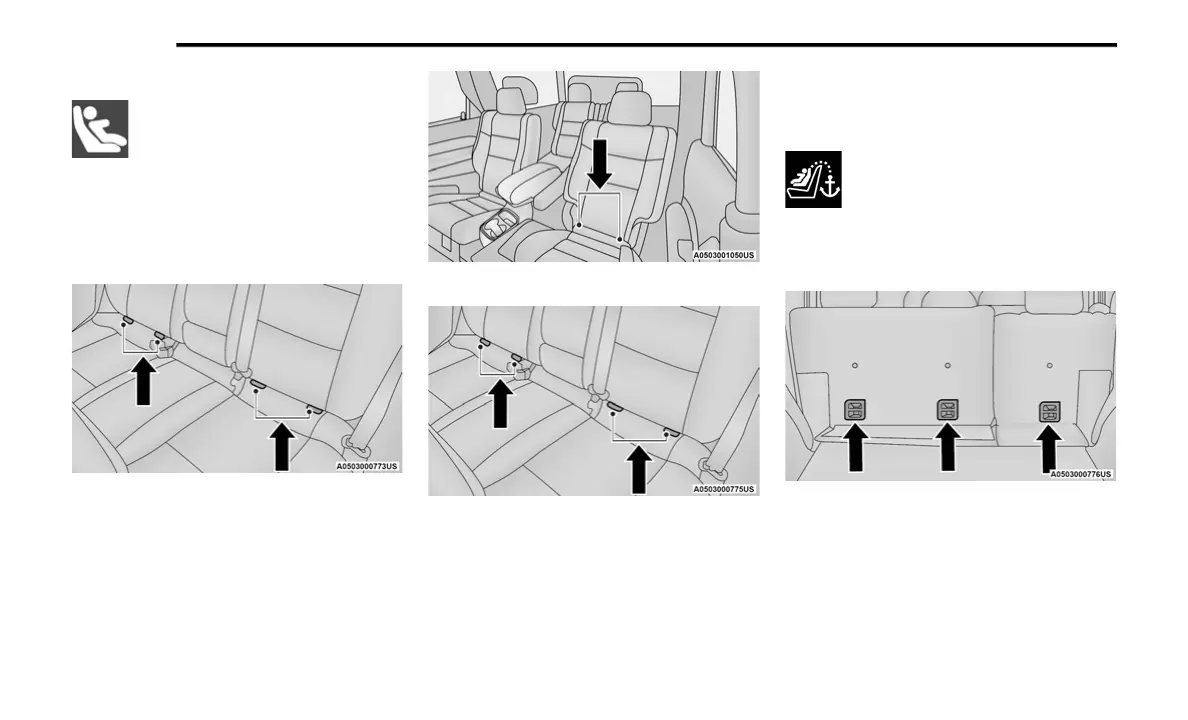

Five Passenger Rear Seat Lower Anchorages
Six Passenger Second Row Lower Anchorages
Seven Passenger Second Row Lower Anchorages
Locating The Upper Tether Anchorages
Five Passenger Vehicles: 2nd Row Upper Tether
Anchorage Locations
There are tether strap anchorages
behind each rear seating position
located on the back of the seat.
To access them, pull the carpeted
floor panel away from the seat back, this will
expose the top tether strap anchorages.
Pulling Down The Carpet Floor Panel To Access Top
Tether Strap Anchorage (Five Passenger)
