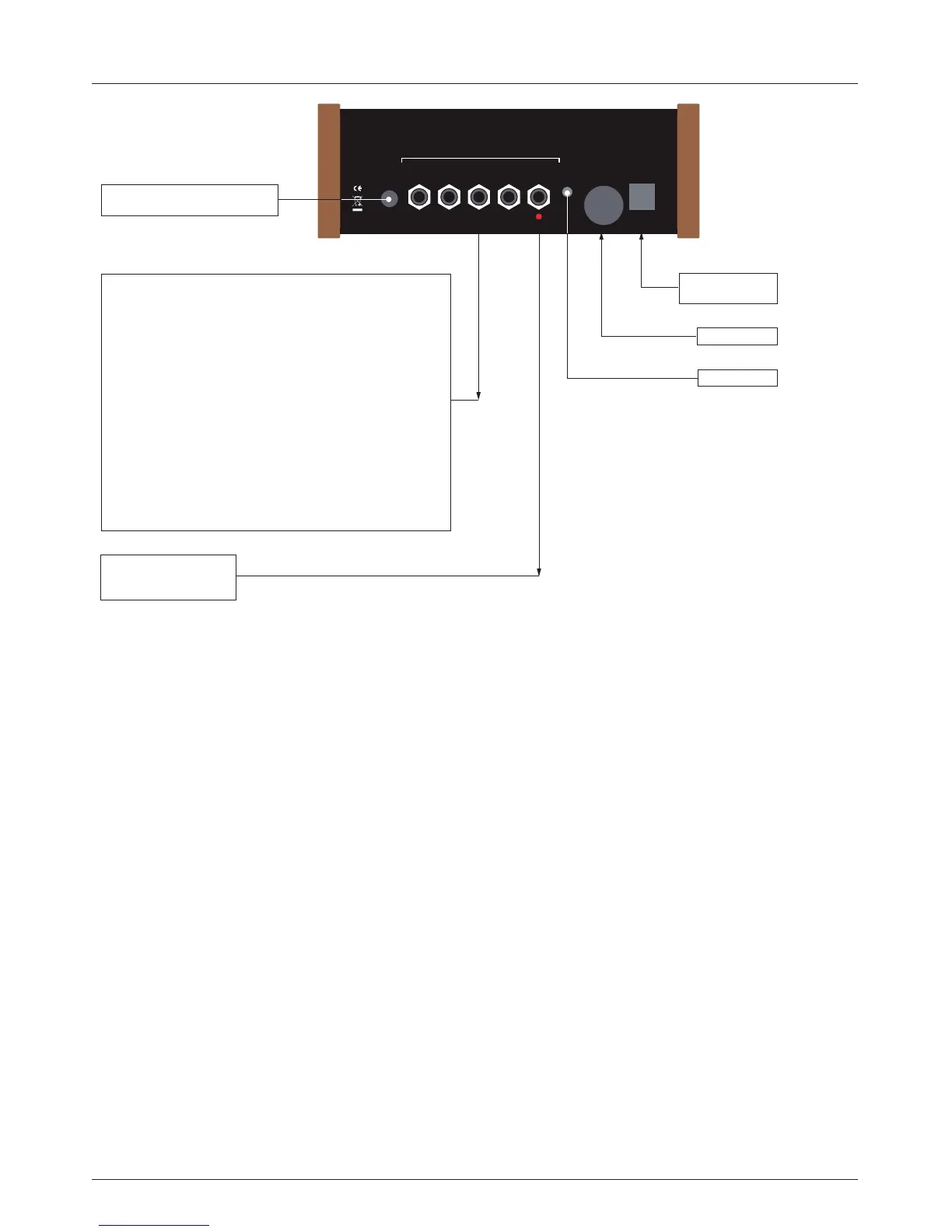

CV1 Gate Learn Midi In USBCV2
Outputs
CV3CV4400mA
(Audio Out)15V AC
DARK ENERGY
ANALOG SYNTHESIZER
DOEPFER
power supply
(12-15V AC, min. 400mA)
CV outputs
CV1: controlled by MIDI note messages, 1V/octave, 0...+5V
(internally routed to the VCO frequency input)
CV2: controlled by MIDI pitchbend data (centered approx.
-2,5...+2,5V or positive 0...+5V, userselectable via internal
jumper, no fixed internal routing; can be connected via patchcord
with e.g. the control voltage input of the VCO or VCF)
CV3: controlled by MIDI velocity data (0...+5V, no fixed internal
routing; can be connected via patchcord with e.g. the control
voltage input of the VCF or VCA)
CV4: controlled by MIDI control change messages, learn mode
for setting of controller number (0...+5V, no fixed internal routing;
can be connected via patchcord with e.g. the control voltage
input of the VCF or pulswidth input of the VCO)
gate output
(with LED, also for learn
function), 0/+5V
Learn button
MIDI input
USB
(for MIDI via USB)
