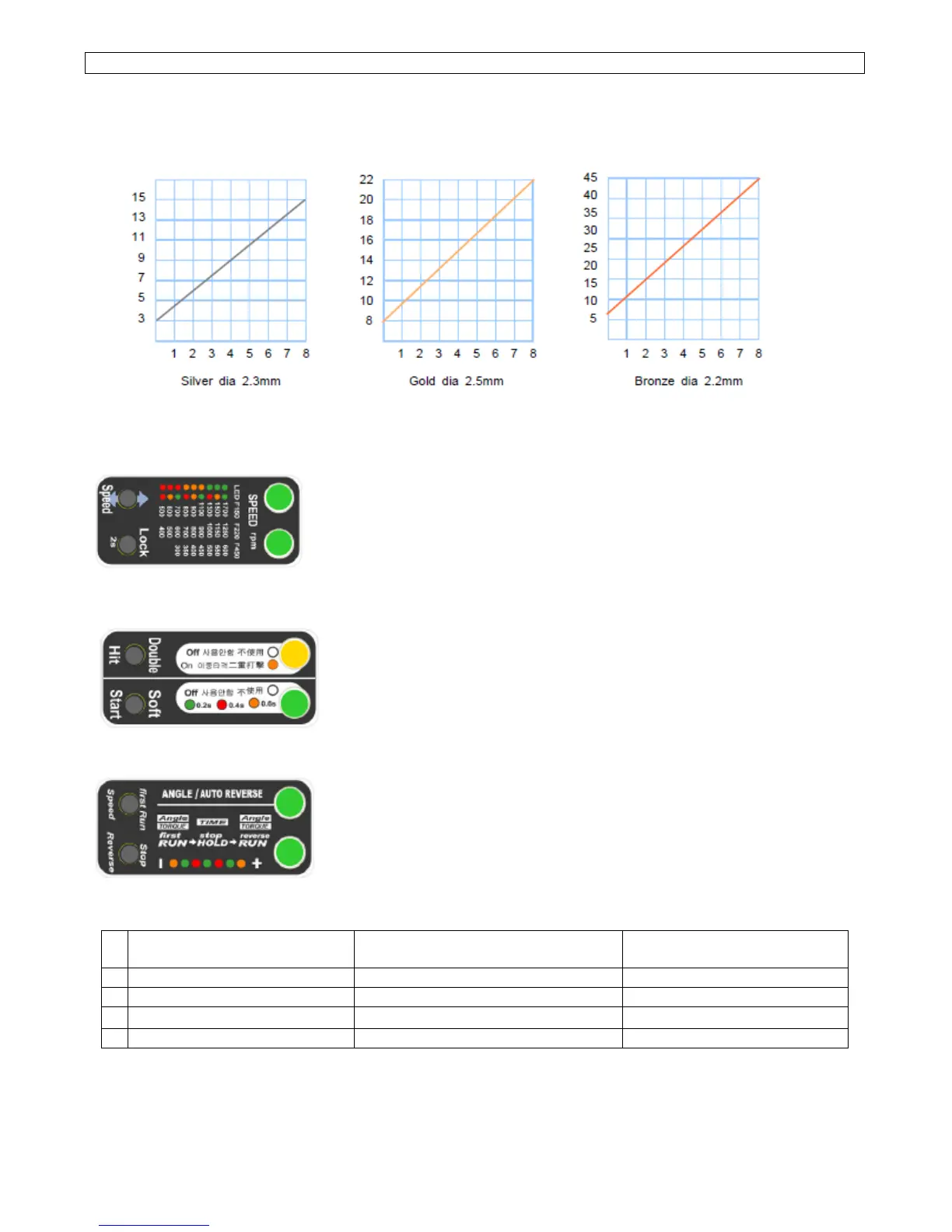

7. Torque curve (at No load Max. speed)
GX 150 GX 220 GX 450
8. Panel of each model
■ Standard (Speed control) / GX___
■ Soft start & Double hit / GX___+
■ Angle control & Auto reverse / GXT___
9. Alarm display by LED
n
o
Alarm Description Reset
1 Over Voltage (over 48V) ● Green light blinks for 0.5s Auto reset under 48V
2 Overload (4A/0.5s) ● Red light blinks for 0.5s Auto reset after 5s
3
Overheat (over 80℃ of motor)
● Orange light blinks for 0.5s
Auto reset lower than 80℃
4 Driver Lock by external signal ● Orange light On continuously Auto reset by signal off
