Instructions manual / XS-40D
6
3. Electric specification
Model XS-40D
Input 120 / 230VAC (selectable)
Output 30 / 40 VDC (selectable) +5%
Rated power 2.6A 105W
Maximum output current 10 A
Intermittent operation 10s On / 30s Off
Safety system CE certified (Class I)
4. Mechanical specification
Size : 98 x 158 x 55H (mm)
Weight : 850 gr
Power cord : 1.5 m
Fuse : 10 A 250V

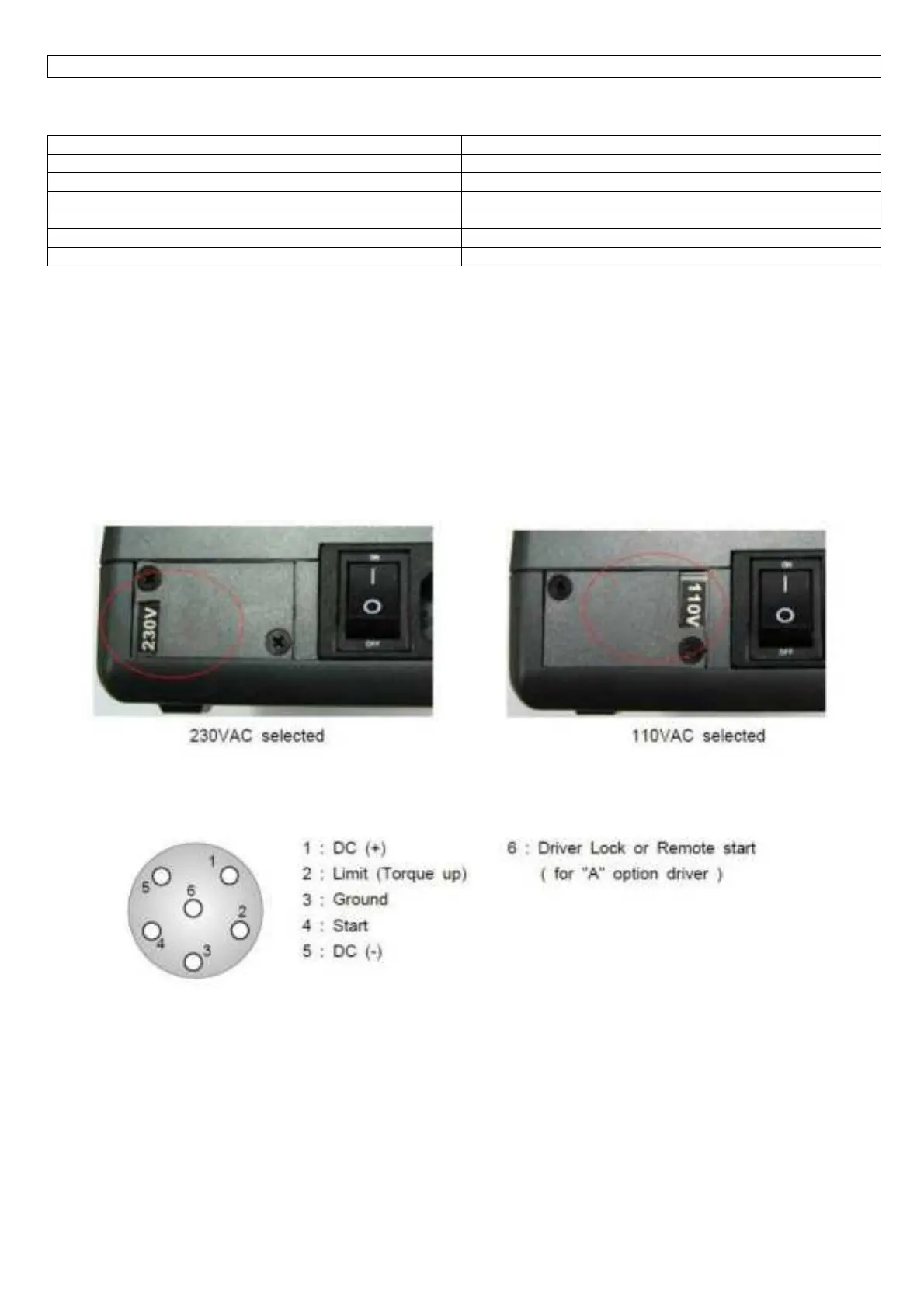

5. Selectable INPUT VOLTAGE at the back of the controller
For changing the input voltage, loosen two screws and assemble the cover as below.
6. Pin configuration of output
Caution : Do not connect the others except the listed screwdrivers. It may cause electric shock, fire and any dangerous
situation.
To Next Page
