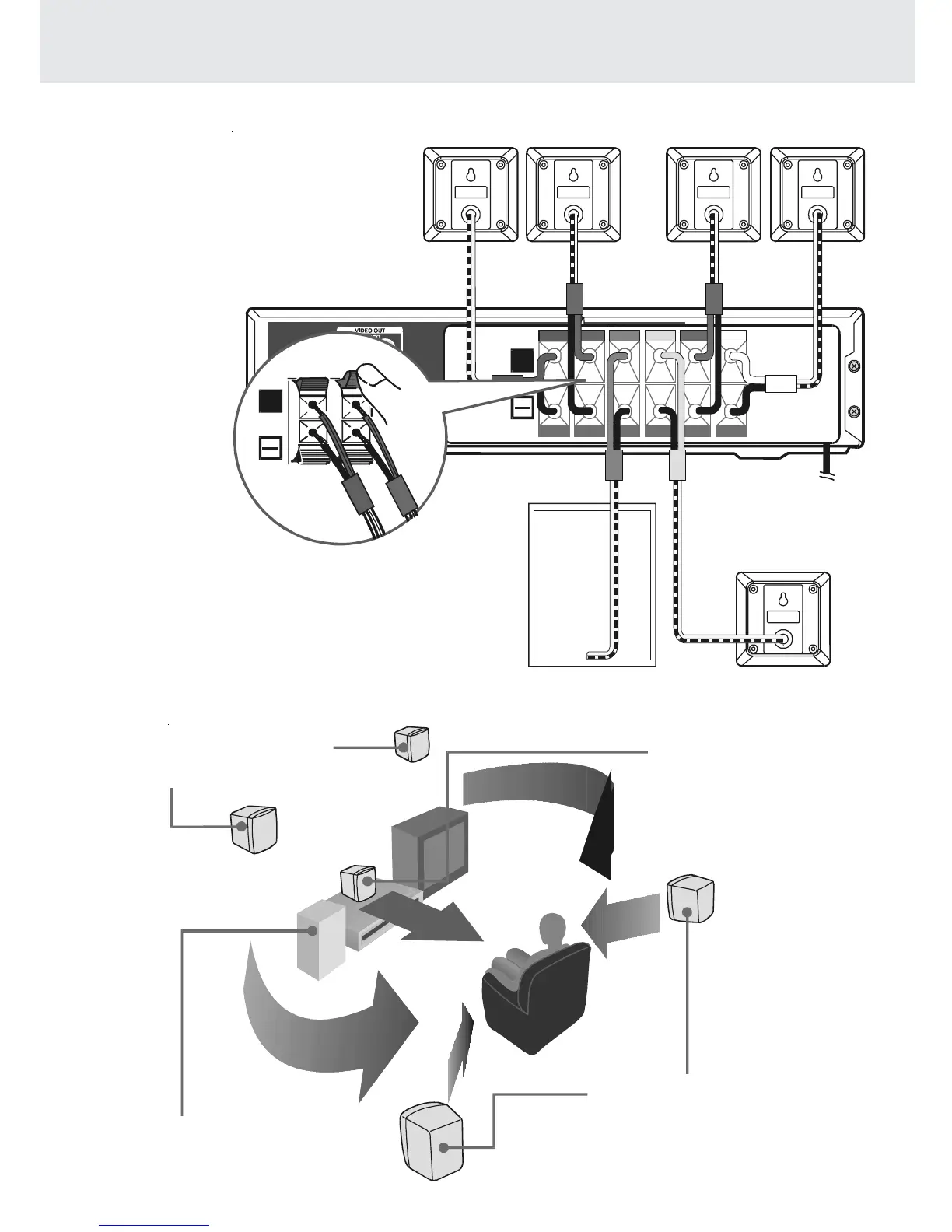

D. Connecting the speakers &
subwoofer
The speaker cords have been color-coded to
simplify connection. Just plug the POSITIVE
(+) and NEGATIVE (-) ends of each speaker
wire into the corresponding jacks on the rear
of the Unit, matching the color tube on the end
of the speaker wire to the color-coded
connector.
E. Positioning the speakers and subwoofer
CENTER
Place on the top of or
below the TV.
REAR SPEAKERS
Place right beside or slightly
behind your listening position,
and a little higher than your ears.
SUBWOOFER
Can be placed anywhere.
FRONT SPEAKERS
Place on both sides of the TV,
equal distances apart.
To wall outlet
FRONT (RIGHT) REAR (RIGHT)
SUBWOOFER
REAR (LEFT)
CENTER
FRONT (LEFT)
IMP. 6 ohm
RIGHT LEFT
IMP. 6 ohm
IM P. 3 oh m
FRONT FRO NTREAR REAR
SUBWOOFER CENTER
+
+
To Next Page
