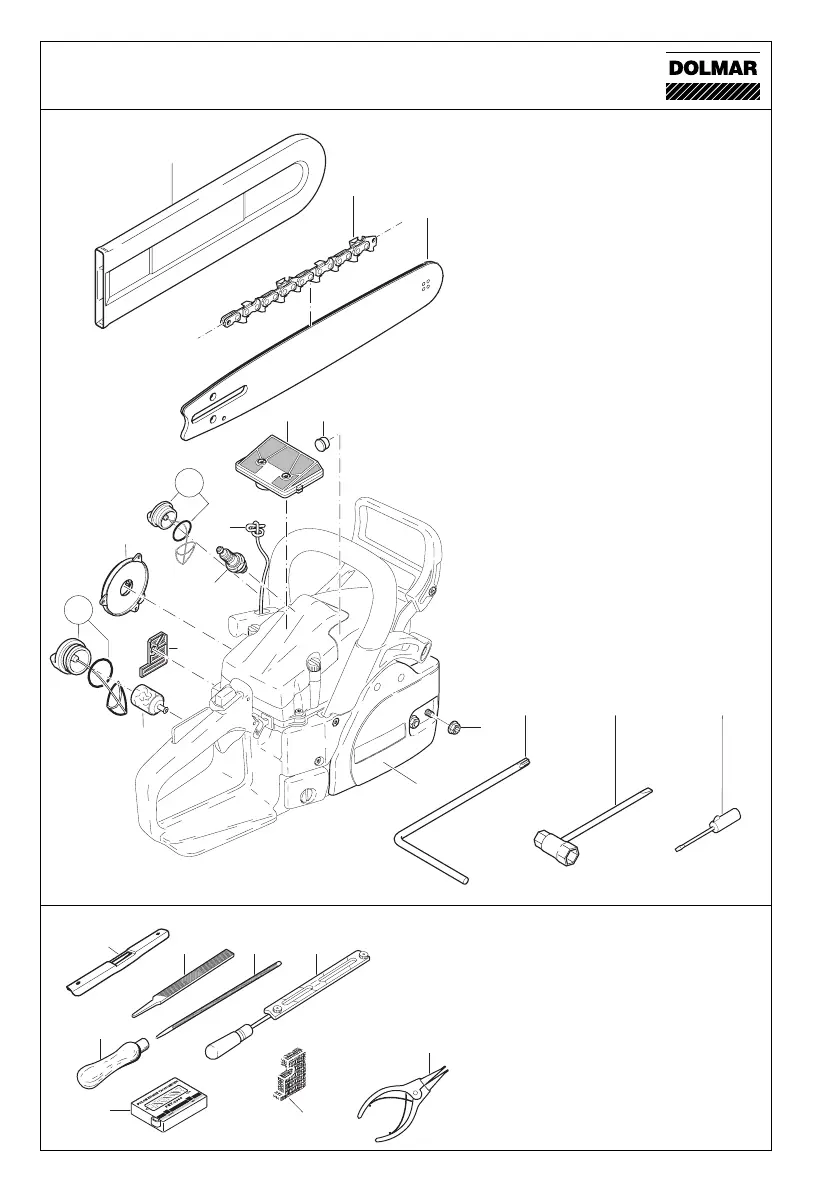

Dolmar 111 - Chainsaw Spare Parts List

24
12
13
17
10
11
18
19
16
15 146
9
8
7
3
2
1
20
21
2223 24
27
28
25
5
4
Extract from the spare parts list
Use only original DOLMAR parts. For repairs and
replacement of other parts, see your DOLMAR service centre.
Pos. DOLMAR-No. Qty. Denomination
1 415 033 631 1 Sprocket nose bar .325", 13" (33 cm)
415 038 631 1 Sprocket nose bar .325", 15" (38 cm)
415 045 631 1 Sprocket nose bar .325", 18" (45 cm)
1 411 907 650 1 Sprocket nose bar 3/8", 15"
411 909 650 1 Sprocket nose bar 3/8", 18"
2 528 086 056 1 Saw chain .325" for 13"
528 086 064 1 Saw chain .325" for 15"
528 086 072 1 Saw chain .325" for 18"
2 523 093 056 1 Saw chain 3/8" for 15"
523 093 064 1 Saw chain 3/8" for 18"
2 528 099 056 1 Saw chain 3/8" for 15"
528 099 064 1 Saw chain 3/8" for 18"
3 952 010 130 1 Chain protection for 13"-15"
952 020 140 1 Chain protection for 18"
4 027 213 571 1 Sprocket guard, cpl.
5 923 208 004 2 Hexagonal nut M8
6 941 719 131 1 Universal wrench SW 13/19
7 963 601 121 1 Suction head
8 965 603 021 1 Spark plug
9 020 173 202 1 Air Þ lter
10 965 451 901 1 Fuel tank cap, cpl.
11 963 232 045 1 O-Ring 31x4,5 mm
12 010 114 032 1 Oil tank plug, cpl.
13 963 100 051 1 Gasket
14 944 340 001 1 Carburetor screwdriver
(only in delivery for model 115, 115 H)
15 940 827 000 1 Offset screwdriver
16 108 164 020 1 Starter cable
17 020 163 031 1 Return spring with housing
18 020 173 011 1 PreÞ lter
19 965 404 230 1 Plug
Accessories (not delivered with the chain saw)
20 953 100 090 1 Chain gauge
21 953 004 010 1 File handle
22 953 003 100 1 Round Þ le, dia. 4,5 mm
953 003 070 1 Round Þ le, dia. 4,8 mm
953 003 040 1 Round Þ le, dia. 5,5 mm
23 953 003 060 1 Flat Þ le
24 953 030 030 1 File holder 3/8"
953 030 020 1 File holder .325"
25 950 233 210 1 Tachometer
27 020 173 061 1 Snow Þ lter
28 946 101 010 1 Circlip pliers
- 020 173 300 1 Air Þ lter (Robkoß ok)
- 949 000 035 1 Combined can
(for 5l fuel, 2.5l chain oil)
109, 109 HappyStart
111, 115, 115 H
