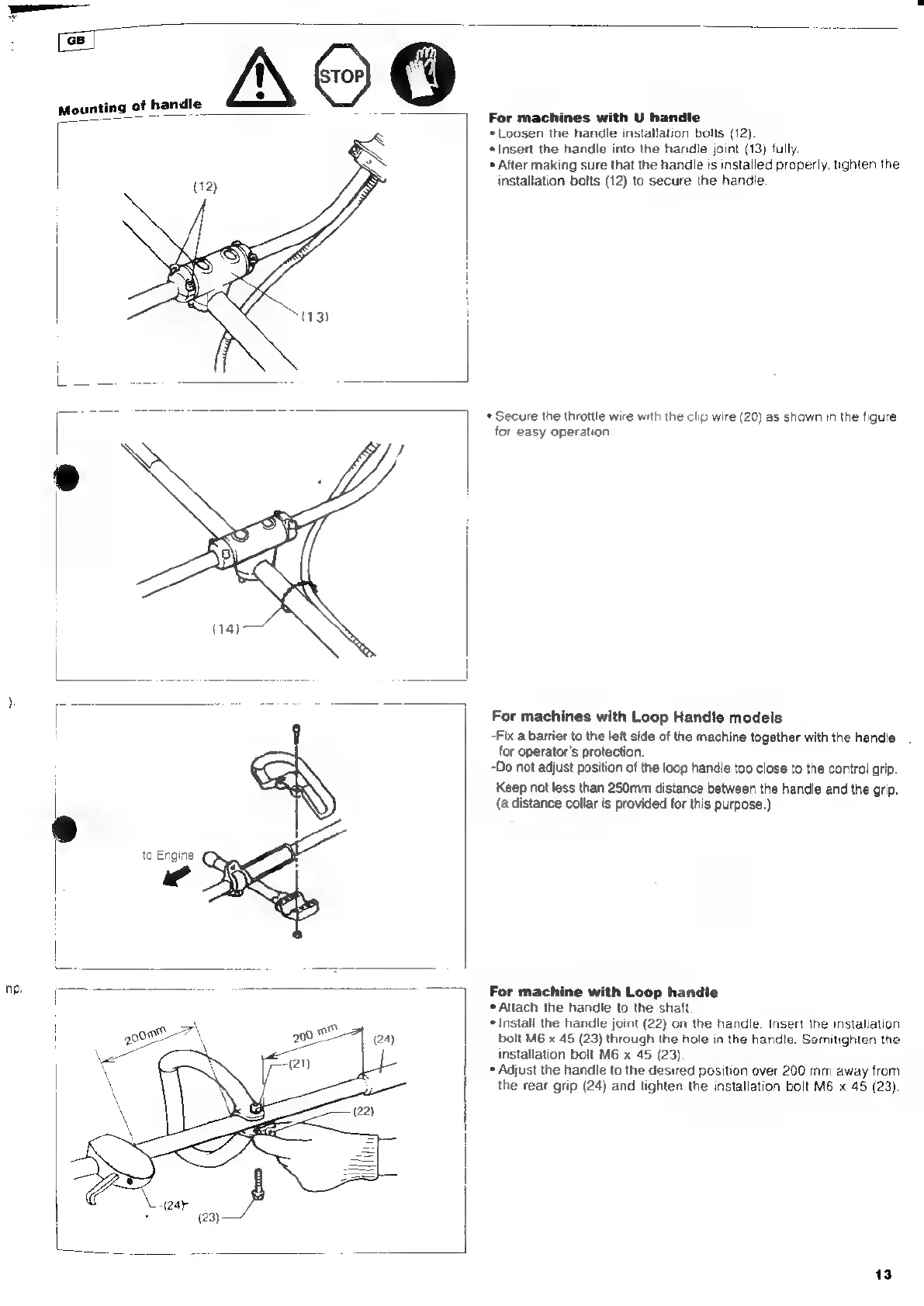

Dolmar MS-250 - Mounting of handle; Handle mounting for U handle machines; Handle mounting for Loop handle models

For machines with U handle
e Loosen the handle installation bolts (12).
Insert the handle into the handle joint (13) fully.
* After making sure that the handle is installed properly, ughten the
installation bolts (12) ta secure the handle.
* Secure the throttle wire with the clip wire (20) as shown in the figure
for easy operation
For machines with Loop Handle modeis
-Fix a barrier to the left side of the machine together with the handle
for operator's protection.
-Do not adjust position of the loop handle too close to the control grip.
Keep not less than 250mm distance between the handle and the grip.
(a distance collar is provided for this purpose.)
For machine with Loop handle
* Attach the handie to the shaft
e Install the handle joint (22) on the handle. Insert the installation
bolt M6 x 45 (23) through the hole in the handle. Semitighten the
installation boll M6 x 45 (23)
* Adjust the handle to the desired position over 200 rm away from
the rear grip (24) and tighten the installation bolt M6 x 45 (23)
13
