Dolmar MS-2501 - Page 15

lions
nol
азе
(2).
ca
in
case
of
guard
specijicaiions
for
both
metal
blade
and
cord
cutter
—

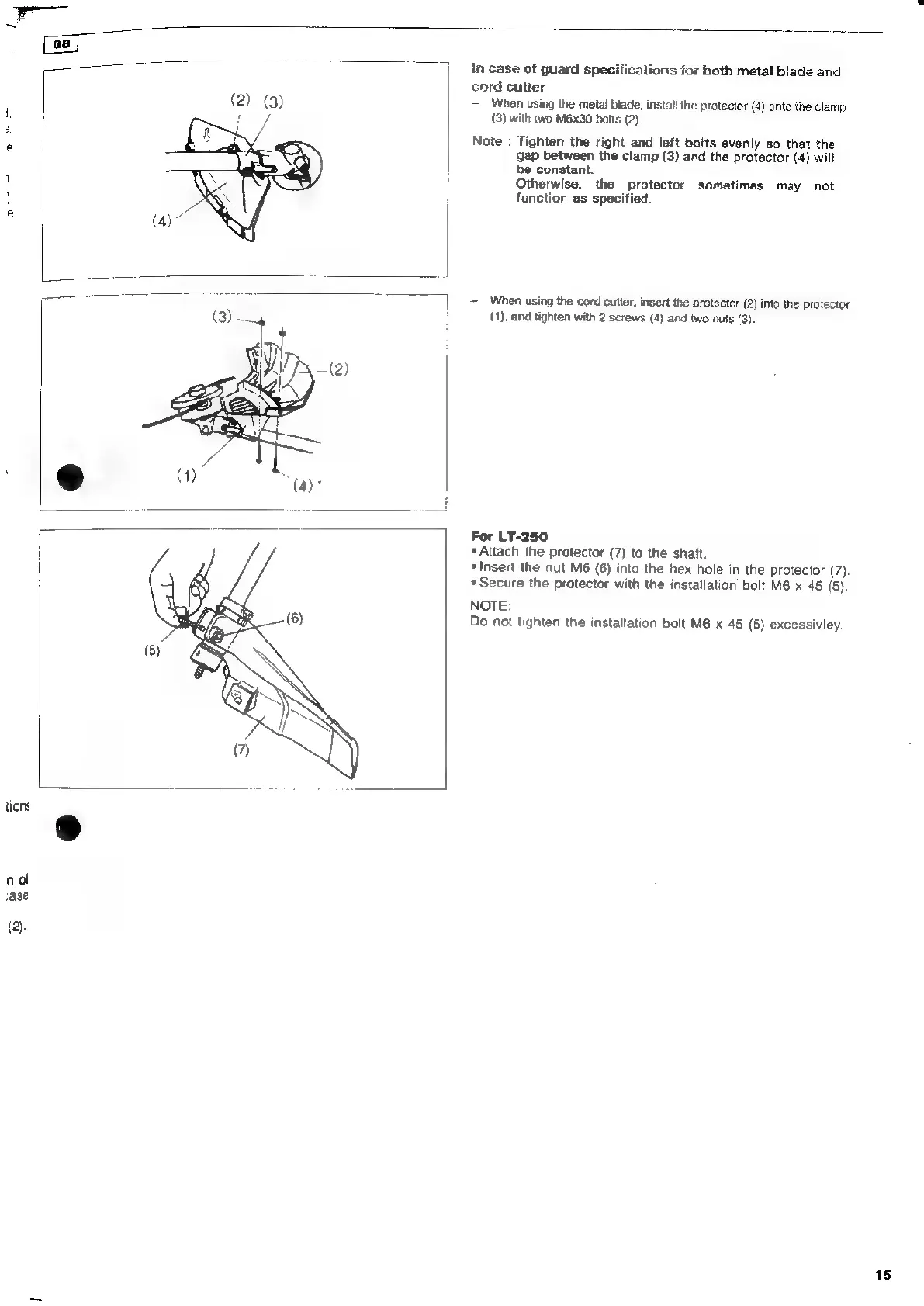

When
using
the
metal
blade,
install
the
protector
(4)
onto
the
clamp
(3)
with
two
M6x30
bolts
(2).
Note : Tighten the right and left bolts evenly so that the
gap between the clamp (3) and the protector (4) wilt
be constant.
Otherwise, the protector sometimes may not
function as specified.
=
When
using
the
cord
cutter,
insert
the
protector
(2)
into
the
protector
(1),
and
tighten
with
2
screws
(4)
and
two
nuts
(3).
For LT-250
* Attach the protector (7) to the shaft.
«Insert
the
nut
M6
(6)
into
the
hex
hole
in
the
protector
(7).
*
Secure
the
protector
with
the
installation
bolt
M6
x
45
(5)
NOTE:
Do
not
tighten
the
installation
bolt
M6
x
45
(5)
excessivley.
15
