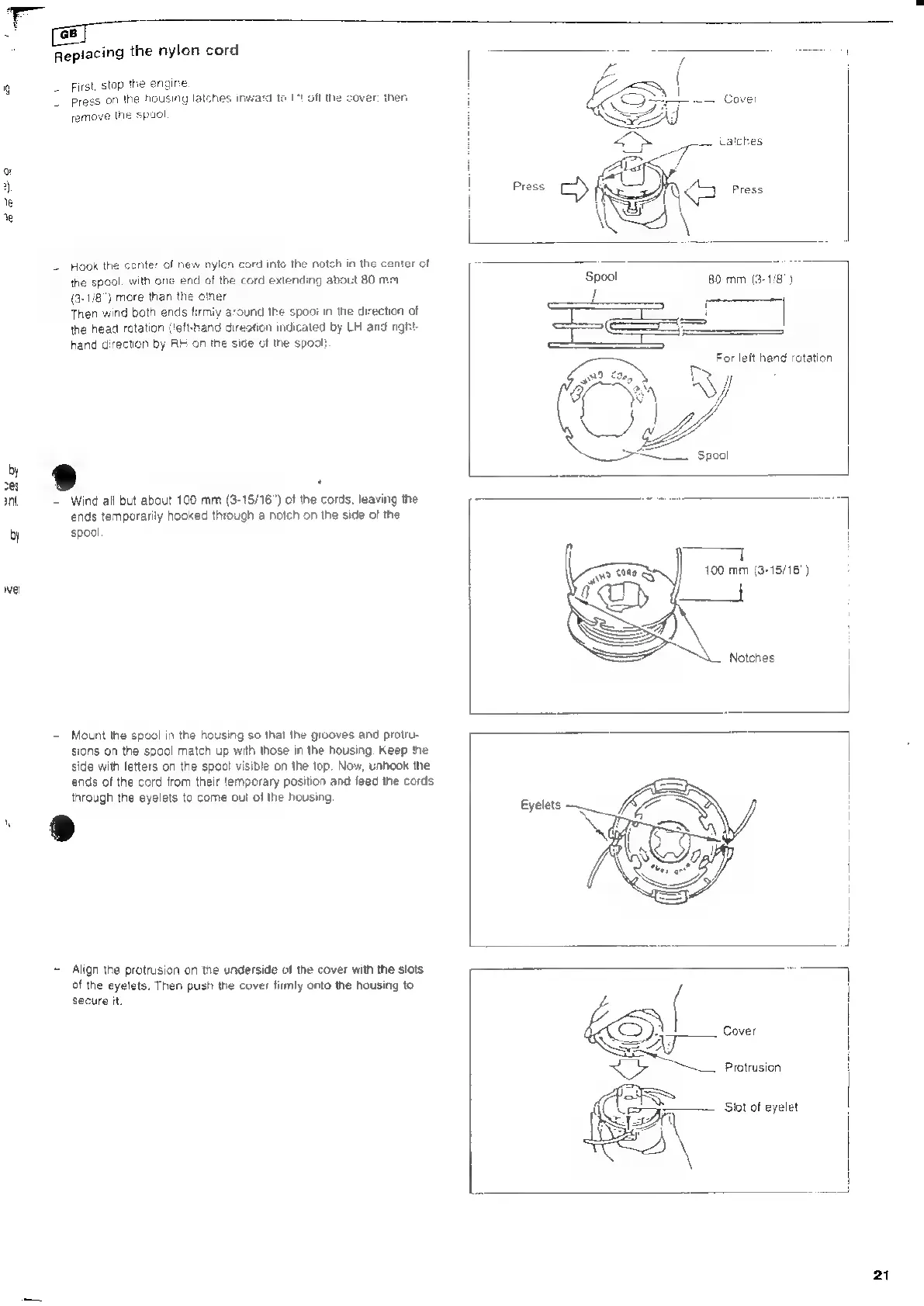

Replacing
the
nylon
cord
First,
stop
the
engine
Press
on
the
housing
latches
inward
to
1%
off
the
cover:
then
remove
the
spool
Hook
the
center
of
new
nylon
cord
into
the
notch
in
the
center
cf
the
spool.
with
one
end
of
the
cord
extending
about
80
mm
(3-118°)
more
than
the
omer
Then
wind
both
ends
firmiy
around
the
роо
in
the
direction
of
the
head
rotation
(left-hand
direztion
indicated
by
LH
and
nght-
hand
direction
by
RH
on
the
side
of
the
spool}
-
Wind
all
but
about
100
mm
(3-15/16")
of
the
cords,
leaving
the
ends
temporarily
hooked
through
a
notch
on
the
side
of
the
spool
-
Mount
the
spool
in
the
housing
so
that
the
grooves
and
protru-
sions
on
the
spool
match
up
with
those
in
the
housing.
Keep
the
side
with
letters
on
the
spool
visible
on
the
top.
Now,
unhook
the
ends
of
the
cord
from
their
temporary
position
and
feed
the
cords
through
the
eyelets
to
come
out
of
the
housing.
~
Align
the
protrusion
on
the
underside
of
the
cover
with
the
slots
of
the
eyelets.
Then
push
the
cover
firmly
onto
the
housing
to
secure
it.
Press
80
mm
(3-1:8°)
Su
ze
|
d
For
left
hand
rotation
у
Notches
|
XE
II
\
Cover
T.
Protrusion
|
|
|
|
|
Siot
of
eyelet
|
|
|
