Technical Information
Board revision history
The following table gives a general overview of the hardware revision history.
Adapter card revision
Capabilities
MXH940-AA
/MH95x-AA
• Initial prototype, only support for FireFly™ Gen4 v1 and FireFly™ Gen3
MXH94x-BB
/MH95x-BB
• Support for FireFly™ Gen3 and FireFly™ V2.
• Current version.
MXH94x-CC
/MH95x-CC
Same as MXH94x-BB /MH95x-BB, optimized for volume manufacturing. Planned spring 2021.
Please reference the MXH94x_MH95x_PCN for details.
Simplified schematics

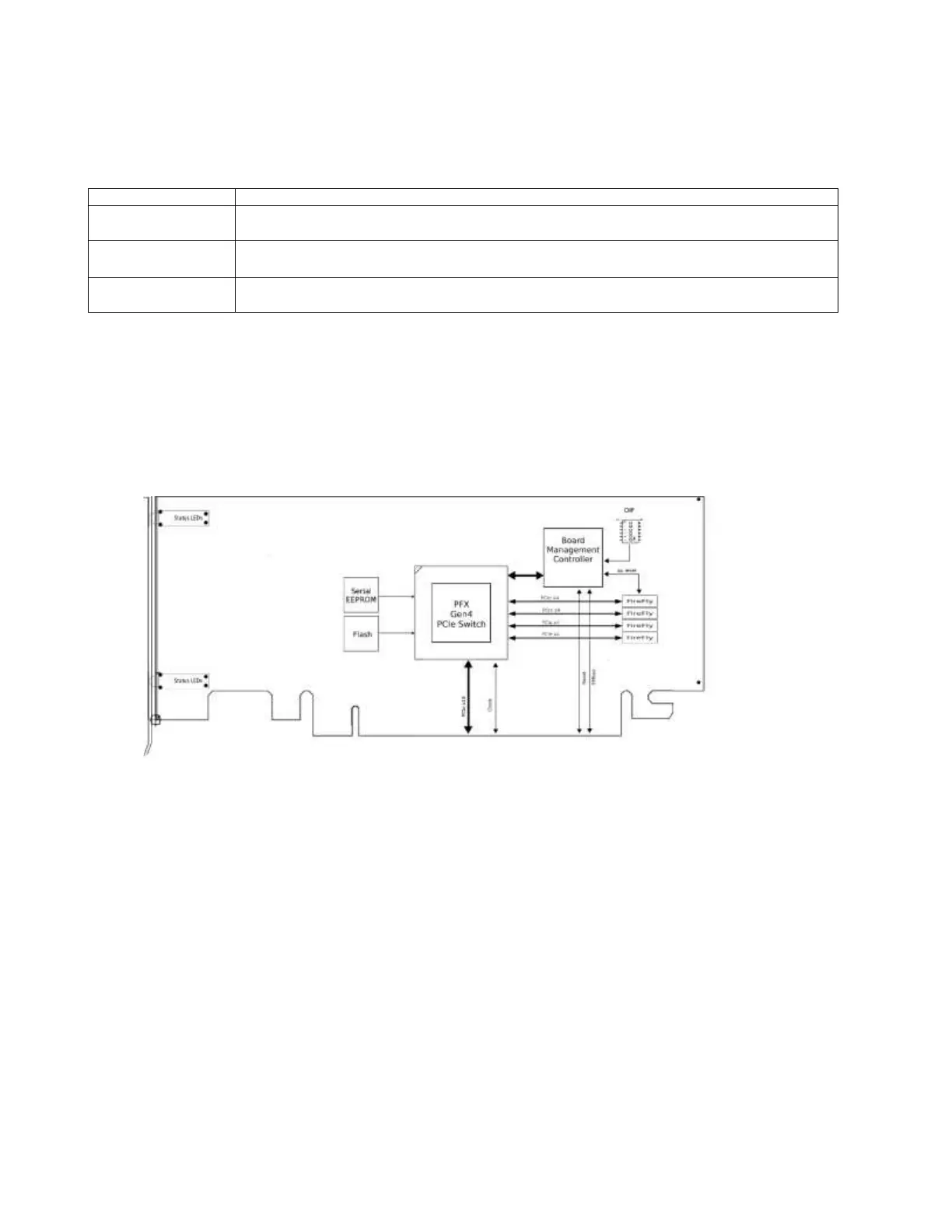

The figure below shows the adapter card simplified schematics. Only the main functions are shown. Number and type of
FireFly™ ’s mounted depends on the product variant.
Figure 3: Adapter card simplified schematics
