3.4.3 Indicator of Light Description
3.4.3.1 Unit Indicator Light Description
Light Unit indicator Description
Status Light
RUN
Light on ：Run
Light off：Stop
Flash
：
Sleeping mode
F/R
Light on：Reverse
Light off：Forward
LO/RE
Light on：Communication control;
Light off：Keypad control
Flash：Terminal control
ALM
Light on ：Fault alarm;
Light off：No fault alarm
Flash：Overload warning
Units Light
Hz
Frequency unit
A Current unit
V
Voltage unit
RPM
Rotating speed unit
% Percentage

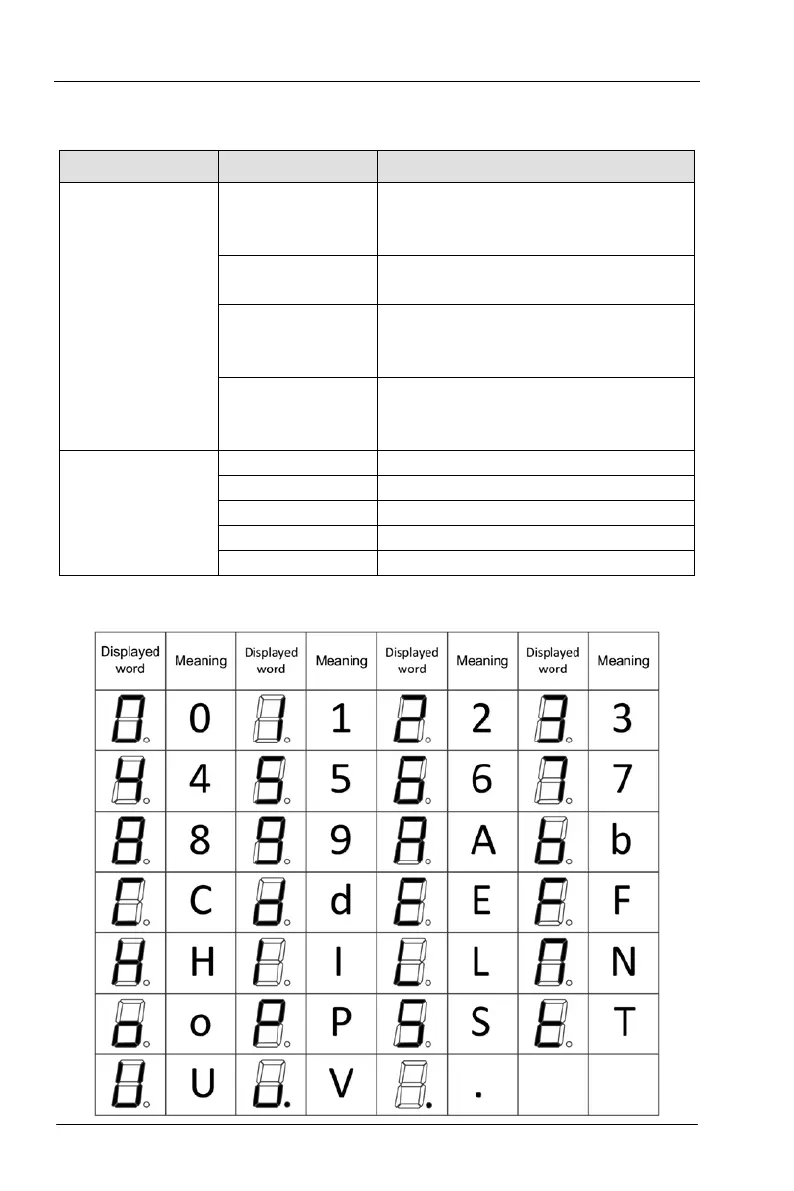

3.4.3.2 Keypad Display Description
