=6=

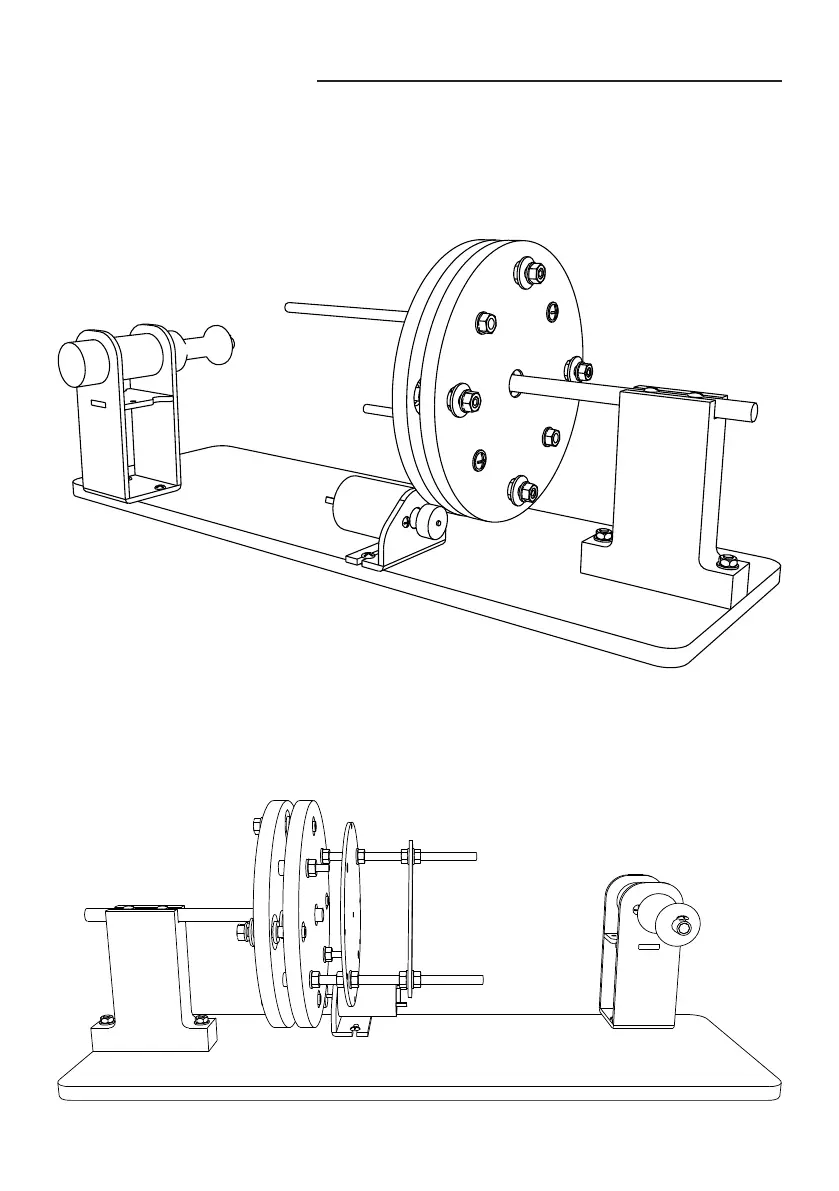

Machine assembly
1. Place the head’s main axle into the support column groove. Fix it with
screws. Try to get into the cut thread.
2. Adjust the friction coupling clamp against the cheek’s butt and tighten drive
motor screws (friction coupling is a rubber roller on the motor’s axle). Check
the motion.
3. Mount the adaptor disk 15 mm away from the head and x it. e disk’s
holes should be positioned exactly opposite to the axles.
4. Mount the crossbar 35-40 mm away from the adaptor disk. Fix the crossbar.
