13
GAS EQGAS EQ
GAS EQGAS EQ
GAS EQ
UIPMENT ASSEMBLUIPMENT ASSEMBL
UIPMENT ASSEMBLUIPMENT ASSEMBL
UIPMENT ASSEMBL
YY
YY
Y

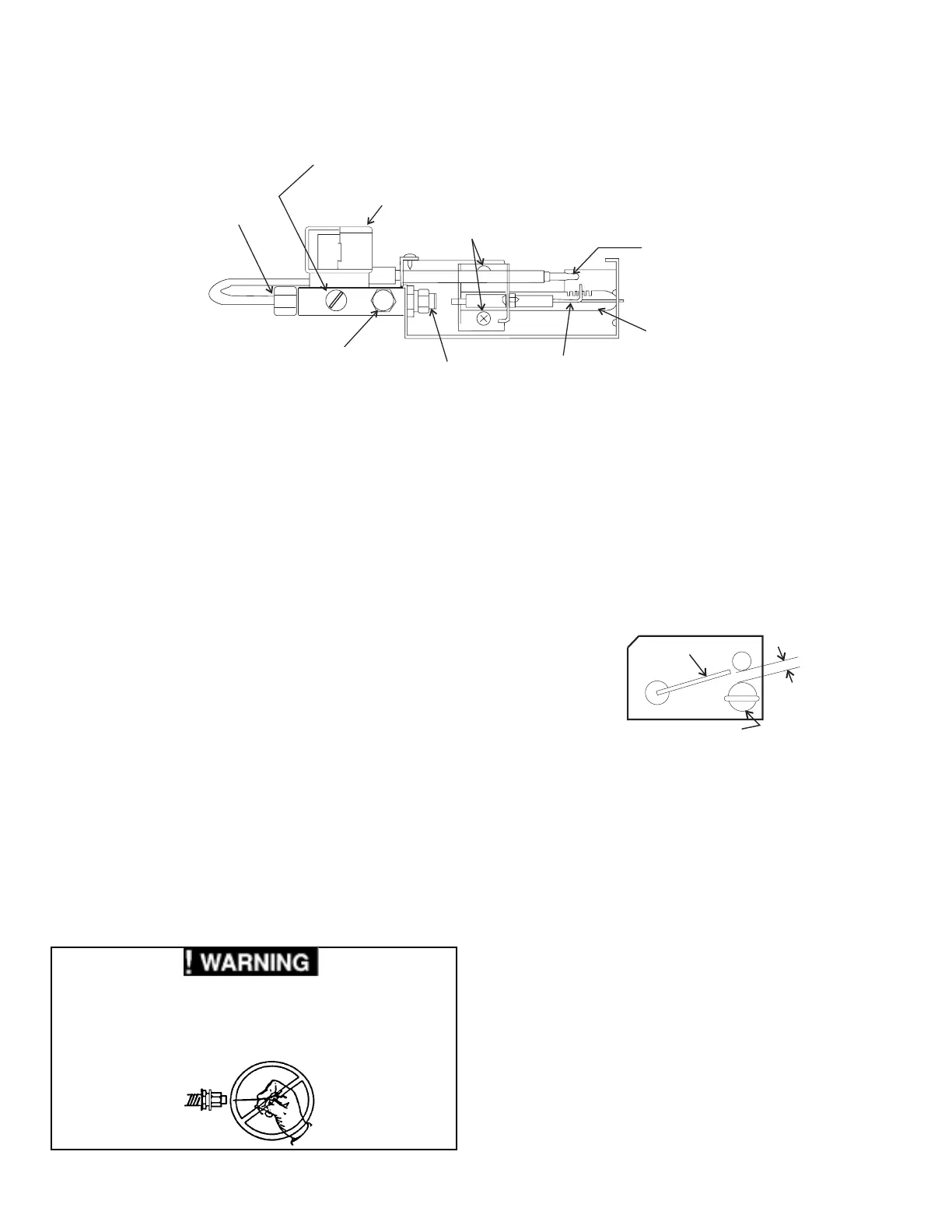

FIG. 12FIG. 12
FIG. 12FIG. 12
FIG. 12
E. Inspect the flue baffle. It should be reasonably clean
and free of soot. Heavy soot formation indicates im-
proper functioning of the burner. The flue and burner
both require cleaning in the following manner:
1) Unplug the refrigerator power cord from the 120 volt
AC outlet (see FIG. 6).
2) Disconnect or shut off the 12 volt power to the
refrigerator.
3) Turn manual shutoff valve to OFF. (See FIG. 6 &
12).
4) Remove cover from the burner housing. (See FIG .
6).
5) Disconnect the wire from the high voltage electrode.
6) Remove the burner mounting screws and remove
the burner assembly.
7) Remove the flue cap from top of flue tube and lift out
the wire and spiral baffle. Clean the flue from the top
using a flue brush. Blowing compressed air into the
flue will not properly clean soot and scale out of the
flue tube. Replace spiral baffle and flue cap.
8) Clean burner tube with a brush. Blow out burner with
compressed air.
9) Before removing burner jet, clean burner area of
soot and scale that fell out of flue tube. Remove the
burner jet. Soak the jet in wood alcohol and blow it
out with compressed air. Reinstall and tighten burner
jet.
DO NOT use a wire or pin when cleaning the burner jetDO NOT use a wire or pin when cleaning the burner jet
DO NOT use a wire or pin when cleaning the burner jetDO NOT use a wire or pin when cleaning the burner jet
DO NOT use a wire or pin when cleaning the burner jet
as damage can occur to the precision opening. Thisas damage can occur to the precision opening. This
as damage can occur to the precision opening. Thisas damage can occur to the precision opening. This
as damage can occur to the precision opening. This
can cause damage to the refrigerator or create a firecan cause damage to the refrigerator or create a fire
can cause damage to the refrigerator or create a firecan cause damage to the refrigerator or create a fire
can cause damage to the refrigerator or create a fire
hazard.hazard.
hazard.hazard.
hazard.
10) Reinstall burner, being careful that the end of the
burner fits into the slot on the burner bracket.
Check to make sure slots are centered under the
flue tube and the thermocouple is positioned prop-
erly (tip of thermocouple extends over two slots of
burner).
11) Be sure to reconnect the wire to high voltage
electrode. Check the electrode for proper location
and gap. (See FIG. 13).
ELECTRODE
1/8" TO 3/16"
(3-5 mm)
12) Turn on manual gas shutoff valve and check all
fittings for leaks.
13) Connect 120 volt power cord to the outlet and
reconnect or turn on the 12 volt DC power.
14) Check LP gas safety shutoff. See
Section A. Instal-
lation, Item 9. Testing LP Gas Safety Shutoff
.
Use a quarter dollar or a slotted screwdriver
to change position
SOLENOID VALVE
BURNER MOUNTING SCREWS
THERMOCOUPL
BURNER
TUBE
SPARK
ELECTRODE
BURNER
PRESSURE TEST
PORT
INLET FITTING
(Section D. Continued . . .)
FIG. 13FIG. 13
FIG. 13FIG. 13
FIG. 13
