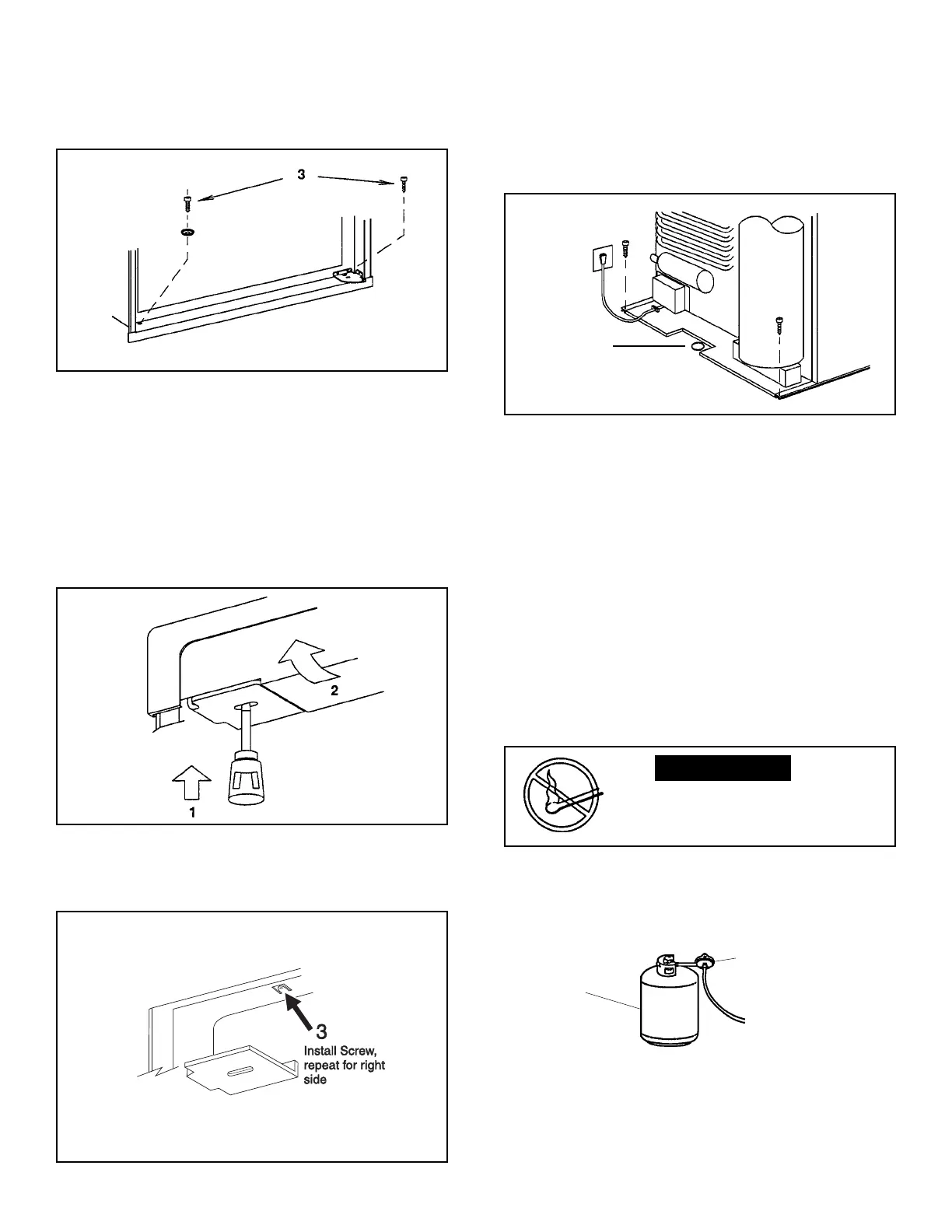

3)When the front strip is in place, install one screw
through the hinge and into the floor. The second
screw is installed with a washer on the opposite
side. (See FIG. 5A)
b.Second: Install the two screws in the top
frame.
1)The top decoration panel must be removed
from the refrigerator before the screws can be
installed. Open refrigerator door and gently
push the tabs out of the hole in the hinge with flat
blade screwdriver. See FIG. 5B.
2)Carefully tilt the top decoration panel and lift up
to remove from top frame. See FIG. 5B.
3)Install the second two screws in the top frame
as shown in FIG. 5C.
FIG. 5B
FIG. 5A
4)Replace the top decoration panel. Be careful
not to pinch the wires. Make sure the tabs snap
back into the holes in the hinge plate.
C.Third: Two screws installed as shown in
rear base. See FIG. 5D.
FIG. 5D
Failure to follow the sequence in securing the refrigerator
in the enclosure can cause leakage between the frame and
cabinet.
Hole for
Drain Water
Hose
FIG. 5C
8.GAS CONNECTION
Hook up to the gas supply line is accomplished at the
manual gas shutoff valve, which is furnished with a 3/8"
SAE (UNF 5/8" – 18) male flare connection.
A backupA backup
A backupA backup
A backup
wrench must be used when tightening the gas connec-wrench must be used when tightening the gas connec-
wrench must be used when tightening the gas connec-wrench must be used when tightening the gas connec-
wrench must be used when tightening the gas connec-
tions.tions.
tions.tions.
tions. All completed connections should be checked for
leaks with a noncorrosive leak detector. (See FIG. 6 – Gas
tubing may have a different orientation than shown).
! !
! !
!
WW
WW
W
ARNINGARNING
ARNINGARNING
ARNING
DO NOT USE A FLAMEDO NOT USE A FLAME
DO NOT USE A FLAMEDO NOT USE A FLAME
DO NOT USE A FLAME
TO CHECK FOR GAS LEAKS.TO CHECK FOR GAS LEAKS.
TO CHECK FOR GAS LEAKS.TO CHECK FOR GAS LEAKS.
TO CHECK FOR GAS LEAKS.
The gas supply system must incorporate a pressure
regulator to maintain a supply pressure of not more than
13-1/2 inches water column (static) no load.
PRESSURE
REGULATOR
LP GAS
CYLINDER
TO
REFRIGERATOR
