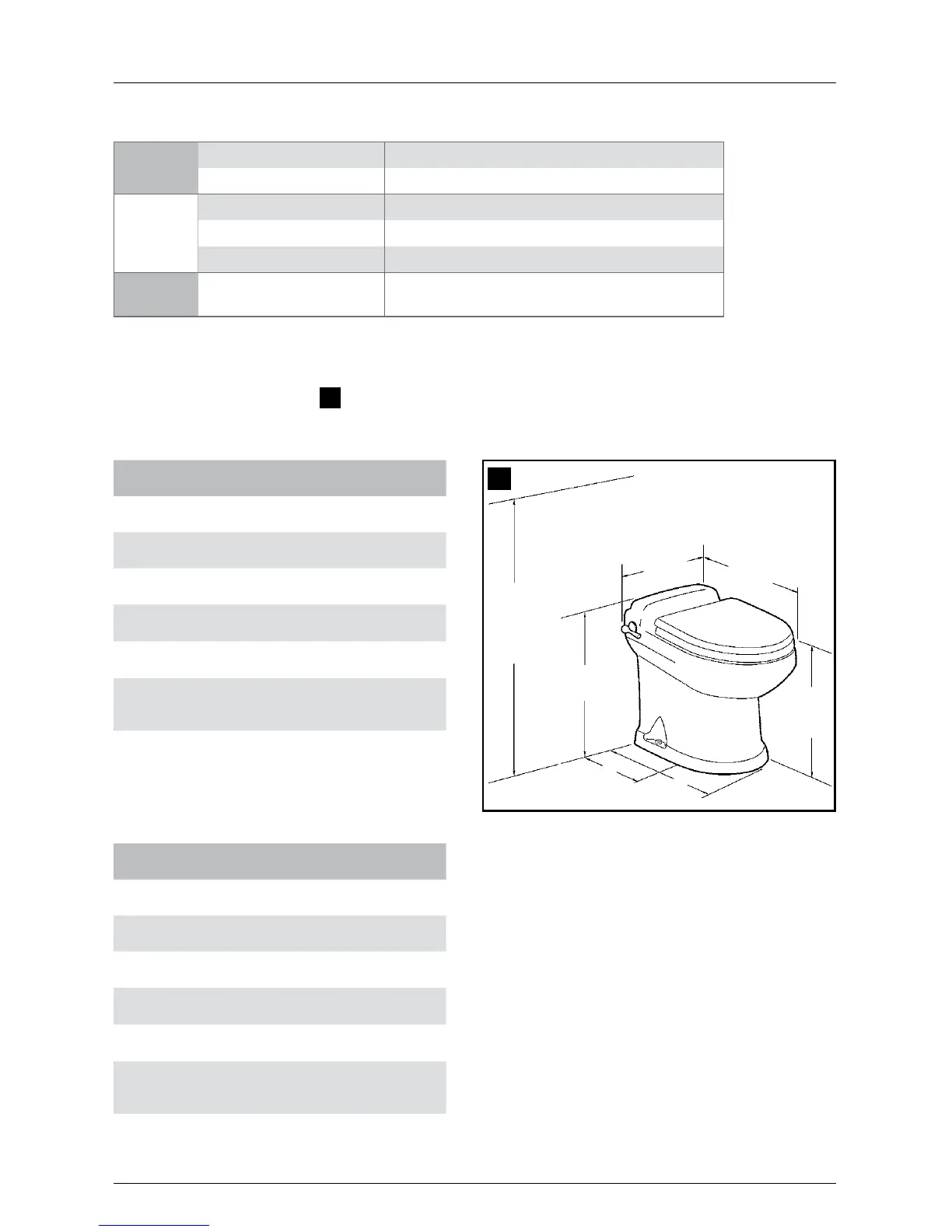

Specifications Dometic 4300/4400 Series Toilets
4.3 Dimensions
(g.
1
) All dimensions may vary ±3/8 inch (10 mm)
4.2 Minimum System Requirements
Electrical
Circuit breaker 2amps/12VDC
Wiring 14 gauge stranded copper
Water
Supply
Fitting 0.5in.NPT
Flow rate 4 gpm/15 lpm minimum at toilet
Maximumowpressure 40PSI/276kPa
Discharge Fitting
4-boltoor(closet)ange.3-in.(76mm)ID
ABSorPVCconnectiontoholdingtank
Specications are subject to change without notice.
Ref. Dimension
A 19 in. / 483 mm
B 14.75 in. / 375 mm
C 21.5 in. / 546 mm *
D 17.75 in. / 451 mm - seat height
E 17.125 in. / 435 mm *
F 10 in. / 254 mm - centerline
rough-in *
G 33.75 in. / 857 mm - seat lid up
Ref. Dimension
A 19 in. / 483 mm
B 15.875 in. / 403 mm
C 21.5 in. / 546 mm *
D 17.75 in. / 451 mm - seat height
E 17.125 in. / 435 mm *
F 10 in. / 254 mm - centerline
rough-in *
G 33.75 in. / 857 mm - seat lid up
Models with wall-mounted flush touchpad
Models with flush handle
A
B
C
D
E
F
G
1
* For toilet models with hand sprayer, add 0.25 in. /
6.3 mm to dimensions C, E, F to allow small space
between toilet and wall.

Dometic 4300 Series Specifications

General

Brand	Dometic
Model	4300 Series
Category	Toilets
Language	English
