Dometic 4300/4400 Series Toilets Maintenance/winterizing/service
6.5 Troubleshooting guide

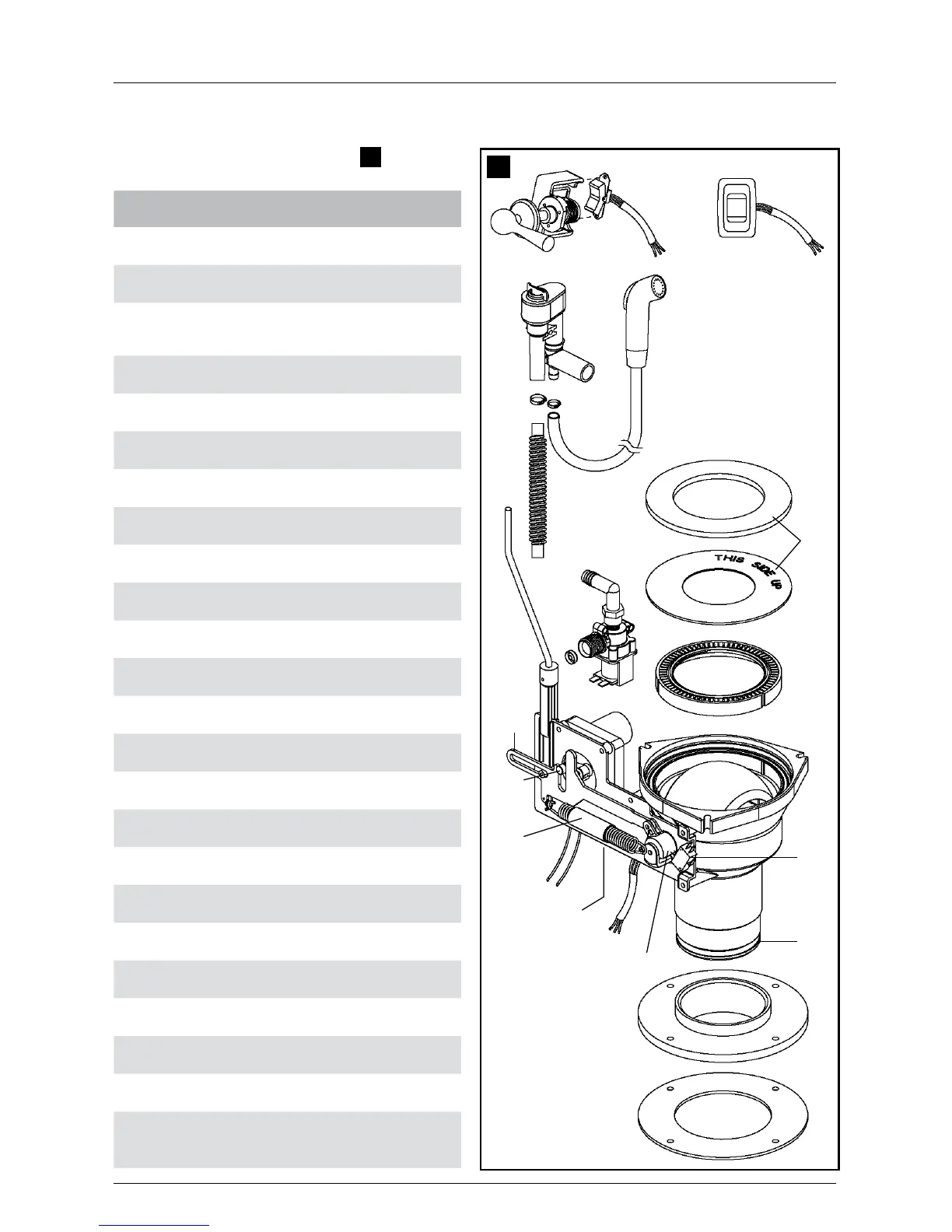

Toilet base components (g.
4
)
Ref. Description
A Flush handle (4300 series)
B Flush switch (4400 series)
C Handsprayer(optional–notonall
models)
D Vacuumbreaker
E Bowlandushballseals
F Seal plate
G Flush ball
H Cam switch (adjustable)
I O-ring
J Floorangeadapter
K Flange adapter seal
L Rotorshaftcam
M Flush switch cable (4400 series)
N Terminal block (opposite side)
O Powerwires
P Flush spring
Q Drivearm
R Drivelinkage
S Flush ball drive motor
T Water valve
U Screen
V Manualushlever
W Bowl water supply hose
Refertocompletepartslist(packedseparately)
for additional information.
A B
CD
E
F
G
H
I
J
K
L
M
N
O
P
Q
R S
TUV
W
