TO OPEN AWNING:
Loosen
Knob
Sunchaser:
Squeeze
Slide
Jne rafter arm up until it snaps
into place. Pull
down and out on
the sliding rafter to remove slack
from the fabric, and tighten the
black aBjustment knob. Repeat for
other side.
8
8500 I 9000 I:
Flip
Slide the
pull strap to
the right end of the
tube, and wrap as
shown.
~
Pull Uf
desire(
Swing
in hdle
•
Ensure the lock lev1
up" position prior to
from coach. Failure
the lock mechanism
•
During l~ght rain, lower end opposite from
door
to shed water and prevent pooling.
Whenever
heavy 01
anticipated, or you
tended, it is best to 4
a result of weather i

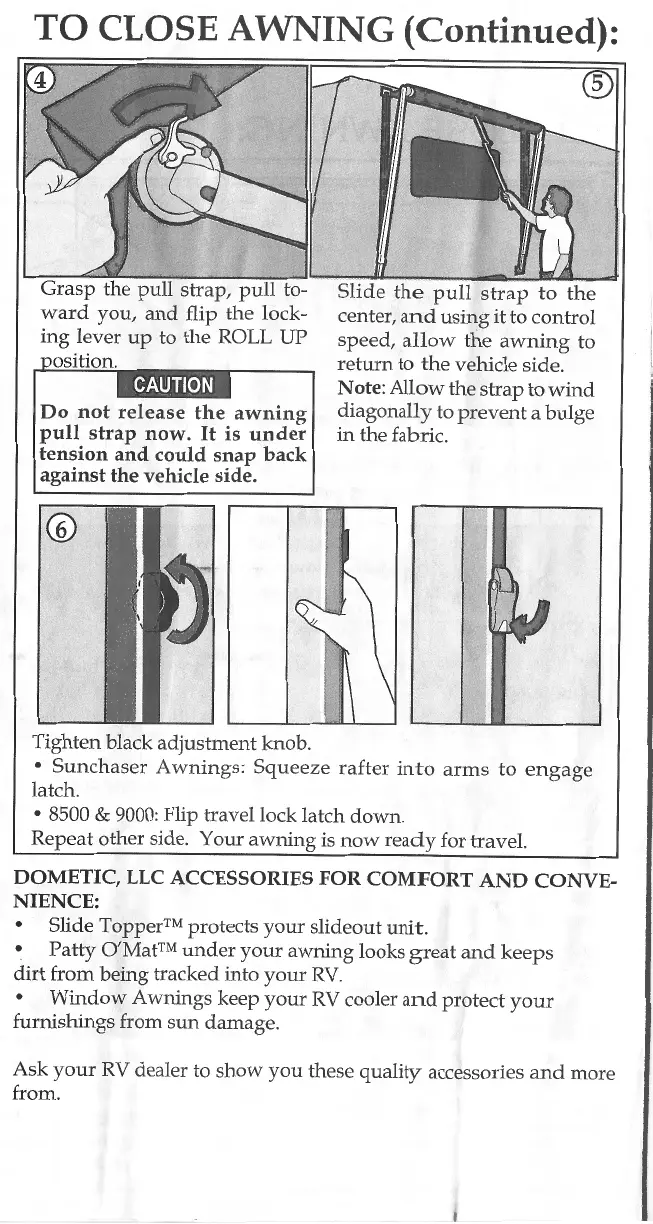

TO CLOSE AWNING (Continued):
•' 7' - ;;;ma.>- > 1 ®
Grasp the pull strap, pull to-
ward you, and flip the lock-
ing lever up to the ROLL UP
osition.
Do not release the awning
pull strap now. It is under
tension and could snap back
against the vehicle side.
@
Tighten black adjustment knob.
Slide the pull strap to the
center, and using it to control
speed, allow the awning to
return to the vehicle side.
Note:
Allow the strap to wind
diagonally to prevent a bulge
in the fabric.
•
Sunchaser Awnings: Squeeze rafter into arms to engage
latch.
• 8500
& 9000: Flip travel lock latch down.
Repeat other side. Your awning is now ready for travel.
DOMETIC, LLC ACCESSORIES FOR COMFORT AND CONVE-
NIENCE:
• Slide Topper™ protects
your slideout unit.
• Patty O'Mat™ under your awning looks great and keeps
dirt from being tracked into your RV.
• Window Awnings keep your RV cooler and protect your
furnishings from sun damage .
Ask your RV dealer to show you these quality accessories and more
from.
