Dometic B1900S - B1500 S - B1900 S Wiring Diagram

B1100S - B1500S - B1900S
17
GB
Description
1 Bipolar switch
2 Fan speed commutator
3 Main switch
4 Thermostat
5 Capacitor
6 Capacitor
7 Capacitor
8 Capacitor
9 Thermal switch
10 Resistance
11 Condenser fan
12 Evaporator fan
13 Compressor
14 Starting capacitor
15 4-pin connector
16 4-pin connector
17 3-pin connector

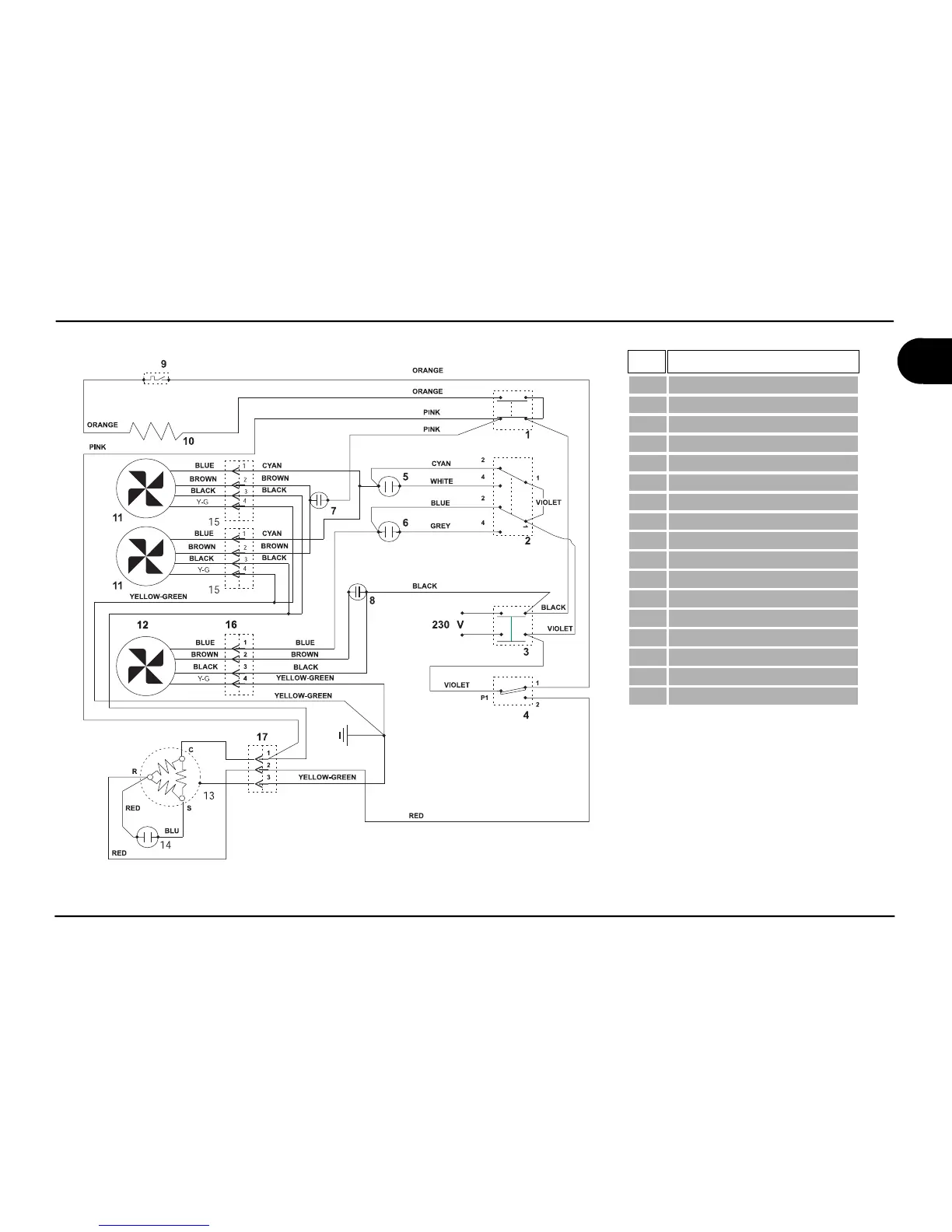

B1500S - B1900S wiring diagram
