Dometic CF SERIES - Operating Panel and DC Power Supply Inlet (CF18)

EN
CF18, CF25, CF35, CF40, CF50 Function description
9

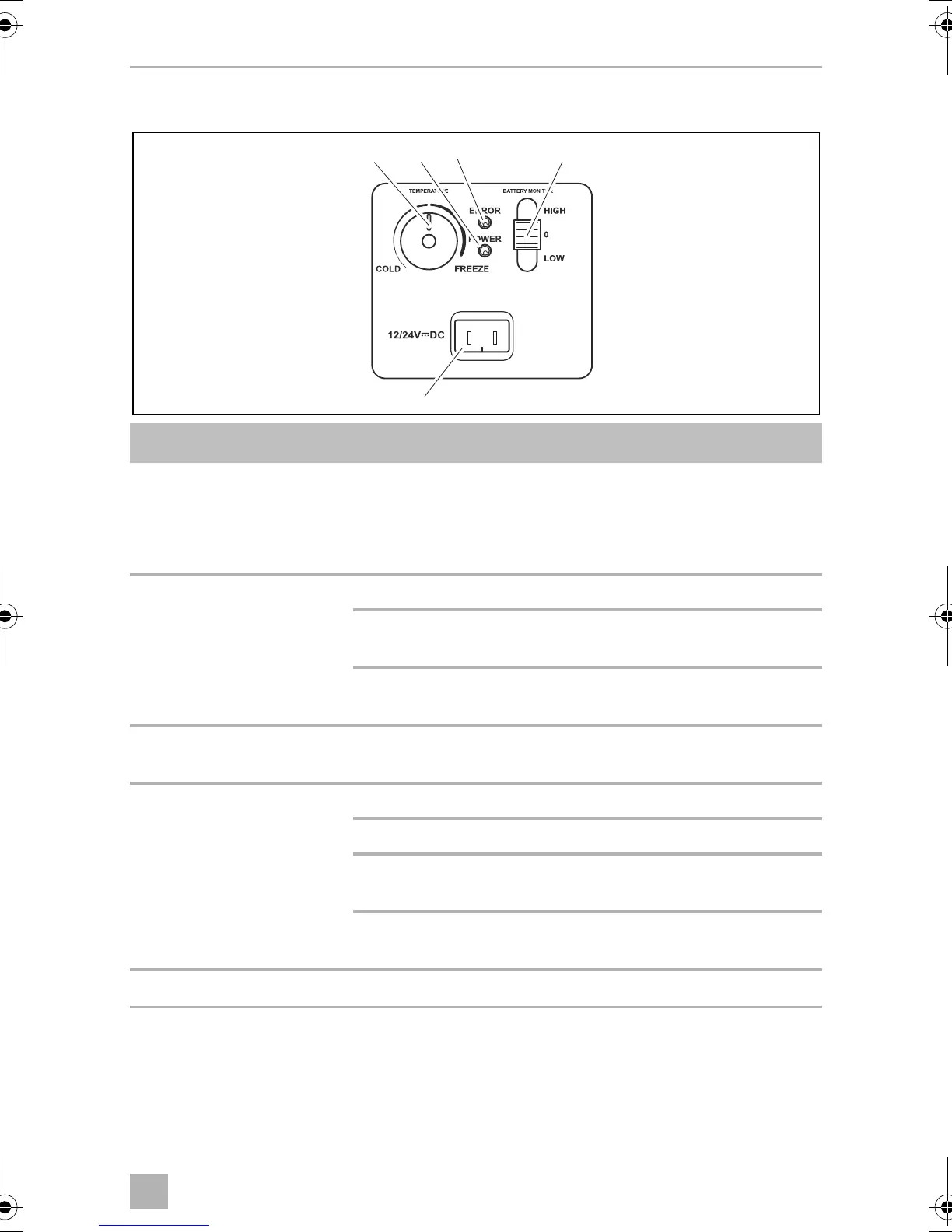

Operating panel and DC power supply inlet (CF18)
Item Description Explanation
1 TEMPERATURE Temperature controller,
cooling temperature at the end positions:
COLD: +10 °C (+50 °F)
FREEZE: –18 °C (0 °F)
2 POWER Status indication
LED lights up green: Device is switched on and
ready for operation
LED lights up yellow: Set temperature has been
reached
3 ERROR LED flashes red: Device is switched on but not
ready for operation
4 BATTERY MONITOR Switch-on device/battery monitor:
0: Device is switched off
HIGH: Device is switched on, battery
monitor is in HIGH mode
LOW: Device is switched on, battery
monitor is in LOW mode
5
12/24 Vg
DC voltage supply inlet
CF 18
1 2 3 4
5
