3. USE
6
IT
EN

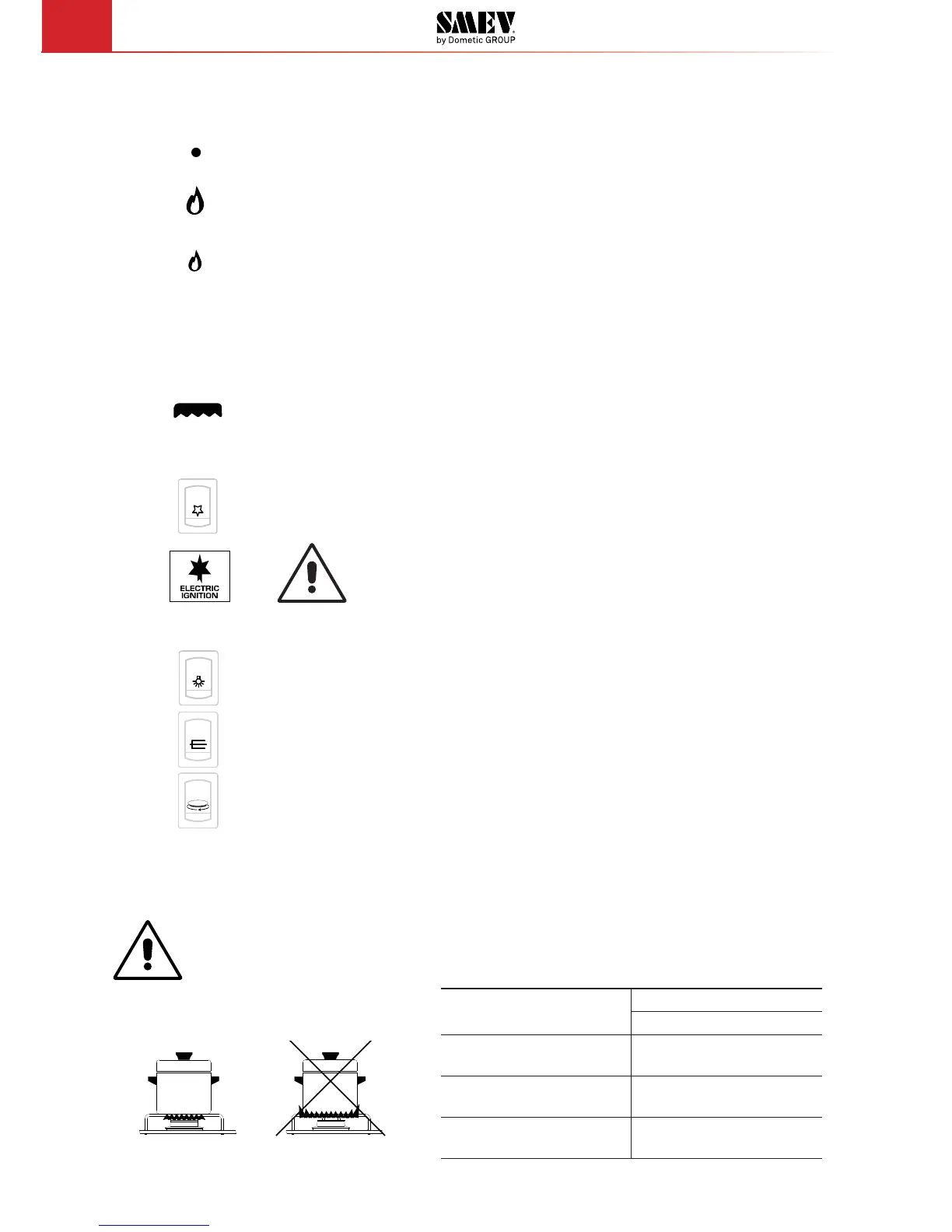

The following symbols are for burner flame regulation and correspond to the position of the knob.
NOTE: Different models could have similar knobs and symbols.
Gas off
High flame
Low flame
0 Electric hotplate off
1 - 2 - 3 - 4 - 5 - 6 Oven and/or electric hotplate temperature
Grill
OTHER SYMBOLS
Electronic ignition pushbutton
CAUTION
This symbol is affixed in a clearly visible position near the
oven control knob for all models fitted with electronic ignition
which is activated by maintaining the control knob pressed.
Light switch
Spit switch
Turntable switch
In CU4... models it is also present as a turntable and light.
3.3 Hotplate
3.3.1 Selecting the burner
WARNING
WARNING
The flame must never extend beyond the edge of the pan. Centre the pan over the
burner ensuring stability on the pan support.
Burner
Pan diameter
Min Max
Auxiliary
Ø 47 mm
6 cm 16 cm
Semi-rapid
Ø 62 mm
16 cm 22 cm
Rapid
Ø 77 mm
16 cm 22 cm
