PRE-INSTALLATION

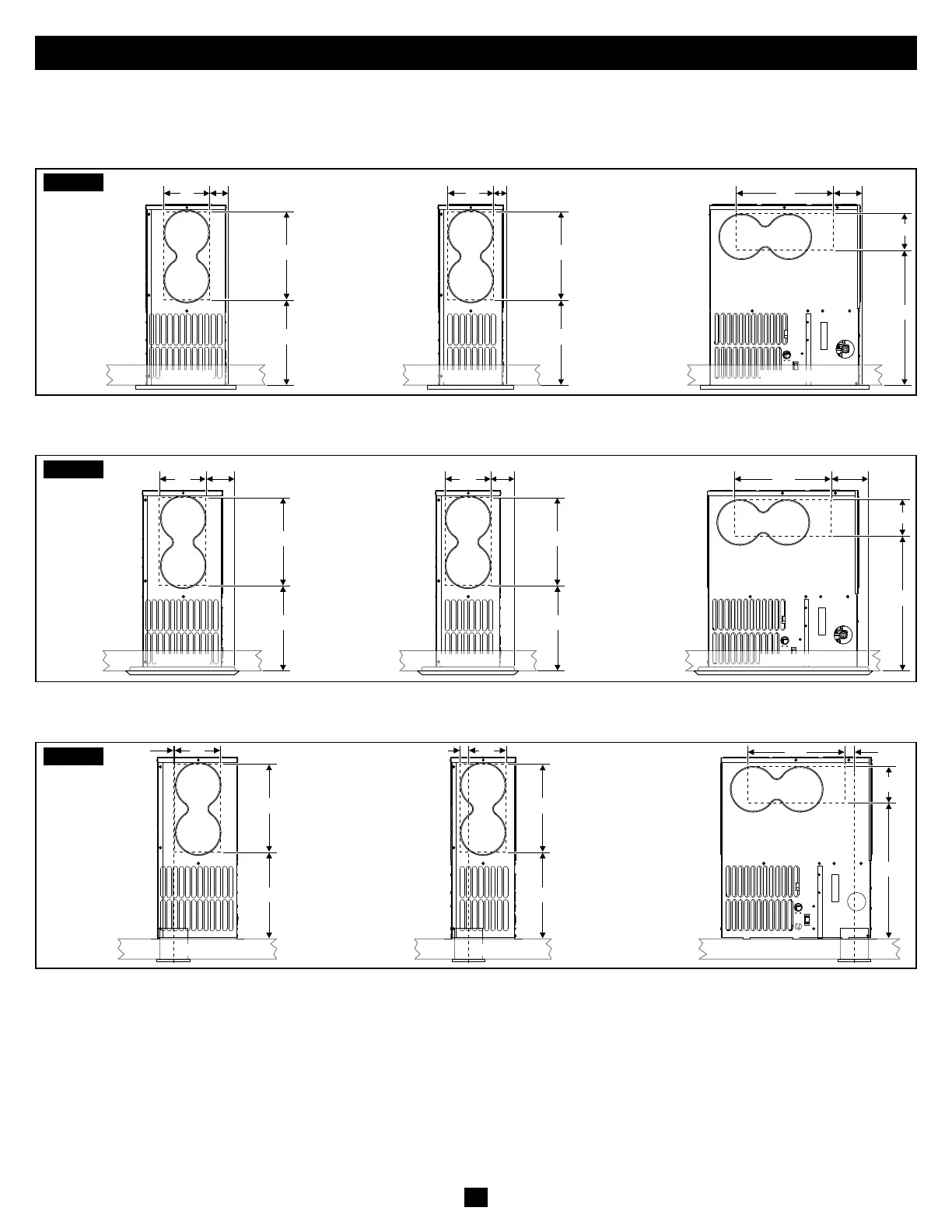

Standard Door Floor Discharge Installations

The dotted lines around the knockouts in the figures represent the floor-hole position.
FIG.1
2.2"
5" 5" 10"
RV Wall
(Top View)
Large Door
Vertical Install
Medium Door
Vertical Install
Medium & Large
Door Horizontal
Install
RV Wall RV Wall
1.2" 3.5"
9.5"
9.75" 9.75"
9.5"
15.1"
4"
Flush Door Floor Discharge Installations
FIG.2
3.5"5" 5" 10"
RV Wall
(Top View)
Large Door
Vertical Install
Medium Door
Vertical Install
Medium & Large
Door Horizontal
Install
RV Wall RV Wall
2.6" 4.9"
9.8"
9.75" 9.75"
9.8"
15.4"
4"
Small Vent Floor Discharge Installations
FIG.3
0.1" 5" 5"
0.9"
1.5"10"
RV Wall
(Top View)
Large Door
Vertical Install
Medium Door
Vertical Install
Medium & Large
Door Horizontal
Install
RV Wall
RV Wall
9.6"9.6"
9.75" 9.75"
15.2"
4"
