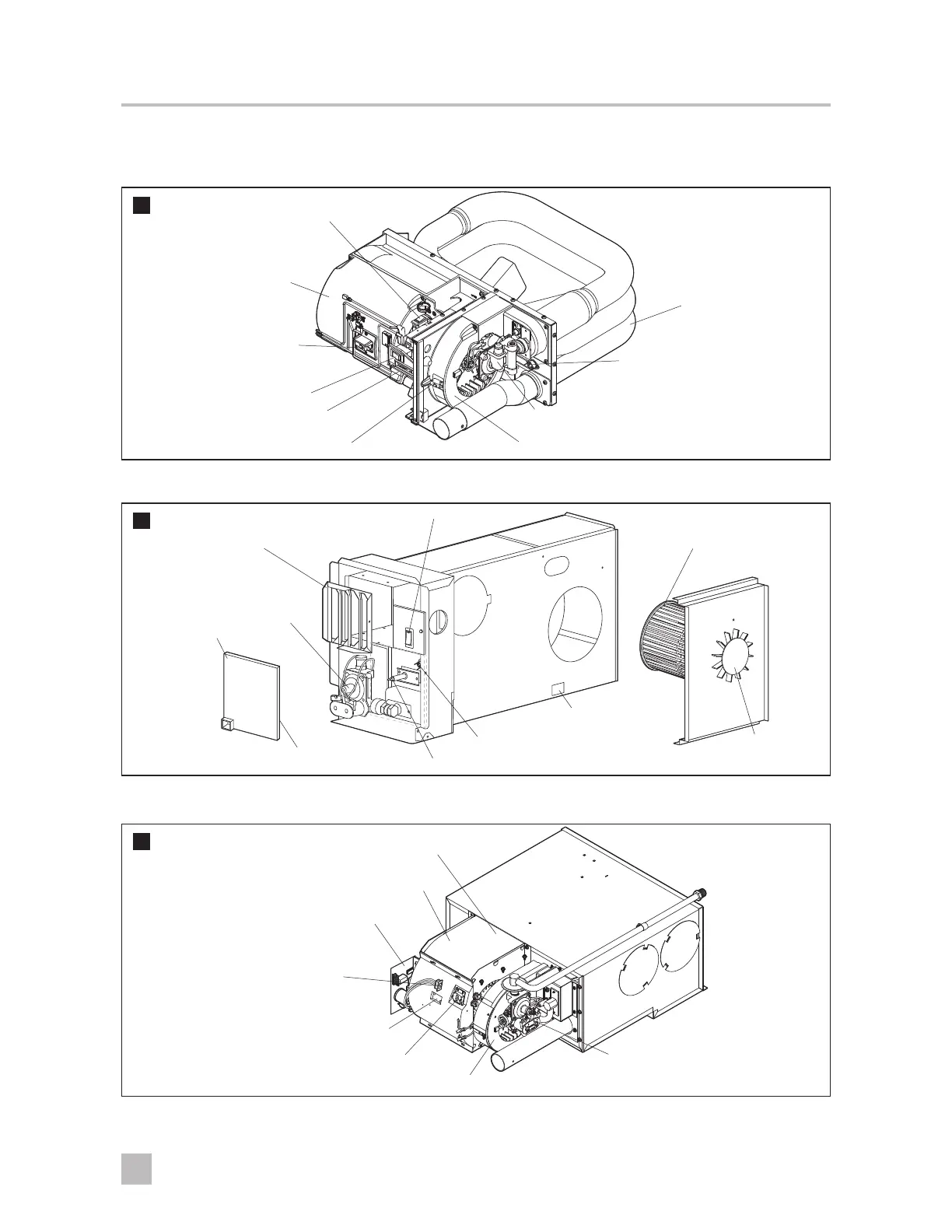

4.3 Component locations
AF/DF Series
3
Possible On/Off Switch/
Circuit Breaker Location
(LD Models)
Blower Wheel
Possible Sail Switch Location
Possible Sail Switch Location
Circuit Board
Possible On/Off Switch/
Circuit Breaker Location
Heat Exchanger
Combustion Wheel
Gas Valve
Limit Switch
79/80 Series
4
Blower Wheel
Electrode
Circuit Board
(back of plate)
Limit Switch
Combustion
Wheel
Sail Switch
(behind panel)
Gas Valve
Circuit Breaker Switch
Circuit Board
Plate (removed)
Directional
Louver
85/89 Series
5
Blower Wheel
Sail Switch
(inside Blower Wheel)
Limit Switch
(behind Blower Wheel)
External Relay
Circuit Breaker Switch
Combustion Wheel
Circuit Board
Gas Valve
