Dometic DM Series - RM1350 Panel Dimensions

7
EN
Refrigerator
RM1350

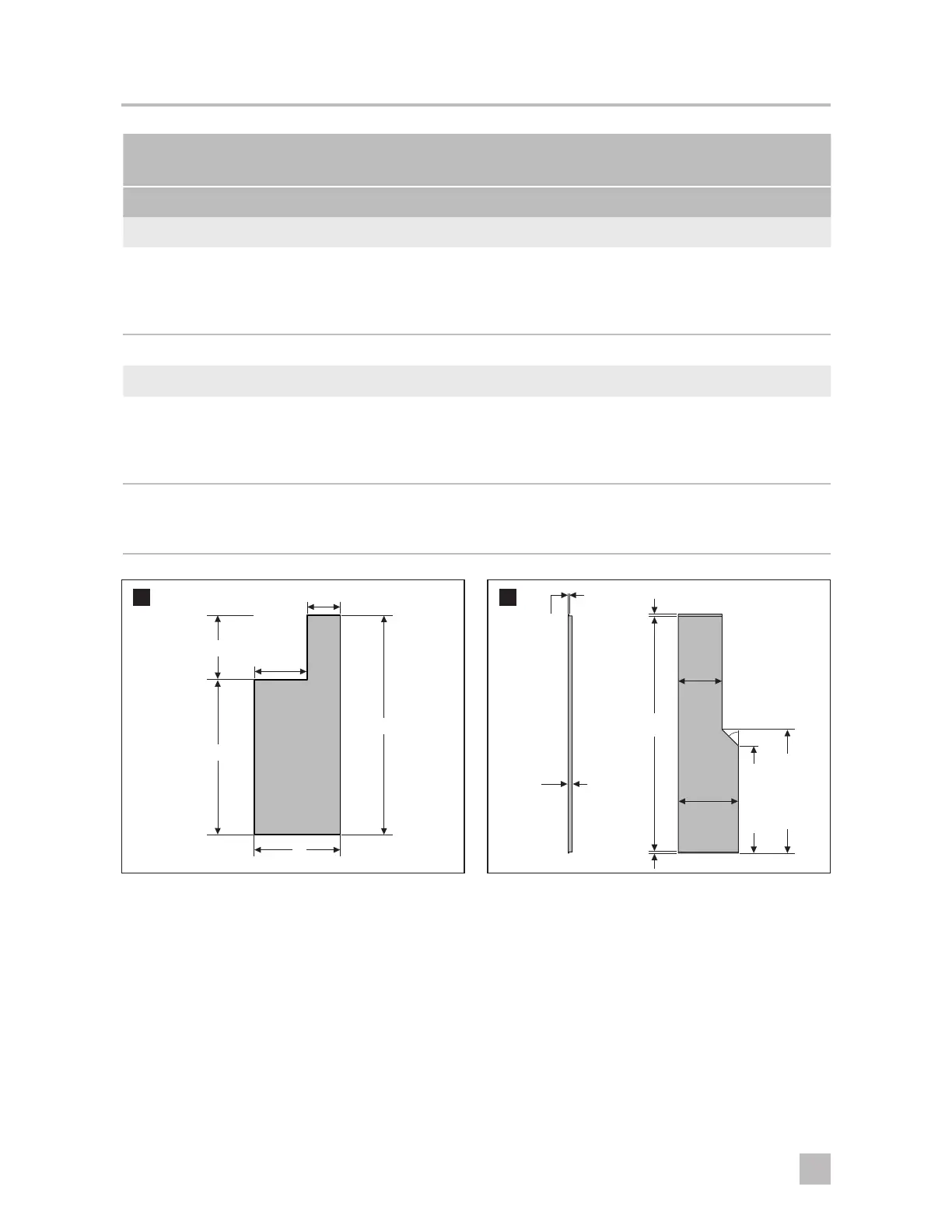

PANEL DIMENSIONS (MAX. THICKNESS 5/32")
Model Height Max. Height Min. Width Max. Width Min.
UPPER DOOR
RM1350M
RM1350SLM
RM1350MIM
RM1350WIM
RM1350WID (le)
19-7/32" 19-9/64" 15-43/64" 15-19/32"
RM1350WID (right) 9-9/32" 9-13/64" 15-43/64" 15-19/32"
LOWER DOOR
RM1350M
RM1350SLM
RM1350MIM
RM1350WIM (right)
RM1350WID
40-1/32" 39-31/32" 15-43/64" 15-19/32"
RM1350WIM (le)
A: 5-63/64"
C: 11-55/64"
E: 15-43/64"
A: 5-29/32"
C: 11-49/64"
E: 15-9/32"
B: 9-49/64"
D: 28-17/64"
F: 40-1/32"
B: 9-11/16"
D: 28-3/16"
F: 39-31/32"
2
A
C
D
F
B
E
in. (mm)
3
0.197(2x)
(5)(2x)
.295 (7.5)
Max. 1.00
(Max. 25)
45°
15.237
(387)
59.842
(1520)
27.224 (691.5)
(31.279 (794.5))
11.181
(284)
+.197 +5
.394 - .098 (10-2.5)
