Americana and New Generation Refrigerators Service Procedures
8.29 Testing the Relay for Continuity
(RM1350 Model Only)

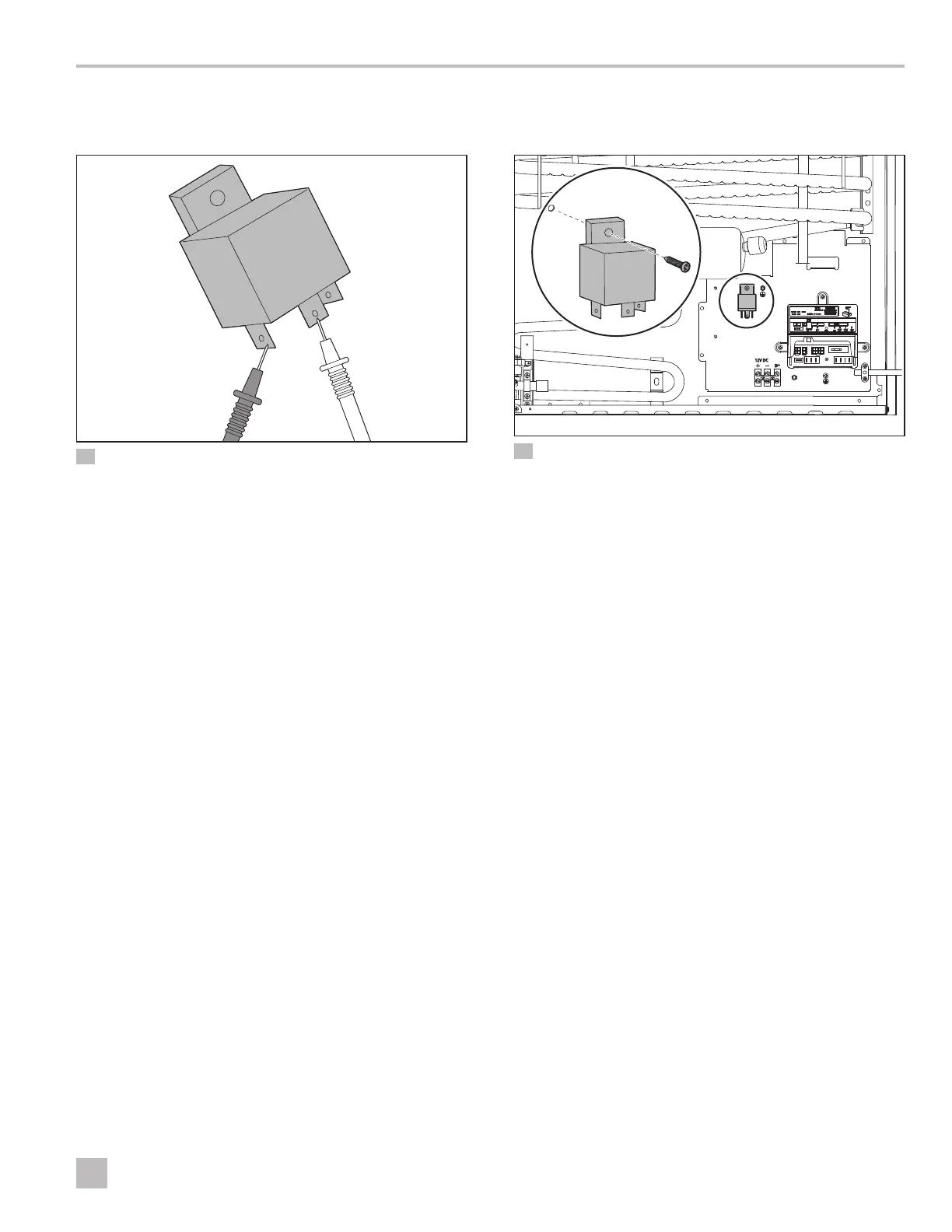

29 Testing the Relay
q
Terminals
1. Perform the steps in “Replacing the Relay (RM1350
Model Only)” on page 43 to access the relay.
2. Attach the leads of the multi-meter to terminal 85 and
the chassis ground.
The reading should show no continuity. If it shows
continuity, it indicates a short to ground.
3. Attach the leads of the multi-meter to terminal 30 and
terminal 87.
The reading should show continuity. If it shows no
continuity, it indicates a faulty relay.
I
Consult the operating manual for the multi-meter
for specific device function.
8.30 Replacing the Relay (RM1350
Model Only)
30 Removing the Relay from the Refrigerator
q
Relay
w
Screw
1. Disconnect the unit from all power sources (120VAC
and 12VDC).
2. Disconnect the wiring from the relay. Make note of
where the wires connect.
3. Remove the screw securing the relay to the
refrigerator wall.
4. Remove the defective relay.
5. Perform these steps in reverse with the new relay to
complete the replacement.
