EN
2 Return air grille 5 Bulkhead
3 Airflow
Choose a location with sufficient airflow. The return air grille should have a minimum of 4.0 in (4.00 cm) (4.0 in (102.0 mm)) of air
circulation clearance in front of it, free from any obstruction.
If the air conditioner is positioned perpendicular to the return air grille, maintain a minimum of 3.0 in (3.00 cm) (3.0 in (76.0 mm))
air circulation clearance on the air intake side.
Voyager only. Provide a minimum open area of 3.0 in (76.0 mm) above and below the heat sink.
7.2 Rotating the blower
This section explains how to rotate the blower for each unit type. If needed, rotate the blower to the direction that allows the
most direct airflow discharge through the ducting.
7.2.1 Turbo and Voyager blowers

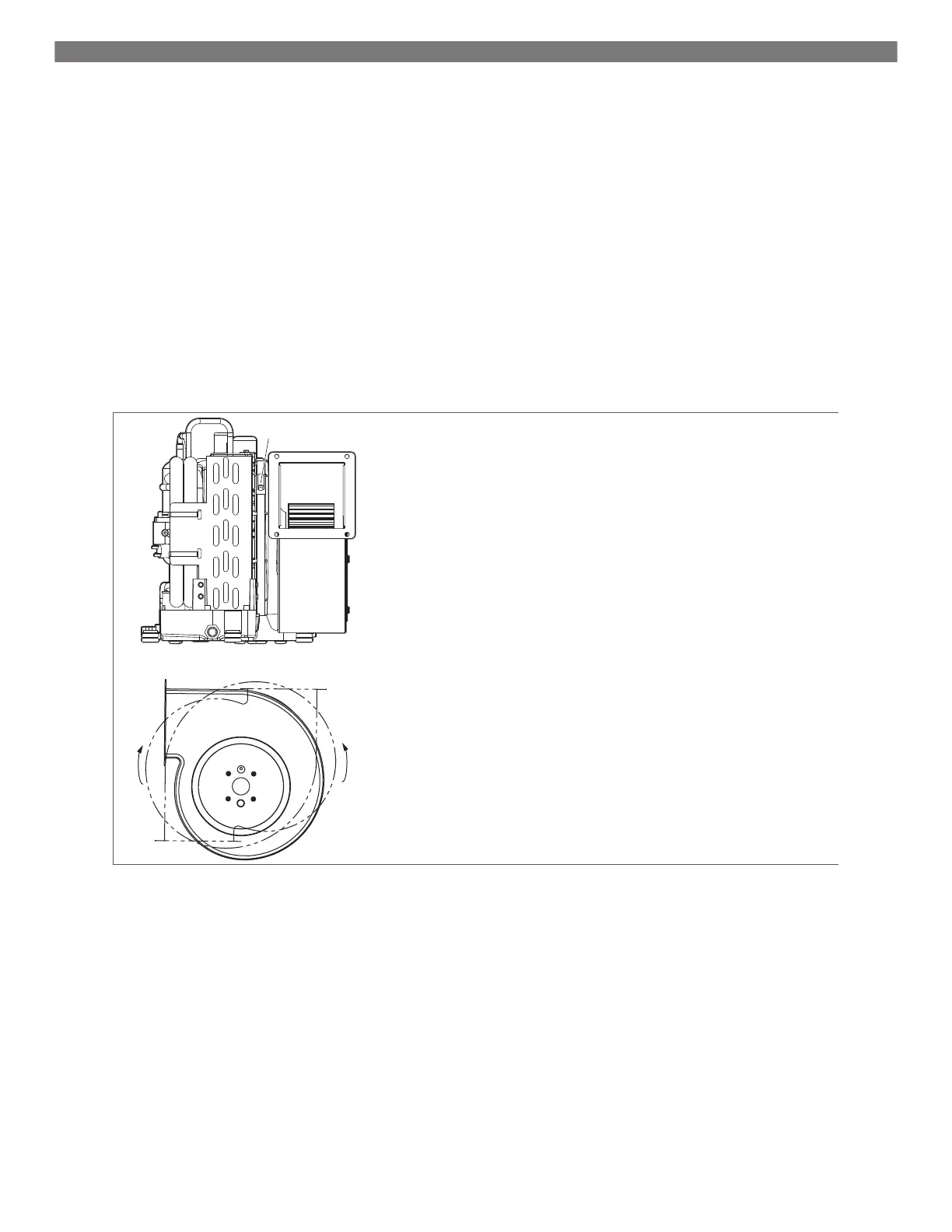

Turbo and Voyager system blower rotation -
4
1 Adjustment screw 2 Blower
1. Loosen the adjustment screw on the blower mount ring.
2. Rotate the blower to the desired position.
3. Tighten the adjustment screw.
7.2.2 EnviroCool, MCS, and ECD blowers
EnviroCool, MCS, and ECD system blower rotation -
8
