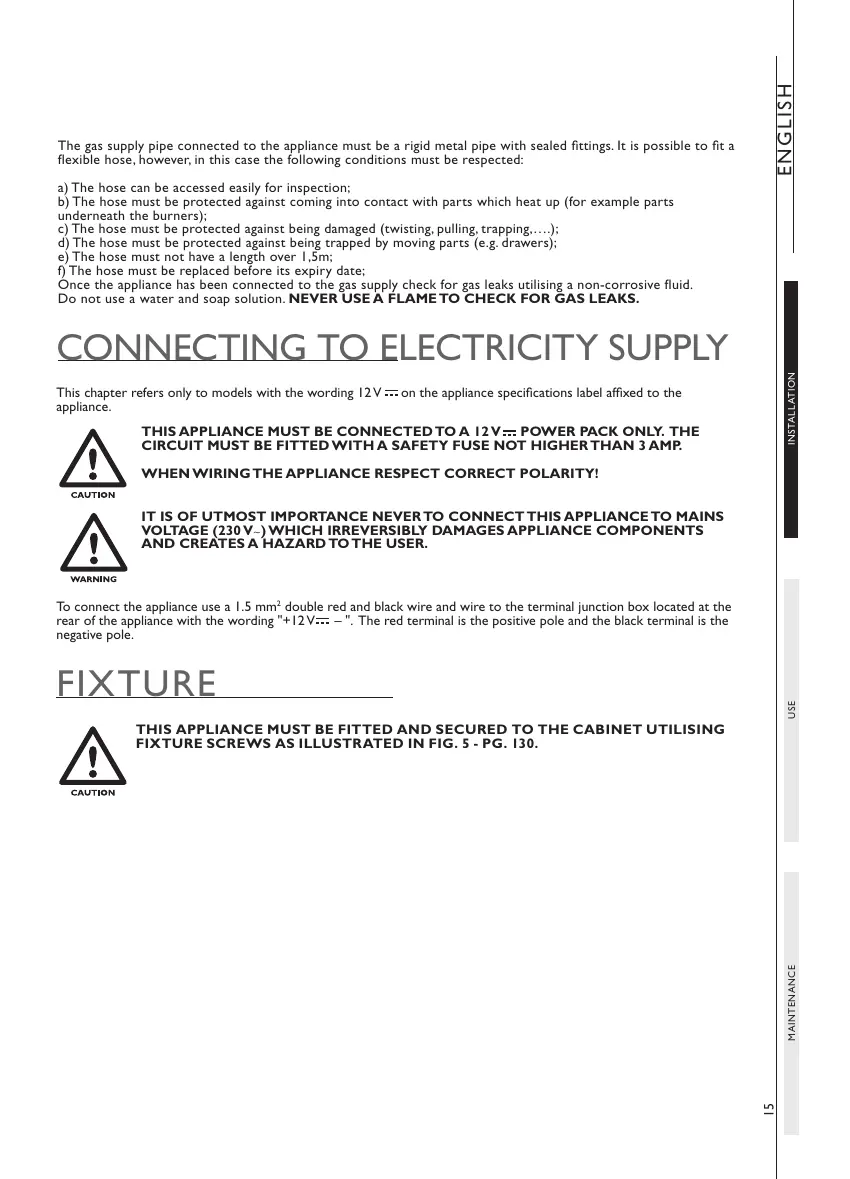

The gas supply pipe connected to the appliance must be a rigid metal pipe with sealed fittings. It is possible to fit a
flexible hose, however, in this case the following conditions must be respected:
a) The hose can be accessed easily for inspection;
b) The hose must be protected against coming into contact with parts which heat up (for example parts
underneath the burners);
c) The hose must be protected against being damaged (twisting, pulling, trapping,….);
d) The hose must be protected against being trapped by moving parts (e.g. drawers);
e) The hose must not have a length over 1,5m;
f) The hose must be replaced before its expiry date;
Once the appliance has been connected to the gas supply check for gas leaks utilising a non-corrosive fluid.
Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS.
15
USEMAINTENANCE
ENGLISH
INSTALLATION
FIXTURE
THIS APPLIANCE MUST BE FITTED AND SECURED TO THE CABINET UTILISING
FIXTURE SCREWS AS ILLUSTRATED IN FIG. 5 - PG. 130.
CONNECTING TO ELECTRICITY SUPPLY
THIS APPLIANCE MUST BE CONNECTED TO A 12 V POWER PACK ONLY. THE
CIRCUIT MUST BE FITTED WITH A SAFETY FUSE NOT HIGHER THAN 3 AMP.
WHEN WIRING THE APPLIANCE RESPECT CORRECT POLARITY!
IT IS OF UTMOST IMPORTANCE NEVER TO CONNECT THIS APPLIANCE TO MAINS
VOLTAGE (230 V) WHICH IRREVERSIBLY DAMAGES APPLIANCE COMPONENTS
AND CREATES A HAZARD TO THE USER.
This chapter refers only to models with the wording 12 V on the appliance specifications label affixed to the
appliance.
To connect the appliance use a 1.5 mm
2
double red and black wire and wire to the terminal junction box located at the
rear of the appliance with the wording "+12 V – ". The red terminal is the positive pole and the black terminal is the
negative pole.
COD 42 REV 4 CE - DOMETIC.indd 15 22/04/14 16.13
