CCF-T Refrigerator Preinstallation
q
r
w
e

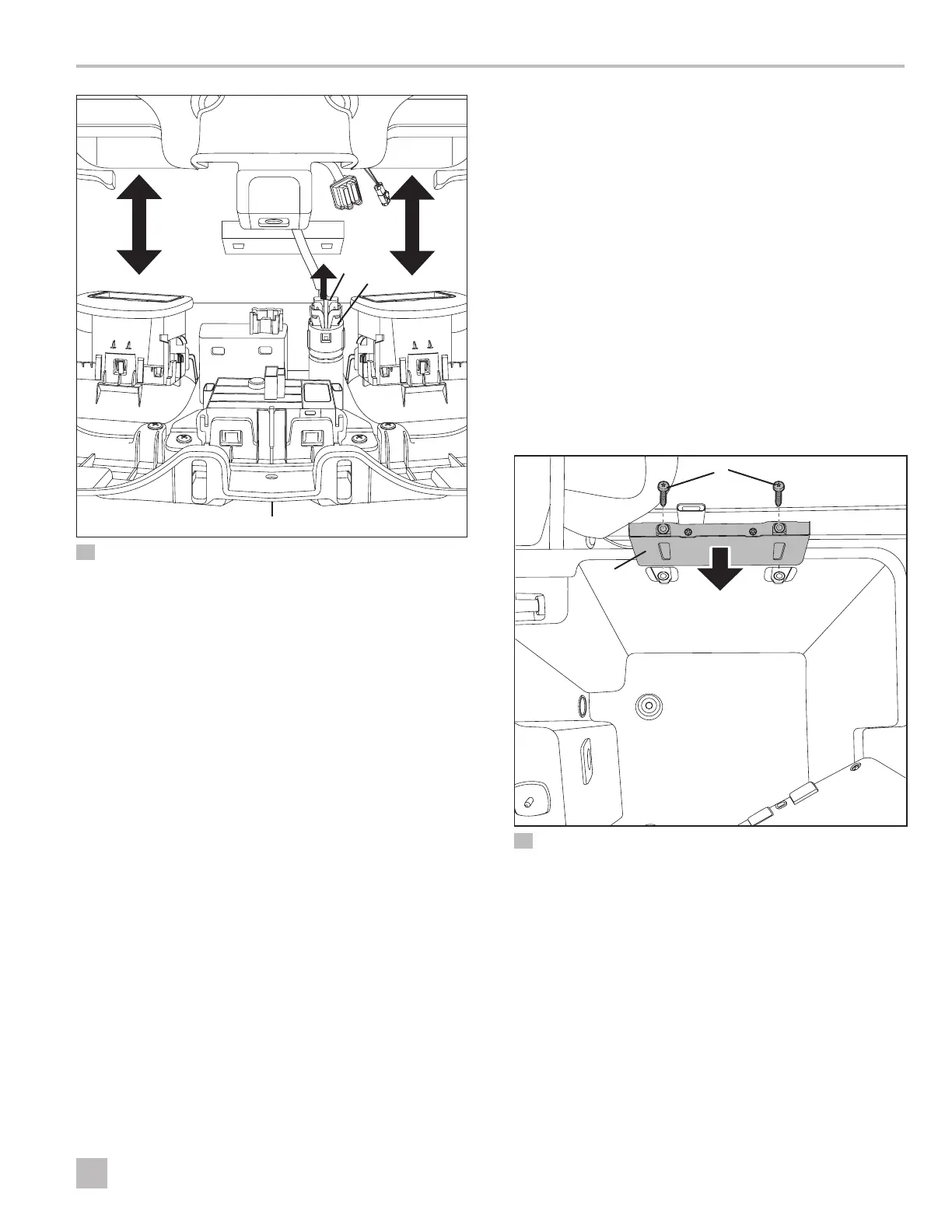

7 Removing the Electrical Connections
q
Center Console
e
12 V Rear Power
Connector
w
12 V Rear Power
Connector Red Tab
r
Console Back Panel
3. Remove the red tab from the 12 V rear power
connector.
4. Disconnect the 12 V rear power connector from the
console back panel.
5. Disconnect all remaining electrical connections from
the console back panel, and set the console back
panel aside.
6.4 Testing the Refrigerator
I
The console lid should remain open during the pre-
installation and installation procedures.
1. Place the refrigerator unit upright on the floor, near
the rear of the console (second row area).
2. Insert the vehicle’s 12 V rear power connector into
the refrigerator unit’s 12 VDC power cord plug.
3. Start the vehicle engine.
4. Confirm the blue LED is illuminated on the
refrigerator unit’s ON/OFF button. If not, press and
hold the button for one second, and then release.
5. Listen for the condenser fan to start. See
“Troubleshooting” on page15 if the condenser
fan does not start.
6. Turn the vehicle engine OFF.
7. Press and hold the ON/OFF button to turn the
refrigerator unit OFF.
8. Unplug the 12 VDC power cord.
9. Set the refrigerator unit away from the console.
6.5 Replacing the Side Brackets
q
w
e
8 Replacing the Side Brackets
q
Side Bracket
e
Console Bin
w
Screws
1. Open the console bin to locate the side brackets.
2. Use a T20 Torx screwdriver to loosen and remove the
screws from each side bracket.
I
Retain the screws.
3. Remove the existing side brackets.
I
Retain the side brackets.
