Dometic P062 - Page 7

7
EN
Magnetic-Drive Centrifugal Pump Installation
5.2.1 P030 Model
Use the following instructions to rotate the pump head
on the P030 model.
q
w

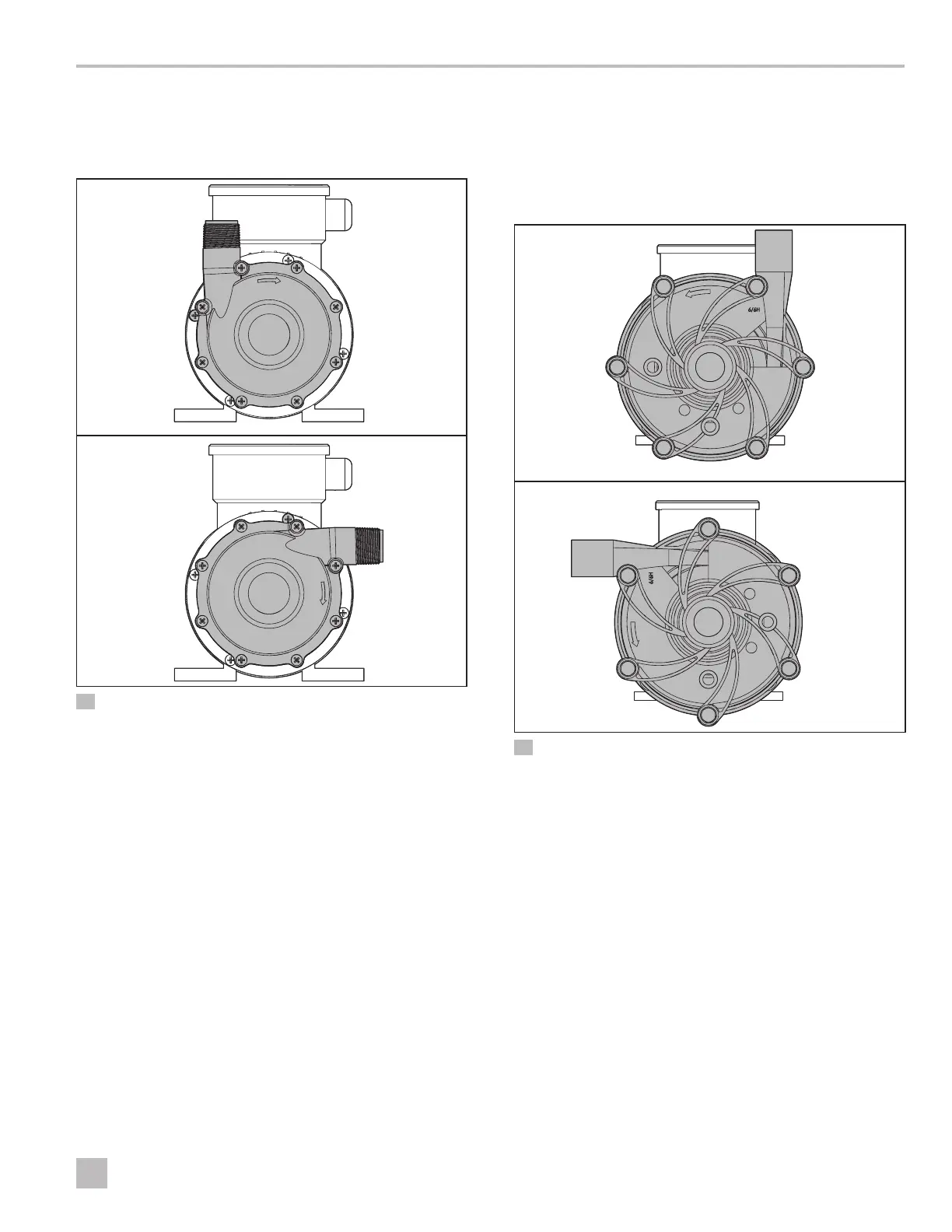

2 P030 Discharge Orientations
q
Vertical Discharge
w
Horizontal Discharge
1. Place the motor in an upright position, resting on the
fan end of the motor.
2. Remove the eight screws from the pump housing.
3. Pull the housing away from the motor adapter/
barrier.
4. Rotate the housing 90
°
, aligning the screw holes on
the housing and motor adapter/barrier.
5. Push down on the housing to seat it on the motor
adapter/barrier.
6. Reinstall the screws.
5.2.2 P045, P062, P075, P100, P137,
P150, and P200 Models
Use the following instructions to rotate the pump head
on the P045, P062, P075, P100, P137, P150, and P200
models.
q
w
3 P045, P062, P075, P100, P137, P150, and P200 Discharge
Orientations
q
Vertical Discharge
w
Horizontal Discharge
1. Remove the four clamp ring bolts, lock washers, and
flat washers.
2. Rotate the clamp ring 90
°
, aligning the holes on the
clamp ring and motor adapter/barrier.
3. Reinstall the clamp ring bolts, lock washers, and flat
washers.
