Dometic RM 2355 - Installation Instructions (Continued); Connecting Points and Dimensions

9
CONNECTING POINTS

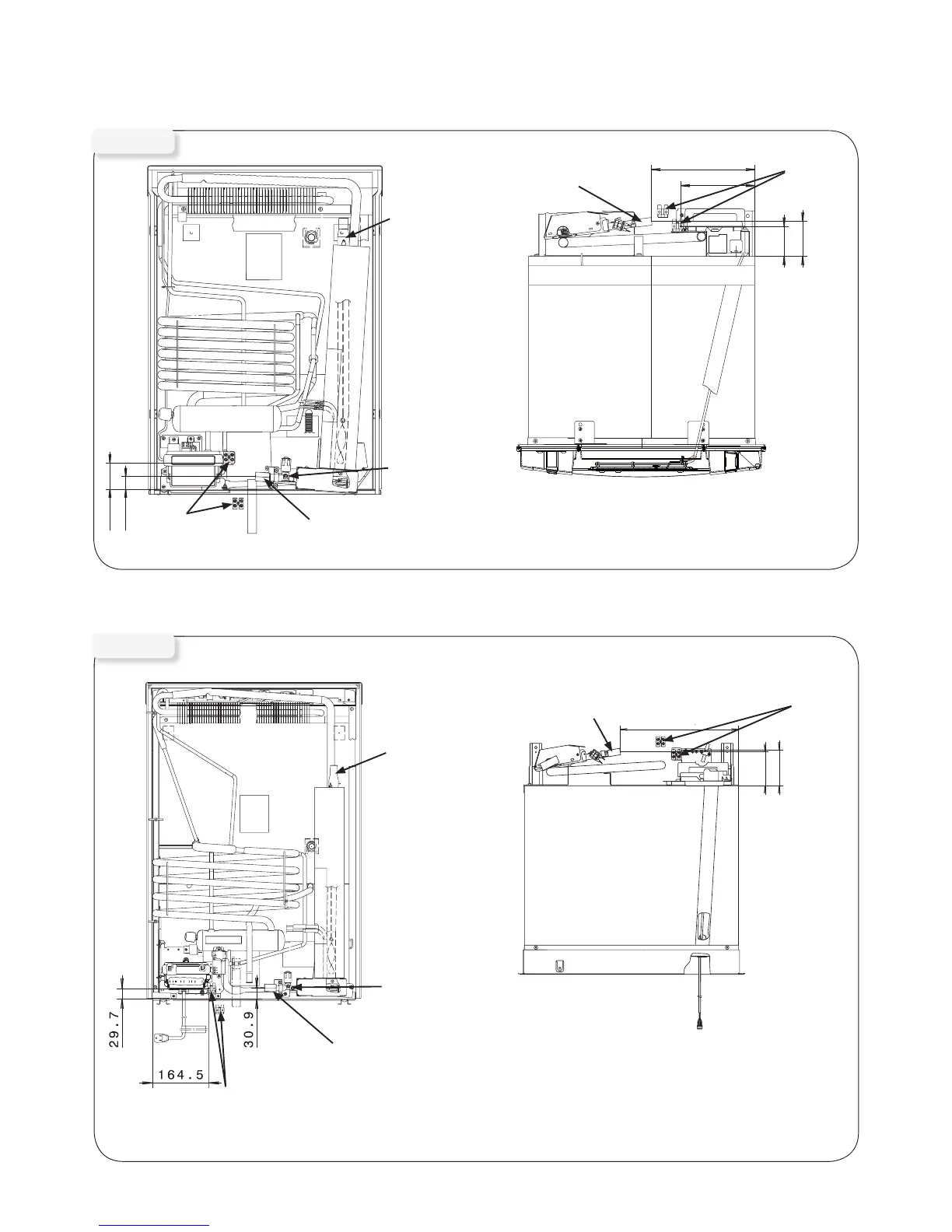

Dimensions to connecting points (mm).
Electrical
connection
point
Gas
connection
point
Gas
pressure test
point
Flue outlet
Gas
connection
point
Electrical
connection
point
RM 2355
Electrical
connection
point
Gas
connection
point
Electrical
connection
point
Gas
connection
point
Gas
pressure test
point
Flue outlet
RM 2455
61.2
29.5
232
166.1
66
77
327.4
90.6 95.3
