Wiring Diagrams Manual Refrigerator
5 Wiring Diagrams
This section provides the wiring specification for the
RM2193 refrigerator.

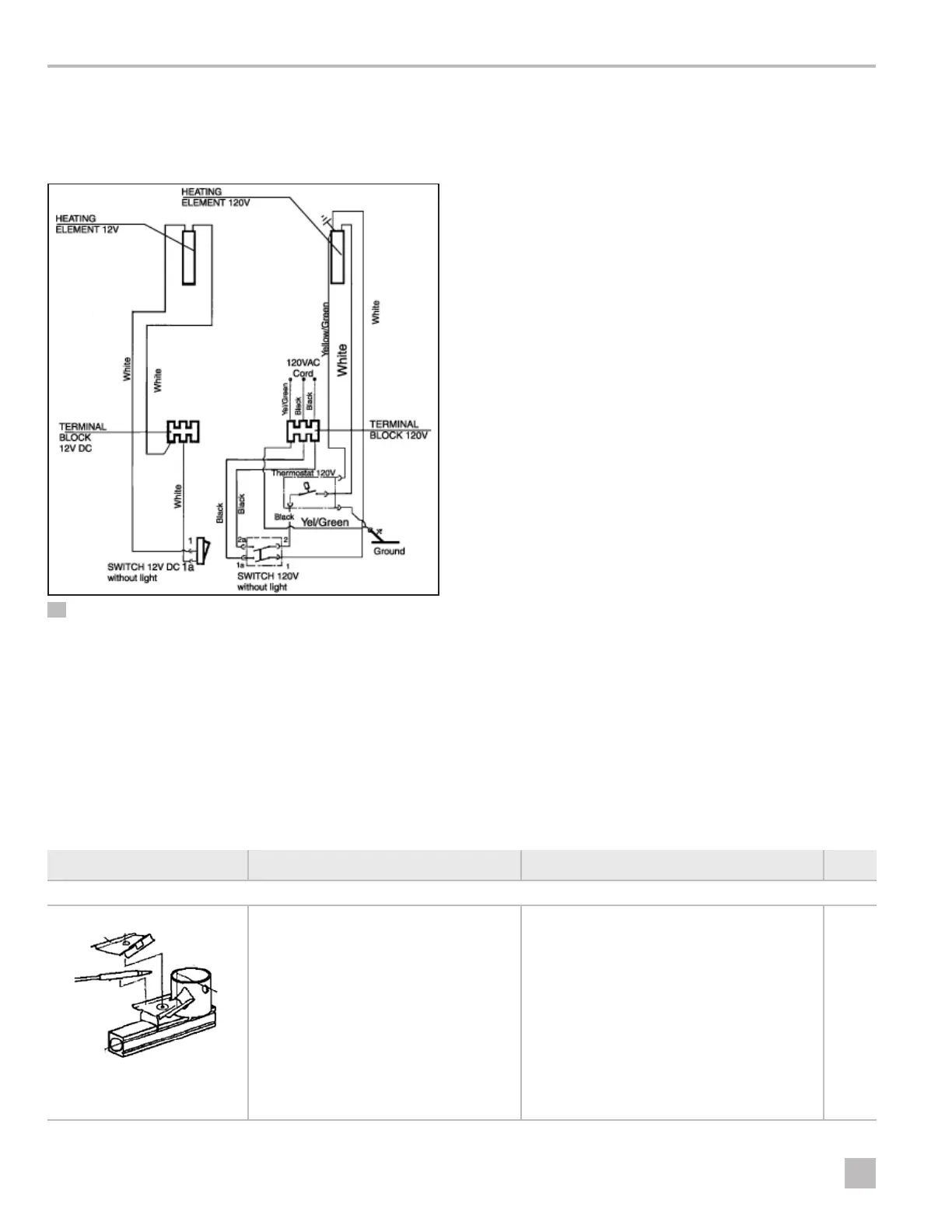

2 RM2193 Wiring Diagram
6 Diagnostic Procedures
This section has information to help you identify
various operational issues by diagnosing the individual
component parts.
Remember to check the basics, including contributing
issues, before replacing any parts. Refer to “Installation
Issues” on page 13 for more detail.
Component Diagnostic Question Action Based On Status Page
Burner Assembly
Does the refrigerator not operate in gas
mode?
Does the refrigerator not get cold
enough in gas mode but does in AC or
DC mode?
1. Inspect the burner and the area around
the burner for blockages. Clear any
blockages.
2. Inspect the burner slots for clogs. Clean
any that are clogged.
7
3. Clean the burner jet.
4. Turn on the refrigerator in gas mode.
5. Confirm that the flame from the burner is
blue and steady.
16
6. If the burner cannot be unclogged or if it
appears damaged, replace the burner.
15
