Check that the panel dimensions are in compliance with those
given in the following table:
We recommend that the panel is mounted before the refrigera-
tor is installed in the enclosure. The lower decoration strip and
parts bag are taped inside the door.
To mount the door panel, follow these steps:
Slide the panel from the bottom of the door into 1.
the grooves on the vertical edges of the door.
Push the panel upwards. Take the two plastic panel 2.
stops from the parts bag and put them in the two
holes at the lower door frame.
Put the decoration strip across the door and fasten 3.
with the screws from the parts bag.
Dimensions (mm)
(Thickness max 4 mm)
Height Width
666±1 497±1

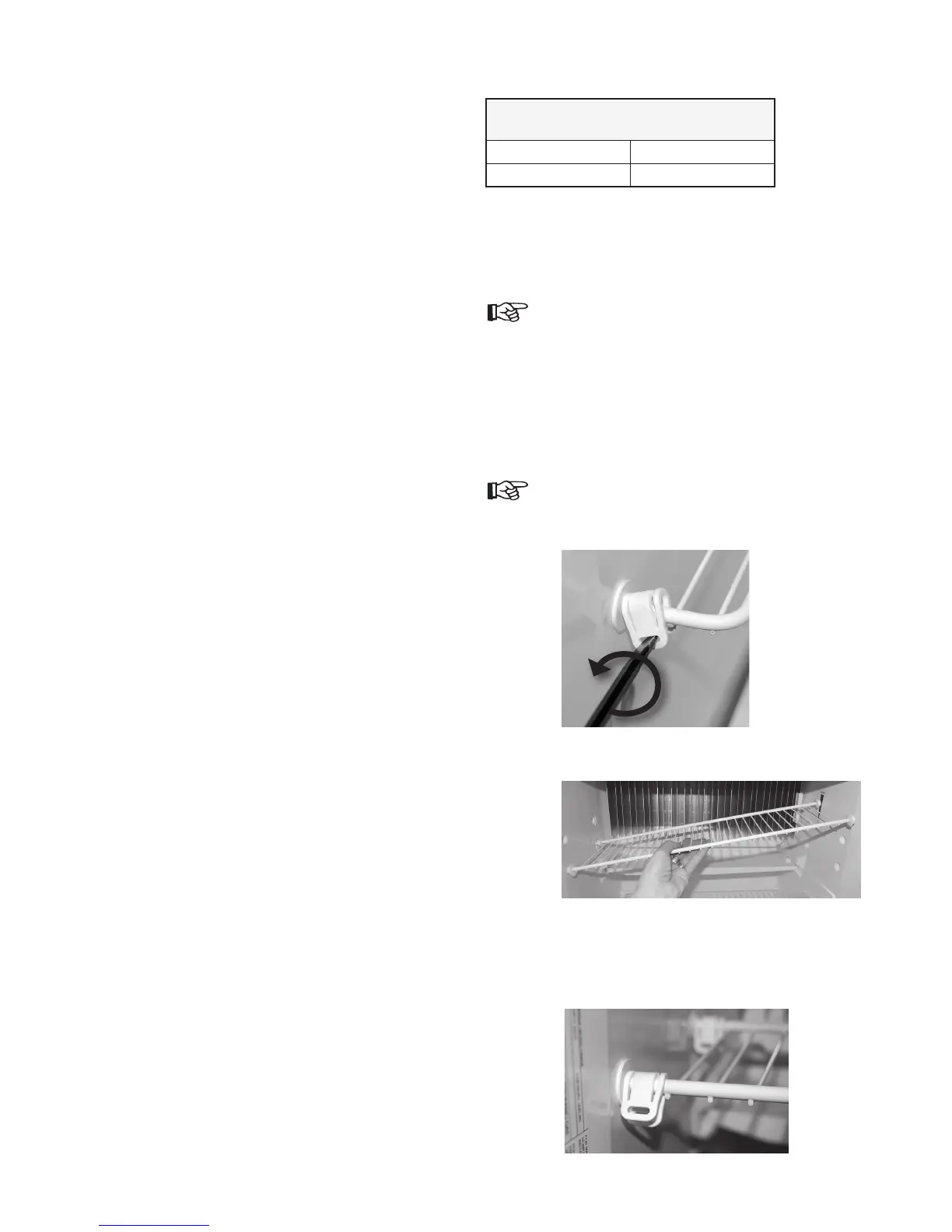

REMOVING AND REPLACING THE SHELVES
Remove the shelf locks by inserting the tip of a flat 1.
bladed screwdriver into the slot of the locks. Turn
the screwdriver counterclockwise and then remove
the shelf locks from the wire shelf.
Tilt the shelf to one side at an angle while pulling 2.
forward.
Reposition the shelf in the desired location. Insert 3.
the ends of the wire shelf on the left-hand side and
slide the shelf into the holes on the right-hand side.
Slide the plastic plugs into the holes of the wall. 4.
Snap the shelf locks onto the wire shelf.5.
Cross-sections
The wires connected to this terminal must have the following
minimum cross section area:
RM2355/RM2455/RM2555•
Maximum length of 8 metres from refrigerator to the battery.
6 mm
2
cross-section low voltage multi strand cable.
RM4605/RM4805•
Maximum length of 8 meters from refrigerator to the battery.
10 mm
2
cross-section low voltage multi strand cable.
Cable lengths > 8 meters will require a larger cross-sectional
cable.
CONNECTION MARKED “ConneCt to permanent 12 Volt
DC house battery” (RM2355/RM2455/RM2555) - OR -
“12V DC house” (RM4605/RM4805)
This connection supplies the AES refrigerator control system
and must not be interrupted at any time whilst using the refrig-
erator on 240 volt, gas, and 12 volt. This is a permanent 12 volt
connection.
The (+12V) and (-) poles have to be connected directly to the
permanent 12V DC house battery. Do not use the chassis for
the return lead.
The 12V supply must not be connected to a voltage controller
or similar device as the AES control system itself monitors the
DC voltage.
The +12V must be permanently attached and must not be cut
out when the ignition key is turned off. All connections should
be screwed or soldered to keep voltage drop to a minimum.
Cross-sections
The wires connected to this terminal must have a minimum
cross-section area of 1.5 mm
2
.
D+ CONNECTION
The connection D+ (alternator) has to be connected to the cor-
responding outlet of the vehicles electrical system - either a
12V or a 24V DC alternator. The D+ connection accepts
24V. Please note that the refrigerator accepts 12V only. Do not
connect the refrigerator to 24V!
This connection provides a signal to the refrigerators AES
control system informing the control system when the vehicle
engine is running.
The AES refrigerator can not select 12V as the energy source
unless the vehicle engine is running.
Cross-sections
The D+ (alternator) is a signal cable and therefore 1-1.5 mm
2
is
sufficient.
MOUNTING INSTRUCTIONS
REPOSITIONING THE HINGES
The refrigerator is equipped with reversible doors. A special
door reversing kit must be used to reverse the doors. For further
information, please contact your dealer.
MOUNTING THE DOOR PANEL (RM2355)
Door panels for RM2355 must be supplied by the manufactur-
er. This enables the manufacturer to match the door panel with
the rest of the cabinetry inside the motor home or caravan.
Before starting the mounting work, read the instructions thor-
oughly.
